Measuring Tools

Precision measuring tools from LittleMachineShop.com

LittleMachineShop.com has the measuring tools you need for your shop. We carry calipers, micrometers, steel rules, wigglers, edge finders, center gages, screw pitch gages, and more.

3103 Angle Gage Set

Set of 18 angle gages
5° to 90° by 5° increments
Satin chrome finish
Eight gaging surfaces on each gage
Check primary angle, 1/2 primary and complementary angles

The angle gage set is furnished in a vinyl case for storage.

2975 Batteries (10), LR44 Alkaline
This is a card of 10 LR 44 batteries.
These LR44 alkaline batteries fit most electronic digital calipers.
11.6 mm diameter, 5.4 mm thick.
1.50 volts (nominal), 105 mAh.
These batteries interchange with AG13, D357, 357, A76, LR44W, CX44, SR44.

1707 Battery, LR44 Alkaline
These LR44 alkaline batteries fit most electronic digital calipers.
11.6 mm diameter, 5.4 mm thick.
1.50 volts (nominal), 105 mAh.
These batteries interchange with AG13, D357, 357, A76, LR44W, CX44, SR44.

2976 Battery, SR44 Silver Oxide
These LR44 silver oxide batteries fit most electronic digital calipers.
11.6 mm diameter, 5.4 mm thick.
1.55 volts (nominal), 190 mAh.
These batteries interchange with AG13, D357, 357, A76, LR44W, CX44, SR44.

3708 Bore Gage Set, 2" - 6" Dial

Measure ID of holes from 2" to 6" in diameter
Close tolerance measurement of ID, taper and roundness
Furnished with AGD Group II dial indicator
Accuracy: 0.0005"
Includes fitted case and interchangeable anvils

This dial bore gage is easy to calibrate with a ring gage or micrometer.

3618 Caliper, 6" Inside Spring

Easy Adjustment Over Entire Range
Centrally Located Adjustment Screw
Balanced Legs, Uniform Tension
Polished Natural Steel Finish

3617 Caliper, 6" Outside Spring

Easy Adjustment Over Entire Range
Centrally Located Adjustment Screw
Balanced Legs, Uniform Tension
Polished Natural Steel Finish

2654 Case for Precision Machinist's Level, 12" Starrett

Case for Starrett 98-12 level
Starrett catalog number 98ZZ-12

Wooden case for Starrett 98-12 12" precision machinist's level.

2747 Center Finder, Drill Press PEC

Accurately and quickly locates center on cylindrical workpieces
Satin chrome finish
Place tool in drill chuck or collet and line up pointer with line scribed on shaft
3/8" diameter shank

Drill press center finder made in the US by Products Engineering Corporation (PEC).
The drill press center finder is a quick way to find the approximate center of cylindrical objects. Line the pointer up with the mark and the drill chuck is centered over the work.

2191 Center Gage Attachment, Starrett
Starrett center gage attachment.
Starrett catalog number 392.
This attachment is useful for holding Starrett center gages firmly against the lathe arbor or faceplate when setting both internal and external screw cutting tools. A slot containing a flat spring holds the gage and a V groove in the other side permits locating the attachment against the lathe arbor.
The center gage attachment is the black thing in the photo above.

2743 Center Gage, 60deg, PEC

Made of high quality steel
Satin chrome finish
Use for grinding and setting thread cutting tools
Gaging surfaces are precision ground

Center gage made in the US by Products Engineering Corporation (PEC).
Used for grinding and setting screw cutting tools. Scales with 14ths and 20ths graduations provided on one side, 24ths and 32nds on reverse side. Scales are used to determine number of threads per inch. Gage also features a table of double depths of thread for selecting size of tap drills. Made of hardened spring tempered steel, with a protective satin chrome finish. All gaging surfaces are precision ground.

1829 Center Gage, 60deg, Starrett

Starrett 60 degree center gage
Starrett catalog number C391
Extremely handy for use in grinding and setting thread cutting tools

These gages meet the following standards: American National or U.S. 60°, Whitworth or English 55°, and Metric 60°. They also have a very useful scale for finding the number of threads per inch through graduations in 14ths, 20ths, 24ths and 32nds of an inch. The gage also has a table of double depths of threads for determining size of tap drills.

2060 Coaxial Centering Indicator

Use this indicator to quickly center work pieces or fixtures on your mill
The indicator remains stationary while the spindle rotates
Can be used to center internal and external diameters
The locating accuracy is 0.0002" of center
Furnished in a fitted case

Use this indicator to quickly center work pieces or fixtures on your mill.
The measuring range is 0.25". The shank is 0.375" diameter and 0.75" long. The indicator is 5.5" long from the top of the shank to the bottom of the tip holder (the black part).
Can measure internal diameters from 0.12" to 4.25" and external diameters from zero to 4.25".
This set includes: Indicator body, restraining rod (prevents rotation), spring-loaded center point feeler, three straight feelers (for IDs), three curved feelers (for ODs).

2652 Collet Adapter for Edge Finders, Starrett

Starrett catalog number PT28314

This is a timesaving accessory for edge finders with a 3/8" shank.
The collet adapter allows quick installation and removal of the edge finder, eliminating the need for collet changes on Bridgeports and similar machines. It can be used with any attachment with a 3/8" shank.
The progressive steps are 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" and 1". Step depths vary from .100" to .200".

3626 Combination Square Set PEC 600 mm Metric

Combination square with 600 mm metric blade, square/miter head, protractor head, and center head
Includes extra 300 mm metric blade
Metric graduations, 1.0 mm & 0.5mm both sides of both blades
PEC catalog numbers 7128-600-H and 7188-300

Combination square made in the US by Products Engineering Corporation (PEC).

1250 Combination Square Set, 12"

12" combination square set
Includes square head, center head, and protractor head
Stainless steel blade with graduations of 8ths, 16ths, 32nds, and 64ths

This 4-Piece combination square set features a stainless steel blade, and includes a square head, a center head, and a protractor.

2738 Combination Square Set, PEC 12"

Combination square with 12" machinist's blade, square/miter head, protractor head, and center head
Easy to read satin chrome finish blade is fully hardened and tempered
4R graduations, 8ths & 16ths, 32nds & 64ths. Protractor graduated 0-180 degrees in both directions
Heads have hammertone powder-coat finish
Square/miter head includes level vial and hardened scribe tool

Combination square made in the US by Products Engineering Corporation (PEC).

3171 Combination Square Set, Starrett 12"

Starrett 12" combination square set
Starrett catalog number 9-12-4R
Includes square head, center head, and protractor head
Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths

The combination square set has reversible lock bolts, scriber, spirit level in both square head and protractor head, direct reading double 180° protractor scale, hardened steel, machine-divided blade. Cast iron heads with black wrinkle finish.
The blade is 1" wide and 3/32" thick.

1838 Combination Square Set, Starrett 12"

Starrett 12" combination square set
Includes square head, center head and reversible protractor head
Starrett catalog number 435-12-4R
Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths

3589 Combination Square Set, Starrett 12"

Starrett 12" combination square set
Includes square head, center head and protractor head
Starrett catalog number C435-12-4R
Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths

2656 Combination Square Set, Starrett 6"

Starrett 6" junior combination square set
Includes square head and center head
Starrett catalog number 33JHC-6-4R
Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths

Starrett catalog number 33JHC-6-4R.
Starrett 6" junior combination square set with square head and centering head and blade.
These squares are used by mechanics, toolmakers and patternmakers because of their compact, small size and light weight. Both blade and heads are smaller than on regular squares. Heads are drop forged, hardened steel and have smooth, black enamel finish.
The blade is 3/4" wide and 5/64" thick.

1839 Combination Square, Starrett 12"

Starrett 12" combination square with square head
Starrett catalog number 11H-12-4R
Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths

The square has a reversible lock bolt, scriber, spirit level, and hardened steel, machine-divided blade with regular finish. Cast iron head with black wrinkle finish.
The blade is 1" wide and 3/32" thick.

2451 Combination Square, Starrett 4"

Starrett 4" combination square with square head
Starrett catalog number 11H-4-4R
Graduation No. 4R- 8ths, 16ths, Quick Reading 32nds, 64ths

Starrett catalog number 11H-4-4R.
The square has a reversible lock bolt, scriber, spirit level, and hardened steel, machine-divided blade with regular finish. Cast iron head with black wrinkle finish.
The blade is 5/8" wide and 1/16" thick.

2882 Comparator Stand & Indicator

Fine vertical adjustment with lock
6" x 6" granite base flat within 0.0005"
1" Diameter column, 8" tall
Includes a 0-1" x 0.001" dial indicator

This granite dial gage comparator stand will accept any AGD 1, 2, 3, or 4 dial indicator.

3546 Depth Gage, Starrett 6" Combination

Starrett 6" combination gage, 32nds/64ths
Starrett catalog number 236
Combination depth gage and protractor

This depth gage has an added feature permitting its use as a protractor for measuring angles. It is a simple, handy tool that is a welcome addition to any machinist's tool box.
The head is graduated both left and right to 30, 45, and 60 degrees. The rule can be set to any of these angles by swinging the rule until the line on the turret coincides with the desired angle
Head is made of hardened steel, ground, and nicely polished – 2 5/8" (66mm) long and 1/8" (3mm) wide
One side of the base is cut out to permit easier and more accurate readings
The center of the head is recessed so that the tool will lay flat to permit more accurate measurements
A tempered rule that has been accurately machined divided, is smoothly fitted to the head and can be locked in position by a knurled nut

3547 Depth Gage, Starrett Steel Rule 0-6" Range, 32nds/64ths

Starrett steel rule depth gage, 0-6" range, 32nds/64ths
Starrett catalog number 237

These very handy depth gages can be used to quickly obtain measurements in 64th of an inch by simply adjusting the rule to the required depth.
The gage consists of a nicely finished, hardened steel head and an accurate, machine divided, tempered steel rule. The rule is Starrett No. 610N.
The gage can be smoothly adjusted to the required measurement and then locked into position by a knurled nut
The base is cut out on one side, adjacent to the rule, permitting easier readings and more accurate measurements

1235 Dial Caliper, 6"
This 6" Dial Caliper has clear graduations every 0.001". It is made of hardened stainless steel for long life. It has a thumb wheel and a locking screw. The measuring faces are hardened, ground and lapped. The bezel can be rotated 360°.
You can make inside, outside, depth and step measurements.
The dial caliper is furnished with a fitted case.

3704 Dial Caliper, 6" Professional Quality

Style and quality similar to Swiss-made calipers
Clear graduations every 0.001"
Hardened stainless steel bar, rack, gears, depth rod and measuring faces
Knife-edge contacts for both inside and outside measurements
Fine adjustment roller for one hand use

This 6" Dial Caliper is made of hardened stainless steel for long life. It has a thumb wheel and a locking screw. The measuring faces are hardened, ground and lapped. The bezel can be rotated 360°.
You can make inside, outside, depth and step measurements.
The dial caliper is furnished with a fitted case.

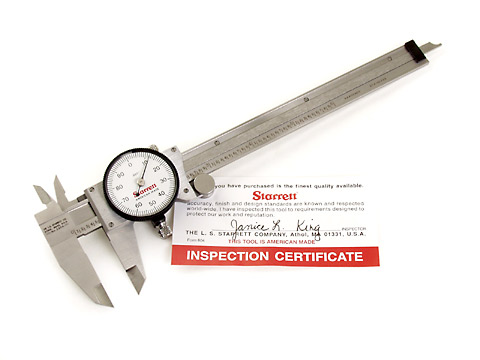

1830 Dial Caliper, 6”, Starrett

Starrett 6” white dial caliper and fitted case
Starrett catalog number 120A-6
The only American made dial caliper

This is one of the handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable, and accurate.

3166 Dial Caliper, 6”, Starrett

Starrett 6” white dial caliper and fitted case
Starrett catalog number 1202-6
Sharp, clear dial graduations of .001" with .100" per revolution
Sharp, black graduations on the satin finished bar, every .100"

This is one of the handiest measuring tools available, used by mechanics and toolmakers everywhere. It is direct reading, reliable, and accurate.
With the ability to provide quick, accurate measurement of O.D., I.D. and depth, the dial caliper is the most versatile precision hand tool on the market.
Imported

1593 Dial Indicator and Magnetic Base

0-1" Dial indicator
Magnetic base with fine adjustment
Permanent magnet has an 80 kg (176 lb) holding force
On/off switch makes it easy to position
V-groove base allows you to mount it on cylindrical surfaces

This 1" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.
The magnetic base indicator holder has a fine adjustment feature. The on/off switch makes it easy to position. The v-groove base allows you to mount it on cylindrical surfaces. The permanent magnet has an 80 kg (176 lb) holding force.

3716 Dial Indicator, 0.25" x 0.001" Small Face

0.25-1" dial indicator with 0.001" resolution
AGD Group I, 1.5" diameter dial face for tight locations
Rack & contact point made of hardened stainless steel
Jeweled movement

This 1/4" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.

2873 Dial Indicator, 1" x 0.0005"

0-1" dial indicator with 0.0005" resolution

This 1" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.050", indicated by the revolution counter. The resolution is 0.0005". There is a mounting lug on the back of the case.

1236 Dial Indicator, 1" x 0.001"

0-1" dial indicator with 0.001" resolution

3169 Dial indicator, 1" x 0.001" With Lever, Starrett

Range: 1.000"
Face diameter: 2-1/4"
Shockless, hardened steel gear train and jewel bearings
Lug on center of the back
Includes case stem cap and lever control

Starrett catalog numbers 25-441J WCSC and PT99356
These indicators have a shockless, hardened steel gear train and jewel bearings, except where noted. They are furnished with a lug-on-center back.
The lever control provides an easy way to lift the measuring point off the work.

3781 Dial Indicator, 1" x 0.001" with Point Set

0-1" dial indicator with 0.001" resolution
22 piece point set

This 1" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.
The point set includes 22 of the most popular points. All have #4-48 threads for use in AGD 1, 2, 3, and 4 indicators. It comes in a plastic box with a hinged lid.

1835 Dial Indicator, 1”, Starrett

Range: 1.000"
Face diameter: 2-1/4"
Graduations: 0.001"
Shockless, hardened steel gear train and jewel bearings
Lug on center of the back

Starrett catalog number 25-441J.
These indicators have a shockless, hardened steel gear train and jewel bearings, except where noted. They are furnished with a lug on the center of the back.

2726 Dial Indicator, 2" x 0.001"

0-2" dial indicator with 0.001" resolution

This 2" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.

1782 Dial Indicator, Magnetic Base & Point Set

0-1" dial indicator with 0.001" resolution
Magnetic base indicator holder with fine adjustment
22 piece indicator point set
All in a plastic case

This 1" stroke dial indicator features large, easy to read numbers and crisp graduations.
Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.
The magnetic base indicator holder has a fine adjustment feature. The on/off switch makes it easy to position. The v-groove base allows you to mount it on cylindrical surfaces.
Includes a 22 piece indicator point set and a plastic case.

1819 Dial Indicator, Starrett Last Word

Dial indicator with universal friction holder with shank
Graduation: 0.0005"
Range: 0.030"
Dial Reading: 0-15-0

Starrett catalog number 711LPSZ.
Steel Contact Point Length: 5/32" (4 mm)
Steel Contact Point Ball Diameter: 0.120" (3 mm)
These handy test indicators are among the most versatile available. Their small size and variety of attachments handle all jobs with ease and accuracy. A very useful feature is the shaded dial - when used with a mirror, such as in a jig bore application, the operator always knows where he is.

2925 Dial Indicator, Test Indicator, Magnetic Base & Point Set

0-1" dial indicator with 0.001" resolution
0-15-0 dial test indicator with 0.0005" resolution
Magnetic base indicator holder with fine adjustment
22 piece indicator point set
All in a plastic case

The 1" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.
The dial test indicator has 0.0005" graduations and a 7 jewel movement. Its range is 0.030" in either direction. Includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and an 0.080" diameter point.
The magnetic base indicator holder has a fine adjustment feature. The on/off switch makes it easy to position. The v-groove base allows you to mount it on cylindrical surfaces.
Includes a 22 piece indicator point set and a plastic case.

1249 Dial Test Indicator, 0-15-0 x 0.0005"

Dial test indicator with 0.0005" graduations
Range is 0.030" in either direction
Includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and an 0.080" diameter point
Dial test indicator comes in a fitted case
7 jewel movement

3522 Dial Test Indicator, 0-15-0 x 0.0005" and Universal Magnetic Base

Dial test indicator with 0.0005" graduations, range of 0.030" in either direction
Unique central locking mechanism on magnetic base locks all motion with one knob
Magnetic base has fine adjustment
Includes a fitted case

The dial test indicator features a 7 jewel movement. It includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and an 0.080" diameter point
This magnetic base is smaller than most; the base is 1.2" by 1.5". The maximum reach is 7". The on/off switch makes it easy to position, while the V-groove base allows you to mount it on cylindrical surfaces.
This magnetic base is the perfect size for mini lathes and mini mills. It accepts dial indicators with 3/8" stems and dial test indicators with dovetails.

3168 Dial test indicator, 0-15-0 x 0.001", Starrett

Starrett dial test indicator with attachments
Starrett catalog number 708ACZ
Range is 0.010" in either direction
Precision gear-driven design with smooth, jeweled movement
Dial test indicator comes in a fitted case

2875 Dial Test Indicator, 0-4-0 x 0.0001"

Dial test indicator with 0.0001" graduations
Range is 0.008" in either direction
Includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and an 0.080" diameter point
Dial test indicator comes in a fitted case
7 jewel movemen

3709 Dial Test Indicator, Interapid Style 0-15-0 x 0.0005"

Dial test indicator with 0.0005" graduations
Range is 0.030" in either direction
Includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and an 0.080" diameter point
Dial test indicator comes in a fitted case
Jeweled movement

This Swiss-type horizontal dial indicator has a large 1.5" dial.

3548 Dial Test Indicator, Starrett With Dovetail Mount, 0-5-0 x 0.0001"

Starrett dial test indicator with dovetail mount
Starrett catalog number 708AZ
Dial test indicator with 0.0001" graduations
Range is 0.010"

These precision test indicators were designed to be positioned for easy and accurate readability. The versatility of the angled head, combined with the three dovetail mounts eliminates the need for having both vertical and horizontal style test indicators. These are the features that make this series of test indicators superior to ordinary types.
Angled head for better reading position
Large 1 3/8" (35mm) dial diameter
Precision gear-driven design with smooth, jeweled movement
Meet or exceed ISO accuracy specification
For extreme accuracy we recommend positioning the lever contact so that it is approximately 15° from being horizontal with the workpiece.
Three dovetail positioning mounts work with existing test indicator accessories
Inch reading indicators are available with easy-to-read, shaded white, solid red, or solid black dials - millimeter reading indicators with solid yellow dials
Contact point reverses automatically, always maintaining clockwise hand rotation
Narrow body for inreach ability
Satin chrome finish for durability
Long carbide contacts 13/16" (20mm) are furnished as standard.
Contacts are frictionally adjustable and replaceable

2741 Double Square, PEC 6"

Double square with 6" blade
Easy to read satin chrome finish blade is fully hardened and tempered
4R graduations, 8ths & 16ths, 32nds & 64ths
Head has hammertone powder-coat finish

Double square made in the US by Products Engineering Corporation (PEC).

2025 Double Square, Starrett 6"

Starrett 6" double square with graduated blade
Starrett catalog number 13C
Popular with machinists, toolmakers, and patternmakers
The head is approximately 3-1/2" (90 mm) long
The faces are approximately 9/16" (14 mm) wide

The sliding blades are adjustable making it more practical for a wide variety of uses than a common square with fixed blade. The faces of the head are ground square, and the 6" (150 mm) size has a level.
The beveled blade and the drill grinding blade shown at the bottom of the photo are not included with this product.

3552 Drill Gage, Starret A-Z Drill Sizes

Starrett Standard Letter Size Drill Gage, A-Z range
Starrett catalog number 198

Letter size drills can be quickly and conveniently checked with this gage. Twenty-six holes are provided, giving corresponding drill sizes from "A" through "Z" with decimal equivalents from .234" diameter through .413" diameter.
The gage is approximately 5/64" thick by 2 5/16" wide and 6 1/4" long, is hardened and has a satin finish. Thoroughly tested after hardening.

3551 Drill Gage, Starrett Jobbers' 1/16-1/2"

Starrett Jobbers' Drill Gage, 1/16-1/2" Range
Starrett catalog number 187

Using this gage, the size of any twist drill from 1/16-1/2" by 64ths can be quickly determined. The gage has a total of 29 holes, each marked with the drill size in inches and the decimal equivalent. Gage is rigidly tested after hardening and has a black matte finish. Gage information is steel stamped on one side and white marked on the reverse side for quick, clear reading. Approximately 5/64" thick by 2 5/16" by 6 1/4" long.

3557 Drill Point Gage, Starrett

Starrett Drill Point Gage, 59° Bevel, 32nds Grad
Starrett catalog number 22C
The head is beveled to 59° (the correct drill point angle)
Graduated in 32nds along the 59° face for measuring the drill lips

This gage was designed specifically for use in drill grinding. It provides a quick, accurate way for determining the correct drill point angle of 59° and the correct length of drill lips necessary for clean-cut drilling at maximum feeds and speeds.
The sliding head may be adjusted to any position along the rule and locked by a thumb nut.
The head is beveled to 59° (the correct drill point angle), and is also graduated in 32nds along the 59° face for measuring the drill lips which should be of equal lengths.
The hook rule has accurate, machine-divided graduations in 8ths, 16ths, quick-reading 32nds and 64ths.
Hook is adjustable and can be shortened or extended on either side of the rule, and may also be removed if desired.
Tool can also be used as a Plain Rule, Hook Rule, Depth Gage, and Slide Caliper. The No. 22D Head-only will fit all steel rules 3/4" wide by 3/64" thick

1240 Edge and Center Finder
This 3/8" diameter combination edge and center finder helps you locate work on your mill.
The edge finder end has a 0.200" diameter cylinder to quickly find the edge of a work piece. The center finder end tapers to a point to locate holes.
The edge and center finder is hardened and ground all over.

1959 Edge and Center Finder, Fisher

Made in the USA by hungry machinists

This 3/8" diameter combination edge and center finder helps you locate work on your mill.
The edge finder end has a 0.200" diameter cylinder to quickly find the edge of a work piece. The center finder end tapers to a point to locate holes.
The edge and center finder is hardened and ground all over.
The edge and center finder is furnished with a quality vinyl case.
This is a quality American-made product from Fisher Machine Shop.

2606 Edge and Center Finder, Laser 1/2" Shank

1/2" shank fits collets and end mill holders
3.375" overall length
Uses common SR44 batteries (included)
Accuracy to 0.001"
Includes polarizing attachment to adjust dot size

The Laser Center/Edge Finder™ is a new tool for your mill that saves setup time. It eliminates the frustrations and doubts of using the century-old indirect method with a conventional edge finder or wiggler.
The Laser Center/Edge Finder projects a fine laser beam that directly indicates the edge of the workpiece. Move the beam to the edge of the work and set your dial to zero. It is that easy. No more calculating half the diameter of the edge finder.
You can also use the Laser Center/Edge Finder to locate scribed or center-punched locations. Simply move the laser beam to the location on the workpiece and the spindle is aligned.
The Laser Center/Edge Finder is easy to align so you can be sure it is always accurate.
The batteries last for over 3 hours of continuous operation. That's 6 months to a year of normal use.

2543 Edge and Center Finder, Laser 1/4" Shank

1/4" shank fits small mills
2.75" overall length
Uses common SR44 batteries (included)
Accuracy to 0.001"
Includes polarizing attachment to adjust dot size

2624 Edge and Center Finder, Laser 10 mm Shank

10 mm shank fits collets and end mill holders
3.375" overall length
Uses common SR44 batteries (included)
Accuracy to 0.001"
Includes polarizing attachment to adjust dot size

2604 Edge and Center Finder, Laser 3/8" Shank

3/8" shank fits collets and end mill holders
3.375" overall length
Uses common SR44 batteries (included)
Accuracy to 0.001"
Includes polarizing attachment to adjust dot size

2623 Edge and Center Finder, Laser 6 mm Shank

6 mm shank fits small mills
2.75" overall length
Uses common SR44 batteries (included)
Accuracy to 0.001"
Includes polarizing attachment to adjust dot size

1822 Edge and Center Finder, Starrett
Starrett double end edge and center finder.
Starrett catalog number 827B.
The body is 0.500” diameter. One end has a 0.200” diameter contact. The other end has a pointed contact.
Work surfaces may be located easily, quickly and accurately with these edge finders. Work with flat, straight edges, shoulders, grooves, round work, studs, dowels, or center points and scribed lines - all can be accurately located with this handy tool. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity.

2679 Edge and Center Finder, Wet Cabinet Laser 1/2"

1/2" shank fits collets and end mill holders
3.375" overall length
Uses common SR44 batteries (included)
Accuracy to 0.001"
Includes polarizing attachment to adjust dot size

The Laser Center/Edge Finder™ is a new tool for your mill that saves setup time. It eliminates the frustrations and doubts of using the century-old indirect method with a conventional edge finder or wiggler.
The vinyl boot and machined flange on this model create a water-proof seal. The boot slides over the Laser Center/Edge Finder so you can leave it in your cabinet CNC tool rack.
The Laser Center/Edge Finder projects a fine laser beam that directly indicates the edge of the workpiece. Move the beam to the edge of the work and set your dial to zero. It is that easy. No more calculating half the diameter of the edge finder.
You can also use the Laser Center/Edge Finder to locate scribed or center-punched locations. Simply move the laser beam to the location on the workpiece and the spindle is aligned.
The Laser Center/Edge Finder is easy to align so you can be sure it is always accurate.
The batteries last for over 3 hours of continuous operation. That's 6 months to a year of normal use.

1961 Edge Finder 1/4" Audible, Fisher

Made in the USA by hungry machinists

This 1/4" diameter edge finder helps you locate work on your mill. When you reach the edge of the work it not only jumps to the side, but it clicks too.
The edge finder has a 0.200" diameter cylinder to quickly find the edge of a work piece.
The edge finder is hardened and ground all over and is furnished with a quality vinyl case.
This is a quality American-made product from Fisher Machine Shop.

1960 Edge Finder 3/8" Audible, Fisher

Made in the USA by hungry machinists

This 3/8" diameter edge finder helps you locate work on your mill. When you reach the edge of the work it not only jumps to the side, but it clicks too.
The edge finder has a 0.200" diameter cylinder to quickly find the edge of a work piece.
The edge finder is hardened and ground all over and is furnished with a quality vinyl case.
This is a quality American-made product from Fisher Machine Shop.

3188 Edge Finder, Electronic

Lights up when it contacts the edge of the work
Repeatable to 0.0002"
Works on any conductive metal
Includes bulb and battery
Made in USA

This electronic edge finder has a 1/2" shank. It is 4" long overall.

1823 Edge Finder, Starrett
Starrett single end edge finder.
Starrett catalog number 827A.
The body is 0.375” diameter. The contact end is 0.200” diameter.
Work surfaces may be located easily, quickly and accurately with these edge finders. Work with flat, straight edges, shoulders, grooves, round work, studs, dowels, or center points and scribed lines - all can be accurately located with this handy tool. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity.

1776 Electronic Digital Caliper, 4"
This 4" electronic digital caliper is perfect for measuring the small parts we make. It fits into places, such as under the mini mill head, that a larger caliper won't.
It has manual power on and off. It won't go off and lose your measurement.
There are three buttons. One turns the power on and off. The second sets the readout to zero. The third button switches between inch and metric display.
You can make absolute or relative inside, outside, depth, and step measurements. You can set it to zero at any position.
Furnished with a fitted case.

3612 Electronic Digital Caliper, 4" Fractions

4" (100 mm) range
1/64", 0.0005", 0.01 mm resolution
1/64", 0.001", 0.02 mm accuracy
Displays fractions, inches, or mm
Great when working on small machines

This 4" electronic digital caliper has manual power on and off.
There are three buttons.
OFF/ON: Turns the power on and off.
ZERO: Sets the readout to zero at any position.
MM/INCH/FRAC: Switches between metric, decimal inch, and fractional inch display.
Furnished with a fitted case.

1758 Electronic Digital Caliper, 6"

6" (150 mm) range
0.0005" (0.01 mm) resolution
0.001" (0.02 mm) accuracy
Reads inches or mm
Four button model has display lock

This 6" electronic digital caliper has manual power on and off. It won't go off and lose your measurement.
There are four buttons (one more than most digital calipers).
OFF/ON: Turns the power on and off.
ZERO: Sets the readout to zero at any position.
MM/INCH: Switches between inch and metric display.
HOLD: Locks the display. Use this button when you take a measurement where you cannot easily see the display. Press HOLD again to unlock the display.
You can make absolute or relative inside, outside, depth, and step measurements.
Furnished with a fitted case.

2983 Electronic Digital Caliper, 6"

6" (150 mm) range
0.0005" (0.01 mm) resolution
0.001" (0.02 mm) accuracy
Reads inches or mm

This 6" electronic digital caliper has manual power on and off.
There are three buttons.
OFF: Turns the power off.
ON/ZERO: Turns the power on and sets the readout to zero at any position.
MM/INCH: Switches between inch and metric display.
You can make absolute or relative inside, outside, depth, and step measurements.
Furnished with a fitted case.

3630 Electronic Digital Caliper, 6" Fractions

6", 150 mm range
1/64", 0.0005", 0.01 mm resolution
1/64", 0.001", 0.02 mm accuracy
Reads fractions, inches or mm
Great for woodworkers

This 6" electronic digital caliper has manual power on and off.
There are three buttons.
OFF/ON: Turns the power on and off.
ZERO: Sets the readout to zero at any position.
MM/INCH/FRAC: Switches between fractional inch, decimal inch and metric display.
Some fractional calipers read to 1/128". That's too fine a measure for use with wood, which expands and contracts more than that. These calipers read to 1/64", which is precise enough, without the bother of figuring out if 97/128" is larger or smaller than 3/4".
Furnished with a fitted case.

3124 Electronic Digital Caliper, 6" Fractions

6", 150 mm range
1/64", 0.0005", 0.01 mm resolution
1/64", 0.001", 0.02 mm accuracy
Reads fractions, inches or mm. Great for woodworkers
PEC Brand

2874 Electronic Digital Caliper, 6" IP65 Stainless

6" (150 mm) range
0.0005" (0.01 mm) resolution
0.001" (0.02 mm) accuracy
Reads inches or mm
IP65 level of protection against coolant, water, dirt and dust

This 6" electronic digital caliper has a rugged stainless steel case to protect the electronics.
The caliper has two buttons. One turns on the power and sets the readout to zero. The second switches between inch and metric display. The caliper turns itself off after a period of inactivity. It maintains its setting when the power is off.
You can make absolute or relative inside, outside, depth, and step measurements. You can set it to zero at any position.
According to IEC529, in IP65 the first number "6" identifies protection against ingress of dust and the second number "5" identifies protection against water jets projected by a nozzle from any direction for a duration of 3 minutes.
Furnished with a fitted case.

2926 Electronic Digital Caliper, 6" Large Display

6" (150 mm) range
0.0005" (0.01 mm) resolution
0.001" (0.02 mm) accuracy
Reads inches or mm
Large display for easy reading

This 6" electronic digital caliper has manual power on and off. It won't go off and lose your measurement.
There are three buttons.
OFF/ON: Turns the power on and off.
ZERO: Sets the readout to zero at any position.
MM/INCH: Switches between inch and metric display.
Furnished with a fitted case.

3717 Electronic Digital Caliper, 6" Plastic

6" (150 mm) range
0.0001" (0.01 mm) resolution
0.005" (0.1 mm) accuracy
Reads inches or mm

This is a plastic digital caliper that is about 10 times as accurate as most. It is a useful measuring tool for all but the most critical measurements.

3187 Electronic Digital Caliper, 6" Poly Carbon Fiber

6" (150 mm) range
0.0005" (0.01 mm) resolution
0.005" (0.1 mm) accuracy
Reads inches or mm
Large display makes reading easy

This is a plastic digital caliper that is about 10 times as accurate as most. It is a useful measuring tool for all but the most critical measurements.
It is made of poly carbon fiber to stand the knocks of shop use.

3659 Electronic Digital Caliper, 6" Water Proof

IP67 level of protection against coolant, water, dirt and dust
6" (150 mm) range
Accuracy: 0.001" / 0.02 mm
Resolution: .0005" / .01 mm
Reads inches or mm

Hardened stainless steel construction features IP67 protection. IP67 specifies that the caliper be dust tight with no ingress of dust and complete protection against contact. It also specifics that ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water 1 m deep for 30 minutes.

2530 Electronic Digital Caliper, 6", Starrett 797

Large, easy-to-read LCD display
IP65 level of protection against coolant, water, dirt and dust
Hardened stainless steel measuring surface for long life
Fine adjustment for precision measurements
Resolution is .0005" (0.01 mm)

Starrett 6” electronic digital caliper resists coolant, water, dirt and dust.
Starrett catalog number 797B-6/150.
The Starrett 797 electronic caliper provides an IP65 level of protection against foreign matter in hostile shop environments. In addition to being coolant and water resistant, the 797 also offers excellent protection against chips, dirt, dust, and other contaminants. The extra large LCD (character height .310") makes the 797 exceptionally easy to read. All 797 models also include an output port for RS232 equipped devices. While there are other IP65 electronic calipers available, only the 797 is a Starrett - for a century and a quarter, the tool of choice for the most experienced toolmakers and machinists when the measurements are most critical.
According to IEC529, in IP65 the first number "6" identifies protection against ingress of dust and the second number "5" identifies protection against water jets projected by a nozzle from any direction for a duration of 3 minutes.
With this caliper you can set zero at any position, read inches or millimeters, and lock the slide in position.
There is a manual on/off button, plus the caliper turns itself off after four hours of inactivity.

2752 Electronic Digital Caliper, 6", Starrett 799

Large, easy-to-read LCD display can be zeroed at any position
Automatic shut-off after 5 minutes of nonuse, last measuring position retained when shut off
Hardened stainless steel body for long life
Fine adjustment thumb wheel
Resolution is .0005" (0.01mm) and linear accuracy meets DIN 862 standard

Starrett 6” electronic digital caliper
Starrett catalog number 799A-6/150
Starrett's 799 series electronic calipers are light, comfortable, easy to use, and constructed with features that have made Starrett slide calipers the machinist's first choice for many years. They have a slim, streamlined profile, function buttons for zero and inch/mm, a large, clear, easy-to-read LCD display, and long battery life. The 799 Calipers are furnished in a fitted, protective case.
Jaw Depths: 1 1/2" outside, 5/8" inside.

3707 Electronic Digital Caliper, 8"

8" (200 mm) range
0.0005" (0.01 mm) resolution
0.001" (0.02 mm) accuracy
Reads inches or mm

This 8" electronic digital caliper has manual power on and off.
There are three buttons.
OFF: Turns the power off.
ON/ZERO: Turns the power on and sets the readout to zero at any position.
MM/INCH: Switches between inch and metric display.
You can make absolute or relative inside, outside, depth, and step measurements.
Furnished with a fitted case.

2876 Electronic Digital Indicator, 0.5"

Measurement range is 0-0.5"
Resolution is 0.0005", accuracy is 0.0012"
Measures in inches or mm
Set to zero at any position

There are three buttons; OFF for power, ZERO/ON to zero the display, and IN/MM to switch between inches and millimeters. The indicator turns on automatically when the plunger moves.
Pressing ZERO/ON zeros the indicator at any position so you can make comparative readings between two parts.

3167 Electronic Digital Indicator, 0.5" Starrett

Starrett 0.5" digital electronic AGD Group 2 indicator
Starrett catalog number 3600-5
Range .500" (12.7mm)
Resolution .0005" (.01mm)
Reverse travel (± control indicates direction)

This electronic digital indicator features a large, easy to read LCD display.
You can set zero at any position and change the direciton that shows positive dimensions.
The indicator has a 3/8" shank and the tip thread is #4-48. The case has a mounting lug on the back.

2521 Electronic Digital Indicator, 1"

Measurement range is 0-1"
Resolution is 0.0005", accuracy is 0.0012"
Measures in inches or mm
Set to zero at any position
Relative and absolute measurement

There are three buttons; ON/OFF for power, RESET to zero the display, and R/A to switch between absolute and relative measurement.
Pressing R/A zeros the indicator at any position so you can make comparative readings between two parts. The absolute measurement is not lost, and is displayed by pressing R/A again.

3073 Electronic Indicator, Electronic Caliper, and Magnetic Base Set

0-1" Electronic digital Indicator, 0.001" resolution, 0.001" accuracy
0-6" Electronic digital caliper, 0.0005" resolution, 0.001" accuracy
Magnetic base with fine adjustment
Includes fitted case
PEC Tools brand

There are three buttons on the indicator and caliper; ON/OFF for power, ZERO to zero the display, and INCH/MM to switch between display of inches and mm.

3181 Height Gage, Digital 6" Starrett

Starrett 0-6" (0-150 mm) range digital height gage
Starrett catalog number 3751AZ-6/150
Easy-to-read LCD with .32" high characters
Linear Accuracy: ï¿½.001" (ï¿½ 0.03mm)
Resolution: .0005" (0.01mm)

Rounded nose scriber cuts clean, sharp lines
Easy-to-read LCD with .32" high characters
This digital height gage features Inch-millimeter conversion & zero at any position. It has a manual ON/OFF button but will also turn off automatically after 5 minutes of nonuse.
The stainless steel bar is hardened for long life. The scriber can reference zero from the base bottom.
It also has a slide lock & fine adjustment thumb roll, plus it features a hardened, ground, and lapped base.

2518 Inspection Kit, 6-Piece

1" Dial indicator, magnetic base and point set
0-30-0 Dial test indicator
0-1" micrometer
6" Dial caliper
Plastic case

This set includes all the basic precision measuring tools.
The micrometer has a range of 0-1" and a resolution of 0.0001". An adjustment wrench is included.
The dial caliper has a range of 0-6" and a resolution of 0.001".
The dial test indicator has a range of 0.030" in either direction and a resolution of 0.0005". It includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and an 0.080" diameter point.
The dial indicator has a range of 0-1" and a resolution of 0.001". Each revolution is 0.100", indicated by the revolution counter. There is a mounting lug on the back of the case.
The magnetic base has on on-off switch for the magnet and incorporates a fine adjustment feature.
The point set includes 22 of the most popular points. All have #4-48 threads for use in AGD 1,2,3, and 4 indicators.

2531 Magnetic Back for Dial Indicator

2.25" diameter to fit AGI Group II dial indictors
Magnetic back comes with screw-on indicator back
Strong permanent magnet

1237 Magnetic Base Indicator Holder

Magnetic base indicator holder with fine adjustment
Permanent magnet has an 60 kg (130 lb) holding force
On/off switch makes it easy to position
V-groove base allows you to mount it on cylindrical surfaces

This magnetic base indicator holder has a fine adjustment feature.
The on/off switch makes it easy to position. The V-groove base allows you to mount it on cylindrical surfaces. The permanent magnet has an 60 kg (130 lb) holding force.

2880 Magnetic Base Indicator Holder

Magnetic base indicator holder with one-knob lock
Permanent magnet has an 80 kg (176 lb) holding force
On/off switch makes it easy to position
V-groove base allows you to mount it on cylindrical surfaces

This magnetic base indicator holder locks all its joints when the knob is tightened.
The on/off switch makes it easy to position. The V-groove base allows you to mount it on cylindrical surfaces. The permanent magnet has an 80 kg (176 lb) holding force.
The lower arm is 110 mm long, the upper arm is 100 mm long.

2029 Magnetic Base Indicator Holder (Mini)

This magnetic base is smaller than most
Unique central locking mechanism locks all motion with one knob
On/off switch makes it easy to position
V-groove base allows you to mount it on cylindrical surfaces
Base is 1.2" by 1.5". Maximum reach 7".

This magnetic base is the perfect size for mini lathes and mini mills.
It accepts dial indicators with 3/8" stems and dial test indicators with dovetails.

3714 Magnetic Base Indicator Holder, Professional Quality

Z-Limit brand guarantees professional quality
Magnetic base indicator holder with fine adjustment
Permanent magnet has an 65 kg (145 lb) holding force
On/off switch makes it easy to position
V-groove base allows you to mount it on cylindrical surfaces

3549 Magnetic Base Indicator Holder, Starrett

Starrett Magnetic Base with Attachments
Starrett catalog number 657AA
Powerfull magnetic base holds firmly to steel and iron surfaces
Push button turns magnet on or off for quick, one-hand set-up

For use with all Starrett Test, Back-Plunger, AGD, Dial and Miniature-Dial Indicators. Also accommodates similar indicators of other manufacturers.
A. No. 657P Magnetic Base. 1 15/16 x 1 5/8 x 1 7/8" (50 x 40 x 48mm). Push-button on/off switch for one-hand operation. Base has three precision ground, magnetic contact points. Grips horizontally, vertically, and upside down. V-step holds base to arbors, shafts, etc. Base has extra 1/4-20 tapped hole on one side for mounting post. Black wrinkle finish on non-working surfaces.
B. No. 657G Upright Base Post. 3/8" (9.5mm) diameter x 7 7/16" (190mm) length overall. Starrett No. 57S and No. 58S Universal Snugs may also be used.
C. No. 657S Snug. Two 1/4" (6.3mm) diameter holes. Adapts Nos. 196, 650, and 651 Series Dial Indicators and No. 657Y Indicator Attachment to No. 657X Rod.
D. No. 657X Rod. 1/4" (6.3mm) diameter x 6" (150mm) long. Accommodates Starrett Nos. 708, 709, 811 and 711F Series Dial Test Indicators and No. 657S Sleeve.
E. No. 657Y Indicator Attachment. 1/4" (6.3mm) O.D. one end, other end threaded and fits lug backs of all AGD indicators (Starrett Series Nos. 81, 25, 655, 656) and Series No. 80 Miniature Indicators.
F. No. PT18724 Snug 3/8" (9.5mm) diameter post hole. 1/4" (6.3mm) diameter gripping hole accommodates No. 657X Rod.

3170 Magnetic Base Indicator Holder, Starrett

Magnetic base with triple-jointed arm and fine adustment
Starrett catalog number 660

The compact and versatile No. 660 Magnetic Base Indicator Holder has three adjustable pivots controlled by a single knob for fast, easy indicator positioning.
Small but powerful magnetic base, with 70 lbs. (320 N) holding force
Positive On/Off switch
Base Dimensions: 1 3/16 x 1 9/16 x 1 3/8" (30 x 40 x 35mm)
Horizontal and vertical mounting positions
Will hold any indicator with a 3/8" (9.5mm) stem or standard dovetail mount
Articulating arm with powerful central locking knob provides full 360° horizontal positioning and over 180° vertical positioning
Maximum horizontal reach: 4.750" (120mm)
Maximum vertical reach: 7.500" (190mm)
Very sensitive fine-adjustment thumb screw

2887 Magnetic Holder for Laser Edge Finder
The LC/EF Magnetic Holder is CNC'd from a 6061 billet and a large NdFeB Rare Earth magnet is attached to the back of the holder so you can stick your LC/EF in any handy location...that is made of steel or iron of course. The lettering is engraved with a ball mill and then hand painted.
It works great! Try sticking it on the mill head for quick access. No more digging around in a drawer or worrying about it rolling off your table.

3072 Magnetic Test Indicator Holder

Overall height 3.75"
Powerful permanent magnet
Clamps on dovetail, 5/32", or 1/4" diameter stems
Includes stem adapter and mill adapter

1259 Measurement Starter Kit with Dial Caliper

6" Dial caliper
6" Steel rule
1" Stroke dial Indicator
Magnetic base indicator holder
Starrett Tools & Rules for Precision Measuring booklet

This kit includes the basic measurement tools you need for the mini mill, mini lathe or other small machines.
The magnetic base includes a fine adjustment.

1260 Measurement Starter Kit with Digital Caliper

6" electronic digital caliper
6" steel rule
1" stroke dial indicator
Magnetic base indicator holder
Starrett Tools & Rules for Precision Measuring booklet

This kit includes the basic measurement tools you need for the mini mill, mini lathe or other small machines.
The magnetic base includes a fine adjustment.

1248 Micrometer Set, 0-3"
This 0-3" micrometer set features carbide faces and clear 0.0001" graduations on a satin-chrome finish. The frames are forged steel. 1" and 2" standards are included, as well as adjusting wrenches.
The micrometers have a ratchet stop for exact repetitive readings and a lock lever to lock the barrel.
The micrometers come in a fitted case.

1836 Micrometer Set, 0-3", Starrett
Starrett 436 Series 0-3” Micrometer Set
Starrett catalog number ST436.1AXRLZ (was ST436AXRLZ).
All Starrett micrometer sets come with attractive, protective cases that keep micrometers and standards together, readily accessible.
These are the most popular precision micrometers used by skilled workmen worldwide. They are accurate, rugged, and easy to use.
Starrett satin chrome finish - no glare - resists rust
Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
Convenient decimal equivalents on one-inch micrometers
Balanced frame and thimble design insure easy handling
Ring-type knurled lock nut for quick and sure locking
Smooth friction thimble for uniform pressure, the combination ratchet and speeder for uniform pressure and quicker adjustment, or a plain micrometer that depends on your own "feel"
Gracefully designed tapered frame for use in narrow slots and tight places
Rigid one-piece steel frame ribbed for extra strength
Extremely hard and stable one-piece spindle (the heart of our accuracy)
Micro-lapped carbide measuring faces
Quick and easy adjustment
Starrett workmanship

3663 Micrometer Set, 0-6"

Solid metal C-shape frame for all sizes
Graduation: 0.0001”
Hardened and precision ground anvil spindle thread with microlap finish on ends

This 0-6" micrometer set features carbide faces and clear 0.0001" graduations on a satin-chrome finish. The frames are forged steel. 1" through 6" standards are included, as well as adjusting wrenches.
The micrometers have a ratchet stop for exact repetitive readings and a lock lever to lock the barrel.
The micrometers come in a fitted case.

3611 Micrometer, 0-0.6"

0.001" graduations on satin chrome finish
Great for checking small parts and working in tight quarters
Forged steel frame
Anvil and spindle are hardened and precision ground
Includes a fitted case

2877 Micrometer, 0-1"
This 0-1" micrometer features carbide faces and clear 0.0001" graduations on a satin-chrome finish. The frame is forged steel. An adjusting wrench is included.
The micrometer has a ratchet stop for exact repetitive readings and a lock lever to lock the barrel.
The micrometer comes in a fitted case.

3585 Micrometer, 0-1" Blade Type, Starrett

Starrett 0-1" blade type micrometer
Starrett catalog number 486P-1
Blades are .030" (0.8mm) thick
Will measure to 5/16" (8mm) depths.

This is a special function Starrett micrometer. It is designed for fast and accurate measurements of circular form tools, diameter and depth of narrow grooves, slots, keyways, recesses, and depths between lands and fins.
Readability Features: Starrett satin chrome finish – no glare – resists rust, Advanced sleeve design with staggered lines and distinct figures for precise and easy readability.
Ease-of-Handling Features: Balanced frame and thimble design insure easy handling and better readability, Speeder for quicker adjustment on all sizes, Non-rotating spindle prevents blade from turning in narrow slots or rolling off shoulder, The blades are .030" (0.8mm) thick, Blades will measure to 5/16" (8mm) depths.
Accuracy and Long-Life Features: Rigid one-piece frame of drop forged steel, Extremely hard and stable one-piece spindle (the heart of our accuracy), Quick and easy adjustment
Starrett workmanship

1845 Micrometer, 0-1" Digital, Starrett

Starrett 0-1" Electronic Digital Micrometer
Starrett catalog number 3734XFL-1

Action Features: ON/OFF button - also automatic OFF after 30 minutes of nonuse. Instant inch/millimeter conversion. Measurement HOLD button. Ability to zero tool at any position.
Readability Features: Large, right-sized, high-contrast LCD digital readout is easy to read and reduces errors. Conventional inch or millimeter graduations standard. Attractive no-glare black wrinkle finish on the frame. Starrett no-glare satin chrome finish on thimble and sleeve.
Ease-of-Handling Features: Balanced frame design for comfortable and accurate measuring. Ring-type knurled lock nut for quick and sure locking. Smooth friction thimble for uniform pressure. Gracefully designed tapered frame for use in narrow slots and tight places.
Accuracy and Long-Life Features: Extremely hard and stable one-piece spindle (the heart of our accuracy). Micro-lapped carbide measuring faces. Starrett designed electronic microprocessor. One battery furnished for dependable power and over one year’s normal usage. Automatic OFF after 30 minutes of nonuse. Starrett workmanship.

3180 Micrometer, 0-1" Starrett

Starrett 0-1" micrometer
Starrett catalog number T230XRL
Accurate to 0.0001"

This is the jewel of precision micrometers used by skilled workmen worldwide.
The spindle and anvil are sized at .235" (6mm) to reach places most micrometers cannot reach.
The balanced frame and thimble design insure easy handling and better readability. A ring-type knurled lock nut provides quick and sure locking. The combination ratchet and speeder provides uniform pressure and quicker adjustment. A gracefully designed tapered frame allows use in narrow slots and tight places.
The micromenter has a rigid one-piece frame of drop forged steel and an extremely hard and stable one-piece spindle (the heart of the accuracy). It features micro-lapped measuring faces, quick and easy adjustment, plus Starrett workmanship.

3475 Micrometer, Dial Caliper, Dial Test Indicator, Steel Rule, Starrett

Starrett Select Precision Measuring Tool Set
Starrett catalog number S905AZ

T231XRL - 1" Micrometer with Carbide Faces and Insulating Pads
120A-6 - 6" Dial Caliper
C604RE-6 - 6" Spring Tempered Precision Rule
711FSA .001" Graduation - Last Word® Dial Test Indicator with Universal Shank

2520 Micrometer, Electronic Digital

Measurement range is 0-1"
Resolution is 0.00005"
Protected from dust and water to IP54 per IEC529 standard
Large LCD display
Rugged plastic case

This digital electronic micrometer with carbide measuring faces has a resolution of 0.00005".
There are three buttons; ON/OFF, SET to zero the display, and ABS/INC to switch between absolute and incremental measurement. The micrometer turns itself off after about 5 minutes of inactivity.
Pressing ABS/INC zeros the micrometer at any position so you can make comparative readings between two parts. The absolute measurement is not lost, and is displayed by pressing ABS/INC again.
The IP54 code says that dust shall not penetrate in a quantity to interfere with satisfactory operation of the device or to impair safety, and water splashed against the device from any direction shall have no harmful effects.

1642 Mini Magnetic Indicator Holder

Magnetic indicator holder
5 positions for mounting accessories
Magnet has 45 pounds of holding force

1962 Pee Dee Thread Measuring Wires

Made in the USA by hungry machinists

This set of thread measuring wires includes 48 wires of 16 different diameters.
You can measure threads from 3 to 48 threads per inch, and metric threads from 0.5 mm to 6 mm pitch. You can also measure Acme threads from 3 to 16 threads per inch.
The thread measuring wires come with thread charts and are furnished with a quality vinyl case.
This is a quality American-made product from Fisher Machine Shop. These are the original Pee Dee brand thread measuring wires.

3720 Pin Gage Set, 0.061" TO 0.250" Minus

190 2" long pin gages
Each pin is up to 0.0002" under the marked size
Hardened to 60-62 Rc
Finished to 10 microinches
Furnished in a sturdy plastic case with sizes marked

These pin gages provide one of the best ways of measuring hole diameters. They can also be used to measure the distance between holes and for go/no go gaging..
This set includes 190 pin gages, one for each 0.001" from 0.061" to 0.250".

2424 Plastic Case for Magnetic Base and Dial Indicator
This plastic case holds a standard 1" dial indicator and magnetic base. It is the same case that comes with our 1782 set.

1783 Point Set, Dial Indicator
22 piece point set for a dial indicator.
These are 22 of the most popular points. All have #4-48 threads for use in AGD 1,2,3, and 4 indicators.
The point set comes in a plastic box with a hinged lid.

2886 Polarizing Attachment for Laser Edge Finder
The LC/EF Polarizing Attachment was developed to control the size of the laser dot, making viewing easier and more accurate on a variety of surfaces.
This is accomplished by the addition of a linear polarizer element to effectively control the intensity of the laser beam.
A lower intensity beam is easier for the human visual system to resolve, especially on reflective surfaces.
The polarizer simply slips over the nose of the LC/EF. Rotating the attachment varies the intensity of the light striking the target surface.
Adjusting the intensity will make the dot appear smaller by reducing the "halo" effect that is produced as the beam is scattered by the target surface and the diffraction pattern caused by passing a beam of light through a small opening.
Here is another way to look at it. When the laser is reflected from the target surface there is a primary "hot spot" at the center of the beam surrounded by a secondary ring of reduced intensity. By polarizing the beam we can begin to eliminate the secondary ring, making the primary hot spot easier to see.

2423 Precision Machinist's Level, 12", Starrett

Starrett machinist's improved level
Starrett catalog number 98-12
Ground and graduated main vials
Cross test vial and plumb vial
0.005" per foot (0.42 mm per meter) accuracy

These levels have ground and graduated main vials, and a cross test vial. The 12" level also has a plumb vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage.
The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work.
The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length.
These are the finest levels available, used for precision work that is typically required in industry. They all have these features:
All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

2427 Precision Machinist's Level, 18" & Case, Starrett

Starrett machinist's improved level in a wooden case
Starrett catalog number 98-18
Ground and graduated main vials
Cross test vial and plumb vial
0.005" per foot (0.42 mm per meter) accuracy

This level comes in a wooden case.
These levels have ground and graduated main vials, and a cross test vial. The 18" level also has a double plumb vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage.
The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work.
The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length.
These are the finest levels available, used for precision work that is typically required in industry. They all have these features:
All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

2425 Precision Machinist's Level, 18", Starrett

Starrett machinist's improved level
Starrett catalog number 98-18
Ground and graduated main vials
Cross test vial and plumb vial
0.005" per foot (0.42 mm per meter) accuracy

These levels have ground and graduated main vials, and a cross test vial. The 18" level also has a double plumb vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage.
The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work.
The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length.
These are the finest levels available, used for precision work that is typically required in industry. They all have these features:
All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

2320 Precision Machinist's Level, 4", Starrett
Starrett machinist's improved level with ground and graduated vials
Starrett catalog number 98-4.
This level has ground and graduated main vials. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage.
The base of the level features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting.
The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length.
These are the finest levels available, used for precision work that is typically required in industry. They all have these features:
All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

1846 Precision Machinist's Level, 6", Starrett

Starrett machinist's improved level
Starrett catalog number 98-6
Ground and graduated main vials
Cross test vial
0.005" per foot (0.42 mm per meter) accuracy

These levels have ground and graduated main vials, and a cross test vial. These vials are adjustable to a positive setting and are housed in a satin chrome brass tube with a friction-fit closing cover to prevent breakage.
The base of the levels features an involute groove running the length of the base, which provides a reliable seat for round work such as pipes or shafting. With the cross test vial, it is possible to simultaneously level in both directions. This prevents inaccuracies in the main vial reading caused by canting the level sidewise on round work.
The main level vials have graduations that are approximately 80-90 seconds or .005" per foot (0.42 mm per meter). There are five, six, or seven lines on each side of the bubble, depending on the base length.
These are the finest levels available, used for precision work that is typically required in industry. They all have these features:
All level bases are made from the finest quality seasoned cast iron and are precision-machined on the reference surface. Nonmachined surfaces have an attractive, black wrinkle finish. An involute longitudinal groove between the bearing flats for accurate seating on round work. This groove has a special involute design, permitting better centering and greater capacity to handle larger rounds. Groove and bearing flats are machined together for maximum accuracy.

3174 Precision Machinist's Level, 8", Starrett

Starrett machinist's improved level
Starrett catalog number 98-8
Ground and graduated main vials
Cross test vial
0.005" per foot (0.42 mm per meter) accuracy

2750 Protractor, Rectangular Head

Measures angles from 0 to 180°
Head is 3.3" x 2"
6" arm can be locked in any position with knurled lock nut
Made of stainless steel

Protractors are used for drawing radial lines, transferring angles, setting bevels, and setting tapers.
Made in the US.

2748 Protractor, Rectangular Head, PEC

Measures angles from 0 to 180°
Head is 3.3" x 2"
6" arm can be locked in any position with knurled lock nut
Made of tempered steel with satin chrome finish

Protractor made in the US by Products Engineering Corporation (PEC).
Protractors are used for drawing radial lines, transferring angles, setting bevels, and setting tapers.

3556 Protractor, Rectangular Head, Starrett

Starrett steel protractor (0-180°), 6" blade, rectangular head
Starrett catalog number C183
Double graduations from 0-180° in two directions
The blade can be locked firmly at any angle by the lock nut
Satin chrome finish for ease of reading and resistance to rust

This is a highly useful and accurate tool for setting bevels, transferring angles, small squaring tasks, checking cutter clearances within certain limits, and many other applications.
Double graduations from 0-180° in opposite directions permit the direct reading of angles and supplementary angles.
The back of the tool is flat for ease of use.

2751 Protractor, Round Head

Measures angles from 0 to 180°
Semi-circular head is 3.3" x 2"
6" arm can be locked in any position with knurled lock nut
Made of stainless steel

Protractors are used for drawing radial lines, transferring angles, setting bevels, and setting tapers.
Made in the US.

2749 Protractor, Round Head, PEC

Measures angles from 0 to 180°
Semi-circular head is 3.3" x 2"
6" arm can be locked in any position with knurled lock nut
Made of tempered steel with satin chrome finish

Protractor made in the US by Products Engineering Corporation (PEC).
Protractors are used for drawing radial lines, transferring angles, setting bevels, and setting tapers.

2878 Radius Gage Set

Set of 25 radius gages and holder
1/64" to 17/64" radius by 64ths
9/32" to 1/2" by 32nds
Satin chrome finish
Five gaging surfaces on each gage for both concave and convex radii

The radius gage set is furnished in a vinyl case for storage.

1842 Radius Gage Set, Starrett

Starrett 25 piece radius gage set
Starrett catalog number S167CHZ
Radii Range: 1/64-17/64" 9/32-1/2"
Increments: 64ths, 32nds

Radii or fillets can be checked or laid out easier, faster, and more accurately with Starrett radius gages.
Each set is furnished in an attractive case which provides complete protection and easy, instant selection of the right gage size for the job.
Gage Features: Made of satin finish stainless steel - rust and stain resistant. Each gage is clearly marked with its radius. Each gage has five different gaging surfaces for both convex and concave radii. All gages have precision finished radii with extra smooth, accurate edges.
Gage Holder Features: Any gage can be used with the Starrett No. 110 holder which is especially useful for checking radii in confined or hard-to-reach locations. Two slots are provided in the holder permitting gages to be held at 30° or 45°, either square in the slot or tipped to one side. The holder is 4" (100 mm) long, providing good reach and balance.

3029 Screw Checker, Inch PEC

#1 to 5/16" thread sizes
Quickly identify unified and American threads
NC, NF, and NS threads
Made in USA

Screw checkers provide a quick way to measure standard threads. They provide all the information you need for screws; diameter, length, threads per inch, hole size and even tap drill sizes.

3031 Screw Checker, Large Metric PEC

8 mm to 14 mm thread sizes
Quickly identify ISO metric threads
Coarse, medium, and fine threads
Made in USA

Screw checkers provide a quick way to measure standard threads. They provide all the information you need for screws; diameter, length, threads per inch, hole size and even tap drill sizes.

3030 Screw Checker, Small Metric PEC

2 mm to 7 mm thread sizes
Quickly identify ISO metric threads
Coarse, medium, and fine threads
Made in USA

Screw checkers provide a quick way to measure standard threads. They provide all the information you need for screws; diameter, length, threads per inch, hole size and even tap drill sizes.

1834 Screw Pitch Gage, Inch 30 Leaves, Starrett
Starrett screw pitch gage with 30 leaves. Measures 60° threads from 4 threads per inch to 42 threads per inch.
Starrett catalog number 6.
Starrett screw pitch gages are among the most useful tools in any mechanic's toolbox. They quickly determine the pitch of various threads. These gages consist of a substantial steel case with a number of folding leaves at both ends, each leaf having teeth corresponding to a definite pitch, marked on each leaf. Starrett screw pitch gages are available in a wide range of sizes with different numbers of leaves in various pitch ranges with which to gage. The screw pitch gage features a locking device at both ends of the case, so leaves can be securely locked in position for use. Leaves have a special narrow design, permitting checking internal threads in nuts, etc., as well as external threads.

3176 Screw Pitch Gage, Inch 51 Leaves Starrett

Starrett screw pitch gage with 51 leaves
Starrett catalog number 472
Measures 60° threads from 4 threads per inch to 84 threads per inch

Starrett screw pitch gages are among the most useful tools in any mechanic's toolbox. They quickly determine the pitch of various threads. These gages consist of a substantial steel case with a number of folding leaves at both ends, each leaf having teeth corresponding to a definite pitch, marked on each leaf. Starrett screw pitch gages are available in a wide range of sizes with different numbers of leaves in various pitch ranges with which to gage. The screw pitch gage features a locking device at both ends of the case, so leaves can be securely locked in position for use. Leaves have a special narrow design, permitting checking internal threads in nuts, etc., as well as external threads.

2744 Screw Pitch Gage, Inch PEC

Screw pitch gage with 51 leaves. Measures 60° threads from 4 threads per inch to 84 threads per inch
Narrow blades permit use for internal and external screw threads
Each blade clearly marked with thread size
Blades are protected in sturdy steel case
Locking device secures all blades for storage or positions an individual blade for use

Screw pitch gage made in the US by Products Engineering Corporation (PEC).
The correct pitch is determined by engaging the blade teeth with the threads you are measuring.
This screw pitch gage measures the following screw pitches: 4, 4-1/2, 5, 5-1/2, 6, 7, 8, 9, 10, 11, 11-1/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26, 27, 28, 30, 32, 34, 36, 38, 40, 42, 44, 46, 48, 50, 52, 54, 56, 58, 60, 62, 64, 66, 68, 70, 72, 74, 76, 78, 80, 82, and 84 threads per inch.

2746 Screw Pitch Gage, Inch/Metric PEC

Screw pitch gage with 28 leaves. Measures 60° threads from 4 to 56 TPI and 0.50 mm to 6.00 mm pitch
Narrow blades permit use for internal and external screw threads
Each blade clearly marked with thread size
Blades are protected in sturdy steel case
Locking device secures all blades for storage or positions an individual blade for use

Screw pitch gage made in the US by Products Engineering Corporation (PEC).
The correct pitch is determined by engaging the blade teeth with the threads you are measuring.
This screw pitch gage measures the following screw pitches: 4, 6, 8, 10, 11, 11-1/2, 12, 13, 16, 20, 28, 32, 40, 56 threads per inch, and 0.50, 0.75, 1.00, 1.23, 1.50, 1.75, 2.00, 2.50, 3.00, 3.50, 4.00, 4.50, 5.00, 6.00 mm

2617 Screw Pitch Gage, Metric 28 Leaves Starrett
Starrett metric screw pitch gage with 28 leaves. Measures 60° threads from 0.25 mm to 2.50 mm.
Starrett catalog number 156M.
Starrett screw pitch gages are among the most useful tools in any mechanic's toolbox. They quickly determine the pitch of various threads. These gages consist of a substantial steel case with a number of folding leaves at both ends, each leaf having teeth corresponding to a definite pitch, marked on each leaf. Starrett screw pitch gages are available in a wide range of sizes with different numbers of leaves in various pitch ranges with which to gage. The screw pitch gage features a locking device at both ends of the case, so leaves can be securely locked in position for use. Leaves have a special narrow design, permitting checking internal threads in nuts, etc., as well as external threads.

2745 Screw Pitch Gage, Metric PEC

Screw pitch gage with 28 leaves. Measures 60° threads from 0.25 mm to 2.50 mm pitch
Narrow blades permit use for internal and external screw threads
Each blade clearly marked with thread size
Blades are protected in sturdy steel case
Locking device secures all blades for storage or positions an individual blade for use

Screw pitch gage made in the US by Products Engineering Corporation (PEC).
The correct pitch is determined by engaging the blade teeth with the threads you are measuring.
This screw pitch gage measures the following screw pitches: 0.25, 0.30, 0.35, 0.40, 0.45, 0.50, 0.55, 0.60, 0.65, 0.70, 0.75, 0.80, 0.85, 0.90, 1.00, 1.10, 1.20, 1.25, 1.30, 1.40, 1.50, 1.60, 1.70, 1.75, 1.80, 1.90, 2.00, 2.50 mm

1824 Scriber with 2 3/8" Point, Starrett
Starrett hand scriber.
Starrett catalog number 70A.
The handle is of steel, knurled, and nickel plated. The scriber point is steel, properly hardened and finely tapered so that the location of the point is not obscured. The scriber is held firmly in the handle by a knurled chuck and when not in use can be reversed, telescoped into the handle, and locked by the chuck. The hexagon head prevents rolling.
The scriber point is shipped reversed in the handle so the point is protected.

2655 Scriber with 2 7/8" Point, Starrett
Starrett hand scriber.
Starrett catalog number 70B.
The handle is of steel, knurled, and nickel plated. The scriber point is steel, properly hardened and finely tapered so that the location of the point is not obscured. The scriber is held firmly in the handle by a knurled chuck and when not in use can be reversed, telescoped into the handle, and locked by the chuck. The hexagon head prevents rolling.
The scriber point is shipped reversed in the handle so the point is protected.

3535 Sine Bar, 2.5"

Working face parallel to bottom of rolls within 0.0002"
2.50" center distance of rolls accurate to 0.0003"
Made in USA

Use a sine bar and space blocks to set or measure extremely accurate angles.

3525 Sine Bar, 5"

Working face accurate to 0.00003" per inch of length
5.00" center distance of rolls accurate to 0.0002"

Use a sine bar and space blocks to set or measure extremly accurate angles.
The 1-2-3 block is not included.

3093 Small Hole Gage Set, 4-Piece

4 small hole gages with 0.125" to 0.500" range
Full spherical ball for very accurate measurements
Hardened, satin-chrome plated measuring faces
Furnished in plastic pouch

3545 Small Hole Gage Set, 4-Piece Starrett

Starrett 4- piece small hole gage set
Starrett catalog number S829EZ
Range of 0.125-0.500" (3.2-12.7 mm)
Hardened-ball measuring surface with two-point contact
Smooth, sensitive adjustment for better feel, giving more accurate measurements

These small hole gages are well balanced tools that are ideal for accurately measuring small holes, slots, grooves, and recesses in all kinds of work.
The radius on each gage is less than the minimum diameter to be measured, which provides the two-point contact necessary for maximum accuracy.
They have smooth, sensitive adjustment for better feel, giving more accurate measurements. The adjustment of the gage beyond their range is restricted by a safety stop that prevents breakage
Accurate measurements are obtained by slightly "rocking" these gages in the hole to be measured. This will guarantee contact at the true diameter. The final size is then obtained by measuring over the ball contacts with a micrometer.
Furnished in a vinyl pouch.

3172 Square, 3" Toolmakers, Starrett

Starrett toolmaker's grade stainless steel square
Starrett catalog number 3020-3
Blade length 2 31/32"
Beam length 1 31/32"
Squareness accuracy to .0002" (0.005mm) for every 6" (150mm)

These high quality toolmaker's squares feature hardened, ground, and lapped stainless steel construction on both the blade and the beam. The beam is machined at the inner corner for clearance.

3564 Square, 4" Toolmakers, Starrett

Starrett toolmaker's grade stainless steel square
Starrett catalog number 3020-4
Blade length 3 31/32"
Beam length 2 31/32"
Squareness accuracy to .0002" (0.005mm) for every 6" (150mm)

These high quality toolmaker's squares feature hardened, ground, and lapped stainless steel construction on both the blade and the beam. The beam is machined at the inner corner for clearance.

1841 Square, 4-1/2" Master Precision, Starrett
Starrett 4-1/2" master precision square
Starrett catalog number 20-4 1/2.
The finest precision-checking squares - not graduated. Squareness accuracy to .0001" (0.0025 mm) every 6" (150 mm)
These hardened steel squares are used when extreme accuracy is required. The beams and blades are hardened, ground, and lapped to insure parallelism and straightness. The beam is grooved at the inner corner for clearance of burr or dirt. Made of high quality tool steel, with the finest of craftsmanship throughout.

3173 Square, 6" Toolmakers, Starrett

Starrett toolmaker's grade stainless steel square
Starrett catalog number 3020-6
Blade length 5 29/32"
Beam length 3 29/32"
Squareness accuracy to .0002" (0.005mm) for every 6" (150mm)

These high quality toolmaker's squares feature hardened, ground, and lapped stainless steel construction on both the blade and the beam. The beam is machined at the inner corner for clearance.

2730 Steel Rule, 12" 4R Flexible, PEC

4R graduations, 8ths & 16ths, 32nds & 64ths
Made from the finest quality steel available
Fully hardened and tempered with stain chrome finish
Precisely etched, then black filled for readability
Rule is 1/2" wide and 0.015" thick

Flexible steel rule made in the US by Products Engineering Corporation (PEC).

2735 Steel Rule, 12" 4R Rigid, PEC

4R graduations, 8ths & 16ths, 32nds & 64ths
Made from the finest quality steel available
Fully hardened and tempered with stain chrome finish
Precisely etched, then black filled for readability
Rule is 3/4" wide and 0.040" thick

Rigid steel rule made in the US by Products Engineering Corporation (PEC).

2732 Steel Rule, 12" 5R Flexible, PEC

5R graduations, 32nds, 64ths, 10ths, 100ths
Made from the finest quality steel available
Fully hardened and tempered with stain chrome finish
Precisely etched, then black filled for readability
Rule is 1/2" wide and 0.015" thick

Flexible steel rule made in the US by Products Engineering Corporation (PEC).

3175 Steel Rule, 12" 5R Flexible, Starrett

Starrett 12", 5R graduations, full-flexible steel rule.
Starrett catalog number C305R-12.
Graduation No. 5R - quick-reading 10ths, aircraft quick-reading 100ths, 32nds and 64ths.
This rule is 1/2" wide and 1/64" thick.

All Starrett precision steel rules are machine-divided, not photoengraved. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

2733 Steel Rule, 150 mm / 6" Flexible, PEC

English/metric graduations, 0.5 mm & 32nds, mm & 64ths
Made from the finest quality steel available
Fully hardened and tempered with stain chrome finish
Precisely etched, then black filled for readability
Rule is 1/2" wide and 0.015" thick

Flexible steel rule made in the US by Products Engineering Corporation (PEC).

2736 Steel Rule, 150 mm / 6" Rigid, PEC

English/metric graduations, 0.5 mm & 32nds, mm & 64ths
Made from the finest quality steel available
Fully hardened and tempered with stain chrome finish
Precisely etched, then black filled for readability
Rule is 3/4" wide and 0.040" thick

Rigid steel rule made in the US by Products Engineering Corporation (PEC).

1828 Steel Rule, 150 mm 31 Flexible, Starrett
Starrett 150 mm (5 3/4") No. 31 graduations, full-flexible steel rule.
Starrett catalog number C331-150.
Graduated 150 mm end-to-end on mm edges and to 5-3/4" with a blank end on the inch edges.
Graduations No. 31 - 32nds and 64ths on one side; mm and 1/2 mm on reverse. All four edges graduated from same end.
This rule is 1/2" wide and 1/64" thick.
All Starrett precision steel rules are machine-divided, not photoengraved. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

1234 Steel Rule, 6"
This precision, 6" long steel rule is flexible to fit into tight spots. The etched black graduations are easy to read against the non-glare finish.
The rule is hardened stainless steel.
The 4R graduations include 8ths, 16ths, 32nds, and 64ths.

2729 Steel Rule, 6" 4R Flexible, PEC

4R graduations, 8ths & 16ths, 32nds & 64ths
Made from the finest quality steel available
Fully hardened and tempered with stain chrome finish
Precisely etched, then black filled for readability
Rule is 1/2" wide and 0.015" thick

Flexible steel rule made in the US by Products Engineering Corporation (PEC).

1826 Steel Rule, 6" 4R Flexible, Starrett
Starrett 6", 4R graduations, full-flexible steel rule.
Starrett catalog number C304R-6.
Graduation No. 4R - 8ths, 16ths, quick-reading 32nds and 64ths.
This rule is 1/2" wide and 1/64" thick.
All Starrett precision steel rules are machine-divided, not photoengraved. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

2734 Steel Rule, 6" 4R Rigid, PEC

4R graduations, 8ths & 16ths, 32nds & 64ths
Made from the finest quality steel available
Fully hardened and tempered with stain chrome finish
Precisely etched, then black filled for readability
Rule is 3/4" wide and 0.040" thick

Rigid steel rule made in the US by Products Engineering Corporation (PEC).

2233 Steel Rule, 6" 4R Rigid, Starrett
Starrett 6", 4R graduations, spring-tempered Steel Rule.
Starrett catalog number C604R-6.
Graduation No. 4R - 8ths, 16ths, quick-reading 32nds and 64ths.
This rule is 3/4" wide and 3/64" thick.
All Starrett precision steel rules are machine-divided, not photoengraved. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

2731 Steel Rule, 6" 5R Flexible, PEC

5R graduations, 32nds, 64ths, 10ths, 100ths
Made from the finest quality steel available
Fully hardened and tempered with stain chrome finish
Precisely etched, then black filled for readability
Rule is 1/2" wide and 0.015" thick

Flexible steel rule made in the US by Products Engineering Corporation (PEC).

1827 Steel Rule, 6" 5R Flexible, Starrett
Starrett 6", 5R graduations, full-flexible steel rule.
Starrett catalog number C305R-6.
Graduation No. 5R - quick-reading 10ths, aircraft quick-reading 100ths, 32nds and 64ths.
This rule is 1/2" wide and 1/64" thick.
All Starrett precision steel rules are machine-divided, not photoengraved. They are inspected to Starrett Master Standards, which are traceable to the National Institute of Standards and Technology.

3550 Tap and Drill Gage, Starrett "Time Saver"

Starrett hardened tap and drill gage
Starrett catalog number 185
Drill sizes number 1-60 (0.228-0.040")

This highly useful gage shows at a glance the correct size tap drill for any common size machine screw tap in "NF" National Fine or "NC" National Coarse Thread Series, that will leave the right amount of stock for approximately 65% full thread. The gage also shows the correct body size drill to use. In addition, there are 60 holes marked with the number size and decimal equivalent of the drill that fits each hole. Example: a size 2-56 tap (No. 2 tap with 56 pitch) calls for a No. 50 tap drill and a No. 44 body drill.

The gage has a black matte finish with information steel stamped on one side and white marked on the reverse side for quick, clear reading. The gage is thoroughly tested for accuracy after hardening. Approximate size, 5/64" thick by 2 5/16" wide by 6 1/4" long.

1840 Telescoping Gage Set, 4-Piece Starrett

Starrett telescoping gage set
Starrett catalog number S579GZ
Range: Four gages, 5/16" to 2-1/8"

Starrett telescoping gages are used for determining the true size of holes, slots, and recesses up to 2-1/8" (54 mm). The ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter. These tools must be slightly "rocked" in the hole being measured to ensure that the tool is on the proper diameter before it is locked and withdrawn. The final hole size is obtained by measuring over the gage contacts with a micrometer.
The No. 579 Series telescoping gages have handles that are rigidly attached to the contact plungers and are automatically self-centering. Also, the No. 579 gages have two telescoping contacts.
The handles are approximately 2-3/8" (60 mm) long.
Constant spring tension gives uniform contact pressure and both plungers are easily locked at any desired setting.

3185 Telescoping Gage Set, 4-Piece, PEC

For measuring holes, slots and recesses
Measures holes from 5/16" to 2 1/8" diameter
Double action is self-centering
Satin chrome finish
Contact ends are hardened and ground

Use telescoping gages to measure ID, deep holes, recesses, slots, grooves, and other hard to reach places.
Measure the actual size or lock the self-centering plungers to a known size for a go-no go gage.
The photo shows the 6-piece set. This set has the smaller 4 gages.

2879 Telescoping Gage Set, 6-Piece

For measuring holes, slots and recesses
Measures holes from 5/16" to 6" diameter
Double action is self-centering
Satin chrome finish
Contact ends are hardened and ground to the radius of the smallest diameter

2959 Telescoping Gage Set, 6-Piece Starrett

Starrett telescoping gage set
Starrett catalog number S579HZ
Range: Six gages with a range of 5/16" to 6"

Starrett telescoping gages are used for determining the true size of holes, slots, and recesses up to 6" (54 mm). The ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter. These tools must be slightly "rocked" in the hole being measured to ensure that the tool is on the proper diameter before it is locked and withdrawn. The final hole size is obtained by measuring over the gage contacts with a micrometer.
The No. 579 Series telescoping gages have handles that are rigidly attached to the contact plungers and are automatically self-centering. Also, the No. 579 gages have two telescoping contacts.
The handles are approximately 2-3/8" (60 mm) long.
Constant spring tension gives uniform contact pressure and both plungers are easily locked at any desired setting.

3184 Telescoping Gage Set, 6-Piece, PEC

For measuring holes, slots and recesses
Measures holes from 5/16" to 6" diameter
Double action is self-centering
Satin chrome finish
Contact ends are hardened and ground

1251 Test Indicator Holder

Clamping diameter of 1-7/8"
Length from the center of the clamp to the indicator can be up to 6-1/2"
Clamps to the outside of an end mill holder and does not disturb the working tool

This test indicator holder has a clamping diameter of 1-7/8". The length from the center of the clamp to the indicator can be up to 6-1/2".
The test indicator clamps to the outside of an end mill holder and does not disturb the working tool.

2452 Universal Back-Plunger Dial Indicator, Starrett

Starrett Back-Plunger Dial Indicator
Starrett catalog number 196A1Z
0-100 with 3 Contact Points, Adapter, 4 Attachments in Case
Accurate and reliable
Rugged, with few moving parts

The Starrett No. 196 Indicator is one of the most versatile indicators available, and it is the "granddaddy" of them all. Over the years this tool has been improved by methods and materials but the basic design is unchanged. The design is older than most of you and has withstood the test of time and beaten all challengers because it is:
Accurate and reliable
Simple to operate
Rugged, with few moving parts
Smooth in operation
Inexpensive - the best indicator value you can buy
This indicator with graduations to .001" will handle by far the majority of jobs. Shank diameter is 1/4" (6.3 mm).
For full use, first choose the proper contact from the three hardened contact points that are included. Then the contact is brought against the work with enough pressure to give the hand one full turn. Set the hand at zero by rotating the dial with the knurled bezel. This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation.

1603 Wiggler Center Finder Set
This wiggler center finder set comes with 4 probes for finding centers, edges, and indicating. Each probe snaps into the body without removing the collet nut.
The wiggler shank is 0.375" diameter.

2294 Wiggler Center Finder Set

Collet chuck and 4 probes
Includes needle point, 0.025" Ball, 0.100" Disk, and 0.250" Shank indicator attachment
Made in USA

This wiggler center finder set comes with a collet chuck and 4 probes for finding centers, edges, and indicating. Each probe snaps into the body without removing the collet nut.
The wiggler shank is 0.375" diameter.

2278 Wiggler Center Finder Set, Starrett
Starrett Wiggler Center Finder.
Starrett catalog number S828.
The wiggler center finder and three different attachments adapt to countless applications and are readily interchangeable. The attachments are snapped in the chuck without removing the collet nut and are clamped by a ball swivel-joint, which permits adjustment to an angular position or true concentricity.
With the pointed shank, working centers can be quickly and accurately located. Spring tension on the ball of the point permits guiding the point to true concentricity so that the work can be brought into perfect alignment with the machine spindle.
The ball contact is useful in locating work by first bringing the contact (ball diameter 0.250" or 6.3 mm) against the work, a slot, hole, shoulder, or end, and indexing the work to the desired position relative to the spindle.
The disc contact, which has a small disc at the end (0.100"/2.5 mm) diameter, permits use in more confined areas such as slots or shallow holes.
The wiggler shank is 0.375" diameter.

2279 Wiggler Center Finder, Starrett
Starrett Wiggler Center Finder.
Starrett catalog number 828A.
The wiggler center finder and pointed shank quickly and accurately locates working centers.
Spring tension on the ball of the point permits guiding the point to true concentricity so that the work can be brought into perfect alignment with the machine spindle.
The attachment is snapped in the chuck without removing the collet nut and is clamped by a ball swivel-joint, which permits adjustment to an angular position or true concentricity.

Measuring Tools

Contact Us / Company Info / Privacy Policy / Terms & Conditions / Payment Options / Shipping Rates & Policies Copyright © 2007 LittleMachineShop.com Phone: (800) 981-9663 Fax: (626) 797-7934

Contact Us / Company Info / Privacy Policy / Terms & Conditions / Payment Options / Shipping Rates & Policies
Copyright © 2007 LittleMachineShop.com Phone: (800) 981-9663 Fax: (626) 797-7934
