LittleMachineShop.com mini lathes are all best-in-class products. Whether you want an economical starter or a top-of-the-line machine, we have you covered. Also, check out our full line of tooling, accessories and replacement parts. As always, we stand behind our products 100% and provide US based tech support for everything we sell.

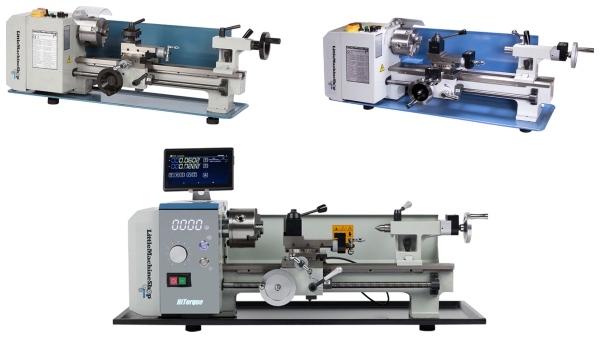

7450 HiTorque 7x16 Deluxe Mini Lathe, LED Mirror Display

All the Features of the HiTorque 5100 (brushless motor, gearless spindle drive, extended bed, etc.)
LED display with illuminated controls and integrated spindle speed readout
2-Axis Bluetooth DRO (w/tablet) on ways and cross feed, DRO readouts on tailstock and compound
Aluminum hand wheels and chrome levers
0XA wedge-type quick change tool post and five tool holders

The LittleMachineShop.com HiTorque 7450 Mini Lathe is the best in its class. It has the most power, the most torque, the most features and upgrades, and the longest bed in its class. It is also proof that all lathes are not the same. Most noticeable is the LED mirror display which clearly and elegantly organizes the key controls for the lathe. All controls are Illuminated, and it includes a start/stop button, a spindle direction button and emergency power (E-stop) switch. A variable speed control knob allows accurate control of spindle speeds, while an integrated spindle speed display clearly displays the speed. The 7450 lathe also comes equipped with a 2-axis tablet display DRO connected via Bluetooth to magnetic scales on the longitudinal and cross feeds. It also has 2 digital readouts on the compound rest and tailstock. The DRO system measures in increments .0002" and comes factory installed on the lathe. A 500-Watt brushless spindle drive motor and belt drive provides tremendous power and low-end torque. There are NO gears to shift, so no gears to break. The drive allows for spindle speeds from 100 to 2500 RPM continuously in both directions. NSK brand Japanese-quality spindle bearings ensure smooth and quiet operation. Standard on the lathe is an all steel, wedge-type quick change tool post which accepts turning tools up to 1/2" shank. Five toolholders are also included for the most common tools and tasks. The lathe also comes with a 4" Sanou lathe chuck, a Morse taper #2 dead center for the tailstock, and an 11-gear change gear set that includes a 21-tooth gear for accurate metric threading. For more details, see the Contents tab. Real top and bottom half-nuts with a 16 TPI lead screw and a factory-installed threading dial provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.3 to 8 mm pitch with the extra 21 tooth change gear that is included. The 7x16 lathe includes attractive aluminum hand wheels and chrome levers. A backsplash guard and deluxe chip tray with rubber feet give a broader and more secure stance. The LittleMachineShop.com model 7450 HiTorque Mini Lathe is a version of the SIEG SC2. *NOTE* We ship machines only to the US and Canada.

5100 HiTorque 7x16 Mini Lathe

Extended bed (16" between centers) provides more working room
Most powerful and most low-speed torque in its class. No gears in spindle drive
4" 3-jaw lathe chuck
Cam lock tailstock
CHUCK GUARD HAS NOW BEEN REMOVED

The LittleMachineShop.com HiTorque 7x16 Mini Lathe is the best in its class. It has the most power, most torque, and a longer center distance than other lathes in its class. The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 50 rpm to 2500 rpm continuously in both directions. There are no gears to shift. The cross feed and compound rest dials are graduated in 0.001" and 0.025 mm. A 4" 3-jaw lathe chuck is included, and the lathe is equipped with a 4-way indexing tool post set for 5/16" (8 mm) tools. Real top and bottom half-nuts and a reversible 16 TPI lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.35 to 8 mm pitch with the extra 21 tooth change gear that is included. Cutting inch threads is made even easier with the factory-installed threading dial. This HiTorque 7x16 Mini Lathe for sale includes a chip tray, a backsplash guard, and spreaders to give the feet a broader stance. This machine is shipped completely assembled and adjusted. Machined surfaces are coated with a viscous oil to prevent rust. It wipes off easily with a rag--no solvents necessary. The LittleMachineShop.com model 5100 HiTorque Mini Lathe is a version of the SIEG SC2. *NOTE* We ship machines only to the US and Canada.

4800 HiTorque 7x16 Mini Lathe with Tooling Package and Stand

Most powerful lathe in its class with most low-speed torque in its class
Includes premium tooling package
No gears in spindle drive
Cam lock tailstock

HiTorque Mini Lathe, Tooling Package, and Stand. This includes the PN 5100 HiTorque Mini Lathe, the 5207 tooling package and the 5626 stand. The LittleMachineShop.com HiTorque Mini Lathe is the best in its class. It has the most power, most torque, and a longer center distance than other lathes in its class. The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 50 rpm to 2500 rpm continuously in both directions. There are no gears to shift. The cross feed and compound rest dials are graduated in 0.001" and 0.025 mm. Real top and bottom half-nuts and a reversible 16 TPI lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.3 to 8 mm pitch with the extra 21 tooth change gear that is included. The lathe includes a chip tray, a backsplash guard, and spreaders to give the feet a broader stance. The LittleMachineShop.com model 5100 HiTorque Mini Lathe is a version of the SIEG SC2. The Premium Tooling Package includes a high-quality all-steel wedge-style quick change tool post set with five tool holders, a 1/2" professional-grade drill chuck on a 2 Morse taper shank, American-made indexable turning tools, an indexable boring bar, a premium cut-off blade, and center drills.

7350 HiTorque 7x16 Mini Lathe, Deluxe

Features of 5100 (most powerful, most low-speed torque, gearless spindle, cam-lock TS, 4" chuck)
Includes DRO readouts on compound rest, cross slide, and tailstock
Metal hand wheels and chrome levers
Includes 0XA wedge-type quick change tool post and five tool holders
CHUCK GUARD HAS NOW BEEN REMOVED

The LittleMachineShop.com HiTorque Mini Lathe is the best in its class. It has the most power, most torque, and a longer center distance than other lathes in its class. This lathe comes equipped with digital readouts on the cross slide, compound rest, and tailstock quill. The attractive hand wheels are all metal, and the levers are chrome. The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 50 RPM to 2500 rpm continuously in both directions. There are no gears to shift. The all steel, wedge-type quick change tool posts accepts turning tools up to 1/2" shank. It comes with five toolholders (for details, see part number 3112). Real top and bottom half-nuts and a reversible 16 TPI lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.35 to 8 mm pitch with the extra 21 tooth change gear that is included. Cutting inch threads is made even easier with the factory-installed threading dial. The 7x16 lathe includes a chip tray, a backsplash guard, and spreaders to give the feet a broader stance. This machine is shipped completely assembled and adjusted. Machined surfaces are coated with a viscous oil to prevent rust. It wipes off easily with a rag; no solvents necessary. The LittleMachineShop.com model 7350 HiTorque Mini Lathe is a version of the SIEG SC2. *NOTE* We ship machines only to the US and Canada.

4717 HiTorque 8.5x20 Bench Lathe with Tooling Package and Stand

Inch dials, inch and metric threading
Cam lock tailstock
Power longitudinal feed and power cross feed
Includes tooling package and stand
4" (100 mm) 3-jaw self centering lathe chuck

HiTorque Bench Lathe, Tooling Package, and stand. This includes the PN 7500 HiTorque Bench Lathe, the PN 4217 Lathe Tooling Package, and the PN 3973 C4 Stand. The LittleMachineShop.com HiTorque 8.5x20 Bench Lathe is the best in its class. No other lathes in this size offer power cross feed. The 1000 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2000 rpm continuously in both directions. There are no gears to shift. The cross feed and compound rest dials are graduated in 0.001" and advance 0.050" per turn. The lathe is equipped with a 4-way indexing tool post set for 10 mm tools. A reversible 2 mm pitch lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.2 to 8 mm pitch with the change gears that are included. All the gears on this lathe are metal. The LittleMachineShop.com model 7500 HiTorque 8.5x20 Bench Lathe is a version of the SIEG SC4 bench lathe. *NOTE* We ship machines only to the US and Canada.
