Rotary Tables
We carry a full range of small rotary tables. There are index (dividing) plates available for all of our rotary tables if you want to do indexing. We also have tailstocks for all the rotary tables. |
3429 4th Axis Rotary Table for CNC
- Add your own stepper motor
- Requires NEMA 23 motor with at least 200 oz-in torque
Diameter - 4"
Capacity - 5 kg
Maximum Torque with 1.35 N/m motor - 54 N/m
Thru Hole - 12mm
Horizontal - Yes
Vertical - Yes
Tail Stock - Compatible with LMS part number 1812 (not included)
Vertical Center Height - 2.68"
Ratio - 40 to 1
Net Weight - 12kgs
Rotational Accuracy - 5 seconds
Backlash - Less than 0.05 mm, and within 0.01 mm after adjustment
Repeatability - 0.01 mm
T-Slot Size - 8mm |
|
3519 4th Axis Rotary Table for CNC
- Includes stepper motor
- Includes tailstock
- Includes adapter to mount a 3" lathe chuck
- Includes hold down clamps to mount the rotary table on 3501 and 3503 CNC Mills.
The 4th axis rotary table plugs right into the model 3501 and 3503 CNC Milling Machine, which includes the 4th axis driver.
Diameter - 4"
Capacity - 5 kg
Maximum Torque with 1.35 N/m motor - 54 N/m
Thru Hole - 12mm
Horizontal - Yes
Vertical - Yes
Vertical Center Height - 2.68"
Ratio - 40 to 1
Net Weight - 12kgs
Rotational Accuracy - 5 seconds
Backlash - Less than 0.05 mm, and within 0.01 mm after adjustment
Repeatability - 0.01 mm
T-Slot Size - 8mm |
|
1702 Index Spacer, 4" Tilting
This 4" tilting index spacer is perfect for small precision detail work on your mini mill.
It features a micro dial for easy movement of the chuck, a 360 degree graduated ring, and easy backlash adjustment.
The jaws are reversible for inside and outside clamping.
There is a 0.984" hole that goes all the way through the indexer.
The index spacer tilts 90 degrees with a graduated ring and a positive lock.
The chuck diameter is 4.3". The center height is 2.75".
The maximum runout of a 20 mm bar held in the chuck, measured 50 mm from the chuck is 0.08 mm (0.003"). The maximum axial runout of a test ring held on the jaws is 0.04 mm (0.0016"). |
|
1927 Rotary Table, 4" H/V
This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The meehanite cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a ten second accuracy vernier scale is provided. The rotary table has lock down clamps and the crank can be disengaged.
The worm gear and center hole are hardened and ground.
The table is 2.76" high when horizontal, and the centerline is 2.76" above the table when in the vertical position.
The worm ratio is 72 to 1.
Flatness of clamping surface: 0.0006" TIR
Parallelism of clamping surface to base: 0.0008" TIR
Squareness of clamping surface to angle face: 0.0004" TIR
Squareness of clamping surface to center slot: 0.0008" TIR
Concentricity of center bore: 0.0008" TIR
Maximum spacing error: 1 minute, 20 seconds.
Dividing plates and a tailstock are available for this rotary table. You can get all three items for a significant savings as our part number 1931. |
|
1727 Rotary Table, 4" Phase II
This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The meehanite cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a ten second accuracy vernier scale is provided. The rotary table has lock down clamps and the crank can be disengaged.
The worm gear and center hole are hardened and ground.
The table is 2.76" high when horizontal, and the centerline is 2.76" above the table when in the vertical position.
The worm ratio is 72 to 1.
Flatness of clamping surface: 0.0006" TIR
Parallelism of clamping surface to base: 0.0008" TIR
Squareness of clamping surface to angle face: 0.0004" TIR
Squareness of clamping surface to center slot: 0.0008" TIR
Concentricity of center bore: 0.0008" TIR
Maximum spacing error: 1 minute, 20 seconds.
Dividing plates and a tailstock are available for this rotary table. They are the same ones that work with our H/V rotary table (PN 1927). |
|

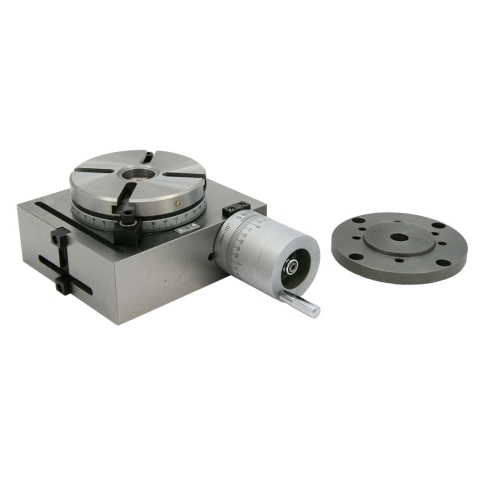

1810 Rotary Table, 4" Precision
- 4" (100 mm) diameter
- Use in horizontal or vertical position
- Worm ratio is 72 to 1
- 10 second rotational accuracy
- 2 Morse taper center hole
This horizontal / vertical rotary table is made of precision machined cast iron and has a 2 Morse taper center hole. The table is graduated with a 360 degree scale. The rotary table is furnished with lock down clamps.
This rotary table comes with an adapter to mount a 3" lathe chuck. It works with both 3- and 4-jaw chucks.
The table is 2.87" high when horizontal, and the centerline is 2.68" above the table when in the vertical position. The body of the table is 5" (crank handle to back) by 5.5" (mounting slot to mounting slot).
The worm ratio is 72 to 1.
Flatness of clamping surface: 0.0008".
Parallelism of clamping surface to base: 0.0008".
Squareness of clamping surface to angle face: 0.0012".
Squareness of clamping surface to center slot: 0.0012".
Concentricity of center bore: 0.0008" TIP.
A dividing plate and a tailstock are available for this rotary table. You can get all three items for a significant savings as our part number 2183. |
|
2183 Rotary Table, 4" with Tailstock & Dividing Plate
- 1810 Precision 4" Rotary Table
- 1811 Dividing plate set
- 1812 Tailstock
This kit provides a complete rotary table and indexing solution. |
|
1931 Rotary Table, 4" with Tailstock & Dividing Plate
- 1927 H/V 4" Rotary Table
- 1799 Dividing plate set
- 1800 Tailstock
This kit provides a complete rotary table and indexing solution. |
|
3131 Rotary Table, 4" with Tailstock, Dividing Plate, & 3-Jaw Lathe Chuck
- 1810 Precision rotary table (includes chuck adapter)
- 1811 Dividing plate set
- 1812 Tailstock
- 1187 3-Jaw 3" lathe chuck
This kit provides a complete rotary table and indexing solution.
This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a fifteen second accuracy vernier scale is provided. The rotary table has lock down clamps.
The tailstock is adjustable in height.
The dividing plate set consists of one plate with two sets of holes. One circle has 15 holes and the other has 28 holes. This lets you divide a circle into 1/3 degree increments, among many other combinations.
The 3 inch 3-Jaw self-centering lathe chuck includes a chuck key, inside and outside jaws, and mounting bolts.
The lathe chuck adapter lets you mount a 3" 3- or 4-jaw lathe chuck on a rotary table with a 2 Morse taper center hole. There is an alignment boss that projects into the tapered hole for quick alignment. It is clamped to the rotary table with T-slot nuts that are included. |
|
3132 Rotary Table, 4" with Tailstock, Dividing Plate, & 4-Jaw Lathe Chuck
- 1810 Precision rotary table
- 1811 Dividing plate set
- 1812 Tailstock
- 1175 4-Jaw 3" lathe chuck
This kit provides a complete rotary table and indexing solution.
This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a fifteen second accuracy vernier scale is provided. The rotary table has lock down clamps.
The tailstock is adjustable in height.
The dividing plate set consists of one plate with two sets of holes. One circle has 15 holes and the other has 28 holes. This lets you divide a circle into 1/3 degree increments, among many other combinations.
The 3 inch 4-Jaw independent lathe chuck includes a chuck key, reversible jaws, and mounting bolts.
The lathe chuck adapter lets you mount a 3" 3- or 4-jaw lathe chuck on a rotary table with a 2 Morse taper center hole. There is an alignment boss that projects into the tapered hole for quick alignment. It is clamped to the rotary table with T-slot nuts that are included. |
|
1787 Rotary Table, 6" Phase II
This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The meehanite cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a ten second accuracy vernier scale is provided. The rotary table has lock down clamps and the crank can be disengaged.
The worm gear and center hole are hardened and ground.
The table is 3.35" high when horizontal, and the centerline is 4.92" above the table when in the vertical position.
The worm ratio is 90 to 1.
Flatness of clamping surface: 0.0006"
Parallelism of clamping surface to base: 0.0008"
Squareness of clamping surface to angle face: 0.0004"
Squareness of clamping surface to center slot: 0.0008"
Concentricity of center bore: 0.0008"
Dividing plates and a tailstock are available for this rotary table. |
|
2326 Rotary Table, 6" Precision
This horizontal / vertical rotary table is made of precision machined cast iron and has a 2 Morse taper center hole. The table is graduated with a 360° scale. The rotary table is furnished with lock down clamps.
The table is 3.70" high when horizontal, and the centerline is 3.86" above the table when in the vertical position.
The worm ratio is 72 to 1.
Flatness of clamping surface: 0.0008"
Parallelism of clamping surface to base: 0.0008"
Squareness of clamping surface to angle face: 0.0012"
Squareness of clamping surface to center slot: 0.0012"
Concentricity of center bore: 0.0008" TIP
A dividing plate, tailstock and chuck adapter are available for this rotary table. You can get all four items for a significant savings as our part number 2329. |
|
2329 Rotary Table, 6" with Tailstock & Dividing Plate
- 2326 Precision 6" Rotary Table
- 2328 Dividing plate set
- 2327 Tailstock
- 2330 Chuck adapter
This kit provides a complete rotary table and indexing solution. |
|
3566 Rotary Table, 6" with Tailstock & Dividing Plate, Phase II
- 1787 6" Phase II Rotary Table
- 1801Dividing Plate Set
- 1802 Tailstock
This kit provides a complete rotary table and indexing solution. |
|
