Tooling > Clamping Kits

Clamping kit, 8 mm T-Slot, 36-Piece

Clamping kit, 8 mm T-Slot, 36-Piece

Related Products

Tooling Package Savings
Tooling Package Savings

36-piece clamping kit

This clamping kit fits the 8 mm T-slots on the micro mill.

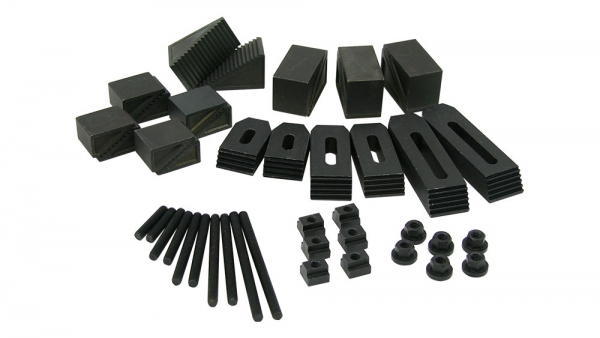

The clamping kit includes 10 M6 studs, 4 step block pairs, 6 T-slot nuts, 6 flange nuts, and 6 step clamps.

There are more parts included than shown in the photo.

Part Number: 2039
Weight: 5.28 pounds

Price: $39.95
Quantity:


Chris Chris' Tips
Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Part Number

Slot

B

Thread A

C

D

E

Length

1268, 2021

1/2"

0.49"

3/8" - 16

0.50"

0.28"

0.88"

0.88"

1269, 1144

7/16"

0.43"

3/8" - 16

0.50"

0.28"

0.69"

0.88"

1418

12 mm

11.7 mm

M8

12 mm

7 mm

18 mm

18 mm

2991

10 mm

9.7 mm

M8

12 mm

6 mm

15 mm

15 mm

1813, 1972, 2039, 2058, 2175

8 mm

7.7 mm

M6

10 mm

5 mm

13 mm

13 mm

1943, 2059

6 mm

5.7 mm

M5

8.2 mm

4 mm

10 mm

12 mm


Compatibility

This product works with these LittleMachineShop.com products:

This product works with mills with a 0.315 inch T-slot width including:

  •   Harbor Freight 47158 Central Machinery Micro Mill/drill
