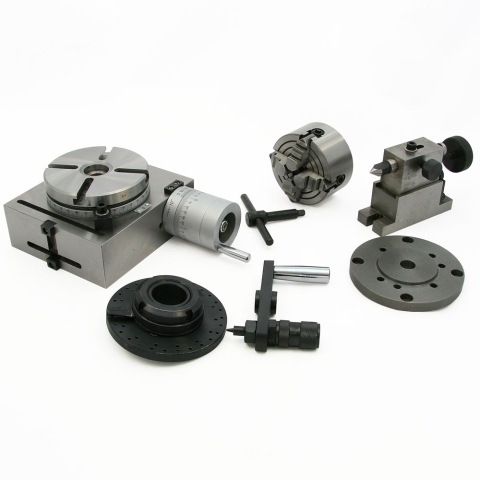

Rotary Table, 4" with Tailstock, Dividing Plate, & 4-Jaw Lathe Chuck
- 1810 Precision rotary table
- 1811 Dividing plate set
- 1812 Tailstock
- 1175 4-Jaw 3" lathe chuck
Weight: 28.6 lb
Purchased individually $678.43
http://lmscnc.com/3132
This horizontal / vertical rotary table is for indexing, circular cutting, angle setting, boring, and spot facing operations. The cast iron table is precision machined and has a 2 Morse taper center hole. The table is graduated with a 360° scale. A micro collar graduated to one minute with a fifteen second accuracy vernier scale is provided. The rotary table has lock down clamps.
The tailstock is adjustable in height.
The dividing plate set consists of one plate with two sets of holes. One circle has 15 holes and the other has 28 holes. This lets you divide a circle into 1/3 degree increments, among many other combinations.
The 3 inch 4-Jaw independent lathe chuck includes a chuck key, reversible jaws, and mounting bolts.
The lathe chuck adapter lets you mount a 3" 3- or 4-jaw lathe chuck on a rotary table with a 2 Morse taper center hole. There is an alignment boss that projects into the tapered hole for quick alignment. It is clamped to the rotary table with T-slot nuts that are included.
Chris' TipsWe provide rotary table instructions and dividing plate instructions.
Here is some more information about using a rotary table written by one of our customers.
| Description | Qty | |
|---|---|---|
|
Dividing Plate Set for 4" Rotary Table, P/N 1811 | 1 |
|
Lathe Chuck, 4-Jaw 3", Independent, P/N 1175 | 1 |
|
Rotary Table, 4" Precision, P/N 1810 | 1 |
|
Tailstock for 4" Rotary Table, P/N 1812 | 1 |
Compatibility
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- Taig 2018 Micro Mill
- Taig 2019 Micro Mill
- Taig 5019 Micro Mill
- Prazi BF450 Mill
- Prazi BF400 Mill
- Clarke CMD10 Metalworker Micro Mill
- Harbor Freight 47158 Central Machinery Micro Mill
- SIEG X1 Micro Mill
- SIEG SX1 Micro Mill
- LittleMachineShop.com 4660 HiTorque Micro Mill
- LittleMachineShop.com 4700 HiTorque Micro Mill
- SIEG SX1P Micro Mill
- Grizzly G0758 Mill/Drill
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- BusyBee CX605 Craftex Mini Mill
- Cummins (Tools Now) 7877 Mini Mill
- Eastwood 32498 Mini Mill
- Harbor Freight 44991 Central Machinery Mill/Drill
- Homier 03947 Speedway Mini Mill
- Northern Tool 49657 KLUTCH Mini Mill
- Penn Tool Co XJ-9510-1 Precise Mini Mill
- SIEG X2-R8 Mini Mill
- Travers Tools OT2213 OTMT Mini Mill
- SIEG X2P Mini Mill
- LittleMachineShop.com 4962 SIEG Mini Mill
- SIEG X2D Mini Mill
- SIEG X2L Mini Mill
- WEN 33013 WEN Mini Mill
- SIEG X2LF Mini Mill
- BusyBee CX612 Craftex Mini Mill
- SIEG SX2 Mini Mill
- Micro-Mark 84630 MicroLux Mini Mill
- LittleMachineShop.com 3900 HiTorque Mini Mill
- SIEG SX2L Mini Mill
- LittleMachineShop.com 3960 HiTorque Mini Mill
- LittleMachineShop.com 4190 HiTorque Mini Mill
- LittleMachineShop.com 3990 HiTorque Mini Mill
- LittleMachineShop.com 6450 HiTorque Mini Mill
- SIEG SX2LF Mini Mill
- Grizzly G0781 Mill/Drill
- SIEG X2.7 Bench Mill
- SIEG X2.7L Bench Mill
- WEN 33075 WEN Bench Mill
- LittleMachineShop.com 5500 HiTorque Bench Mill
- LittleMachineShop.com 6500 HiTorque Bench Mill
- SIEG SX2.7 Bench Mill
- LittleMachineShop.com 5550 HiTorque Bench Mill
- LittleMachineShop.com 6550 HiTorque Bench Mill
- LittleMachineShop.com 6570 HiTorque Bench Mill
- SIEG SX2.7L Bench Mill
- Grizzly G0463 Mill/Drill
- Harbor Freight 93885 Central Machinery Mill/Drill
- SIEG X3 Small Mill
- Woodstock International M1110 Shop Fox Small Mill
- BusyBee CX611 Craftex Small Mill
- Grizzly G0619 Mill/Drill
- SIEG SX3 Small Mill
- Travers Tools OT2225SX3 OTMT Small Mill
- Grizzly G0759 Mill/Drill With Stand
- Grizzly G0704 Mill/Drill With Stand
- Grizzly G3102 Vertical Mill
- Grizzly G3103 Vertical Mill
- Harbor Freight 42976 Central Machinery Mill/Drill
- SIEG X3.5 Large Bench Mill
- LittleMachineShop.com 6700 HiTorque Large Bench Mill
- LittleMachineShop.com 6750 HiTorque Large Bench Mill
- LittleMachineShop.com 6770 HiTorque Large Bench Mill
