Vise, 4" Precision Milling, Professional Grade
- Totally enclosed heat treated screw
- High repeatability
- Detachable swivel base features easy to read divisions
- Hardened jaws
Part Number: 4733
Weight: 53.1 lb
Weight: 53.1 lb
Price: $299.95
Share this page:
http://lmscnc.com/4733
http://lmscnc.com/4733

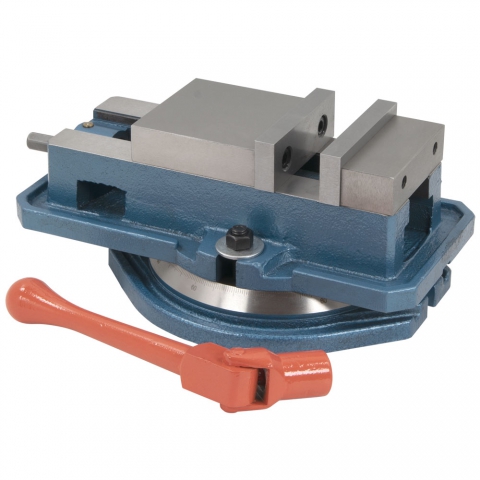

Precision 4" Kurt-style milling machine vise with swivel base.
The top, bottom of vise bed, gib, jaws, swivel base, and all plate mounting surfaces are ground.
The jaws are hardened and ground.
The detachable swivel base features easy to read divisions.
The replaceable jaws can be mounted on either end of the fixed and movable jaw supports providing a wide range of clamping distances.
| Jaw Width | 4.3" (110 mm) |
| Jaw Depth | 1.5" (37 mm) |
| Maximum Jaw Opening | 4.3" (110 mm) |
| Swivel Base | Yes |
| Weight | 50 lbs (23 kg) |
| Height with Base | 5.0" (127 mm) |
| Height w/o Base | 3.5" (90 mm) |
| Length | 12.8" (324 mm) |
| Width with Base | 9.2" (234 mm) |
| Width w/o Base | 6.2" (157 mm) |
| Hold-Down Mechanism | Yes |
| Ways Parallel to Bottom of Vise Within | 0.0003" in 4" (0.008 mm in 100 mm) |
| Jaws Perpendicular to Ways Within | 0.0004" in 4" (0.010 mm in 100 mm) |
