HiTorque 8.5x20 Deluxe Bench Lathe


HiTorque 8.5x20 Deluxe Bench Lathe
Part Number: 3595
Weight: 281 lb

Price: $2,349.95

This product is currently backordered.

Estimated availability:
13-May-2017
What is "estimated availability"?


Click this button if you want to receive an email notification when this product becomes available.


Share This Page
http://lmscnc.com/3595


Related Products

Tooling Packages
Tooling Packages

Accessories & Upgrades
Accessories & Upgrades

  • Digital dials, inch and metric threading
  • 120VAC 60 Hz
  • 1000 Watt (1.34 HP) brushless DC drive
  • Power longitudinal feed and power cross feed
  • 4" (100 mm) 3-jaw self centering lathe chuck

Description

The LittleMachineShop.com HiTorque 8.5x20 Bench Lathe is the best in its class. No other lathes in this size offer power cross feed.

The Deluxe model includes digital readouts on the cross slide and compound rest; an AXA quick change tool post set with five tool holders; anodized aluminum hand wheels, knobs, and levers with black anodizing in the hand wheels; and a heavy duty splash guard. In addition, the compound rest is modified to better accommodate a quick change tool post.

The 1000 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 100 rpm to 2000 rpm continuously in both directions. There are no gears to shift.

The cross feed and compound rest dials are graduated in 0.001" and advance 0.050" per turn. The lathe is equipped with a 4-way indexing tool post set for 10 mm tools.

A reversible 2 mm pitch lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.2 to 8 mm pitch with the change gears that are included. All the gears on this lathe are metal.

The LittleMachineShop.com model 3595 HiTorque 8.5x20 Bench Lathe is a version of the SIEG SC4 bench lathe.

*NOTE* We ship machines only to the US and Canada.

Chris' Tips

Chris Chris' Tips
View a comparison of the specifications for our lathes.

These machines have genuine NSK bearings. Getting genuine bearings in China is not easy as there are so many fakes around. We had SIEG contact the NSK factory to see where to purchase genuine NSK bearings that they could count on as not being fakes.

The HiTorque 8.5x16 and 8.5x20 Bench Lathes offer extended threading capabilities. Here's a document that explains how to set the change gears on the HiTorque Bench Lathes.

Here are data sheets for the machines that we sell.

Here are the user's guides for our machines.

Features

  • 1000 Watt output spindle motor
  • DRO on compound and cross feed
  • AXA quick change tool post set
  • Genuine NSK ball bearings
  • Induction hardened ways
  • Power longitudinal feed
  • Anodized aluminum hand wheels, knobs, and levers with black anodizing in hand wheels
  • Power cross feed
  • E-stop safety power switch
  • Extended threading capability - inch and metric threads
  • Cam lock tailstock
  • Zero-resettable dials graduated in inches and mm
  • Reversible lead screw for right and left hand threads

Specifications

Specifications
Swing Over Bed 8.5" (215 mm)
Swing Over Saddle 4.6" (118 mm)
Distance Between Centers 20" (510 mm)
Spindle Through Hole 0.8" (20 mm)
Spindle Motor Output 1.34 hp (1000 Watts)
Range of Threads 8-80 TPI (0.2-8.0 mm)
Spindle Taper #3 Morse taper
Tailstock Taper #2 Morse taper
Spindle Speed 100 - 2000 RPM
Cross Slide Travel 3.9" (100 mm)
Power Requirements 120 V 60 Hz 12 Amps
Crated Weight 281 lbs (128 kg)
Machine Weight 220 lbs (100 kg)
Overall Dimensions (W x D x H) 40" x 22" x 16" (1010 mm x 550 mm x 400 mm)
Crate Dimensions (W x D x H) 44" x 28" x 22" (1110 mm x 700 mm x 550 mm)

Photos

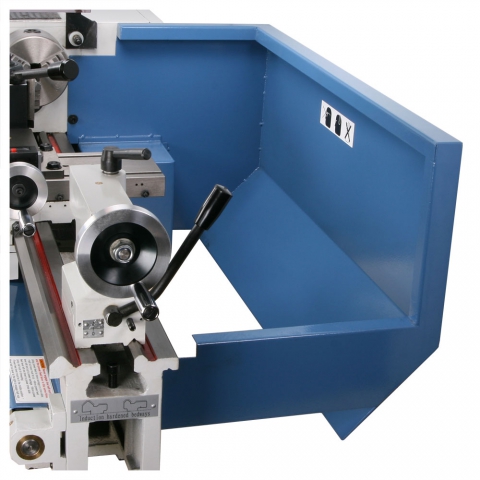

"Splash Guard - HiTorque 8.5x20 Bench Lathe Improved splash guard on the Deluxe HiTorque 8.5x20 Bench Lathe

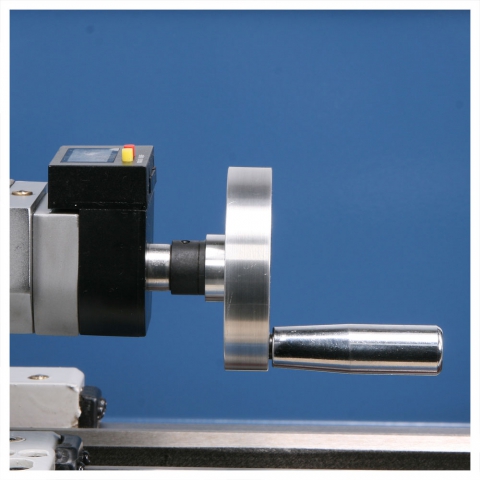

"AXA QCTP and DRO - HiTorque 8.5x20 Bench Lathe AXA Quick Change tool post, DRO and modified compound rest on Deluxe HiTorque 8.5x20 Bench Lathe
"AXA QCTP and DRO - HiTorque 8.5x20 Bench Lathe AXA Quick Change tool post, DRO and modified compound rest on Deluxe HiTorque 8.5x20 Bench Lathe

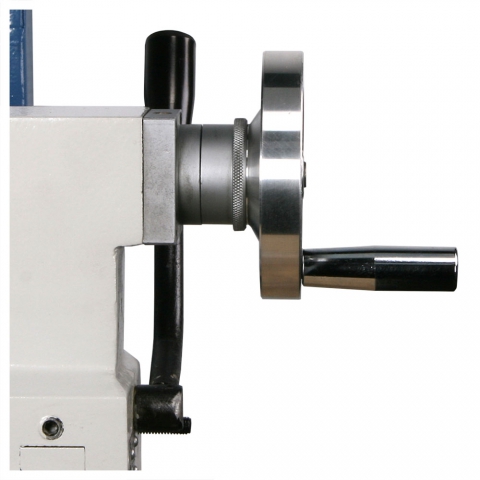

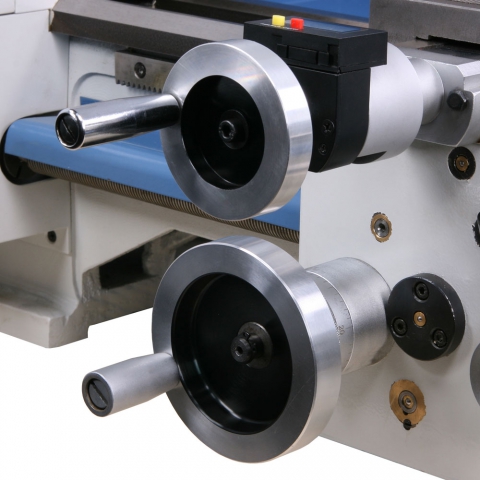

"Anodized aluminum hand wheels - HiTorque 8.5x20 Bench Lathe Anodized aluminum hand wheels, knobs and levers on Deluxe HiTorque 8.5x20 Bench Lathe
