Spindle Lock, Interlocked, HiTorque Mini Mill

         Made in United States
Spindle Lock, Interlocked, HiTorque Mini Mill
Part Number: 4762
Weight: 1.48 lb

Price: $119.00

In stock
Quantity:

Share This Page
http://lmscnc.com/4762


  • Makes tool changes easier, faster, and safer
  • When engaged, the plunger automatically drops into the locking hole as the spindle is rotated
  • An electro-magnetic interlock disables power to the motor when the spring plunger is engaged
  • Frees both hands for changing tools
  • Loosen and tighten keyless chucks with one hand

Description

The spindle brake provides a semi-automatic method of locking the spindle freeing both hands to complete a tool change. A safety switchdisables power to the motor when the spring plunger is engaged.

Fits SIEG SX2 mills

Chris' Tips

Chris Chris' Tips
Here are the installation instructions.

Features

  • Integral Safety Switch and hand-retractable Spring Plunger

  • Approximate dimensions: 4 x 3.5 x .75"

  • The Spindle Brake Plate is made of 6061-T6511 Aluminum

  • Made to exacting specifications in precision machining center

  • Made in the USA

Photos

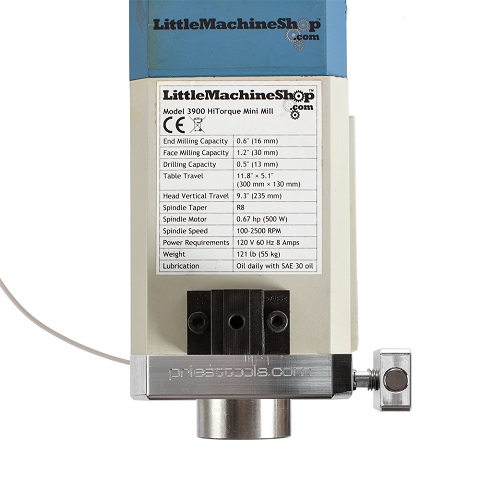

Spindle Brake installed on HiTorque spindle box

Spindle Brake installed on HiTorque spindle box

Spindle Brake installed on HiTorque spindle box

Spindle Brake installed on HiTorque spindle box

Compatibility

Compatibility

This product works with the following mills:

  •   SIEG X2/SX2 Mini Mill
  •   Grizzly G0781 Mini Mill
  •   Micro-Mark 84630 MicroLux R8 Milling Machine
  •   LittleMachineShop.com X2D SIEG Mini Mill
  •   LittleMachineShop.com 4962 SIEG Mini Mill
  •   LittleMachineShop.com 3990 HiTorque Mini Mill
  •   LittleMachineShop.com 3960 HiTorque Mini Mill
  •   LittleMachineShop.com 3900 HiTorque Mini Mill
  •   SIEG X2L/SX2L Mini Mill
  •   SIEG X2LF/SX2LF Mini Mill
