Special of the Week

Sale price good through Tuesday, September 23, 2014
Limit: One per customer

X-Y Table Assembly

$114.95 On Sale

Regularly $144.95

Save 21%

X-Y Table Assembly
This small precision X-Y table can be used on a drill press or other machine to precisely locate your workpiece.

The table is 90 mm (3.54") by 200 mm (7.87"). It has three 8 mm T-slots.

The complete X-Y Table assembly is 10.15" wide, 8.5" deep and 2.5" high.

The X-axis travel is 135 mm (5.31") and the Y-axis travel is 70 mm (2.76").

The height of the table is 60 mm (2.36").

The base is 100 mm (3.94") by 175 mm (6.89").

The dials are graduated in 0.001" and one turn of the hand wheels moves the table 0.050".

The X-Y table is made of cast iron and steel. There are adjustable gibs on both axes.

More information about this product

Chris Chris' Tips

Want to get an email notification every time we have a weekly special? Then click here to join our mailing list.



Check These Other Featured Products

Air Spring Conversion Kit
  • Converts torsion spring mini mills to air spring
  • Allows travel to the top of the column
  • Provides better support for the mill head

39.95

More products like this

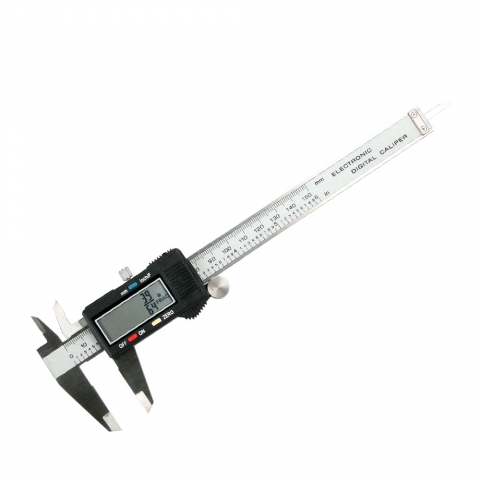

Electronic Digital Caliper, 6" Professional Quality
  • Z-Limit brand guarantees professional quality
  • Large, easy-to-read LCD display can be zeroed at any position
  • Automatic shut-off after 5 minutes of non-use, last measuring position retained when shut off
  • Hardened stainless steel body for long life, with fine adjustment thumb wheel
  • Resolution is 0.0005" (0.01mm) and linear accuracy meets DIN 862 standard

49.95

More products like this
SIEG C3 7x14 Mini Lathe
  • Full featured mini lathe at an incredible price
  • Includes 3" 3-jaw chuck, 2 sets of jaws, and chuck key
  • Variable speed with two speed ranges for low speed torque
  • Digital spindle speed readout
  • Cam-lock tailstock

599.95

Regularly 699.95

More products like this
Slitting Saw Blade, 1/16" thickness HSS
  • 3" Saw Diameter
  • 1" Hole Size
  • 30 Teeth
  • 1/16" Saw Thickness
  • High Speed Steel

8.95

Regularly 9.95

More products like this
Height Gage, Digital 6" Starrett
  • Starrett 0-6" (0-150 mm) range digital height gage
  • Starrett catalog number 3751AZ-6/150
  • Easy-to-read LCD with .32" high characters
  • Linear Accuracy: 0.001" (0.02mm)
  • Resolution: .0005" (0.01mm)

242.00

More products like this
Collet Closer, Lever for Sherline Lathe
  • Lever actuated collet closer
  • Uses Sherline WW collets

275.00

Regularly 295.00

More products like this
