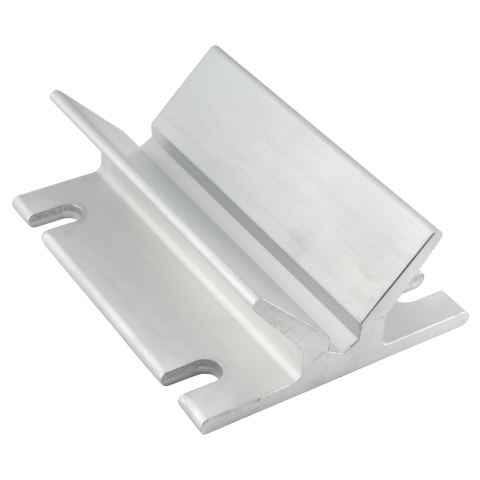

Center It V-Block

CENTER IT makes it easy to drill round stock and tubing
Bolts to the drill press table and enables the drilling of round pieces parallel and centered
Grooves on the outer sides eliminate slippage while holding by hand for sawing
Place CENTER IT on the drill press table, run the stationary bit down to center the fixture

Part Number: 2186
Weight: 1.05 lb

Price: $17.95

Share this page:
http://lmscnc.com/2186

CENTER IT is a tool for drilling pipe and other round objects. The CENTER IT v-block is made specifically for use in a drill press. No clamping of the tube is necessary since the angled flats of the jig hold it centered. Holes will automatically be centered on the tube with no center-punching required. If tubing is too large to drill in a single operation this drill press v-block can simply be turned over.

An essential aid for machinists, woodworkers, mechanics, and other shops. CENTER It v-block makes speedy and precise work of drilling tasks. Its "hand vise" grip ridges allow no-clamp holding of round stock for sawing and cutting.

Made of heavy aluminum extrusion, the CENTER IT v-block has four bolt down slots should you want to mount it to a table or heavy plate.

The CENTER IT drill press v-block is 5" Long, 4" Wide, and 1-3/4" High. The groove at the base of the V is 7/16" wide and has a 188 degree angle so you can bottom your drill to center.

Specifications

Specifications
Length	5.00" (127.0 mm)
Width	4.00" (101.6 mm)
Height	1.75" (44.4 mm)
Bolt Down Slots Width	0.39" (10.0 mm)
Bolt Down Slots Length	0.67" (17.0 mm)
Bottom Groove Width	0.4375" (11.112 mm)
Bottom Groove Angle At Bottom	118°

Photos

	End View
	Side view, grip surface visible
	In use on drill press

Compatibility

Compatibility

This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)

Bolton XJ-9510 Mill/Drill
Clarke CMD300 Milling Drilling Machine
Grizzly G8689 Mini Milling Machine
Hare & Forbes HM-10 Mill/Drill
Princess Auto 8507667 Powerfist Mini Mill
SIEG X2-MT3 Mini Mill
Micro-Mark 82573 MicroLux Milling Machine
BusyBee CX605 Craftex Mini Mill
Cummins (Tools Now) 7877 Mini Mill
Eastwood 32498 Mini Mill
Harbor Freight 44991 Central Machinery Mill/Drill
Homier 03947 Speedway Mini Mill
Northern Tool 49657 KLUTCH Mini Mill
Penn Tool Co XJ-9510-1 Precise Mini Mill
SIEG X2-R8 Mini Mill
Travers Tools OT2213 OTMT Mini Mill
SIEG X2P Mini Mill
LittleMachineShop.com 4962 SIEG Mini Mill
SIEG X2D Mini Mill
SIEG X2L Mini Mill
WEN 33013 WEN Mini Mill
SIEG X2LF Mini Mill
BusyBee CX612 Craftex Mini Mill
SIEG SX2 Mini Mill
Micro-Mark 84630 MicroLux Mini Mill
LittleMachineShop.com 3900 HiTorque Mini Mill
SIEG SX2L Mini Mill
LittleMachineShop.com 4190 HiTorque Mini Mill
LittleMachineShop.com 3990 HiTorque Mini Mill
LittleMachineShop.com 3960 HiTorque Mini Mill
SIEG SX2LF Mini Mill
Grizzly G0781 Mill/Drill
SIEG X2.7 Bench Mill
SIEG X2.7L Bench Mill
WEN 33075 WEN Bench Mill
LittleMachineShop.com 6500 HiTorque Bench Mill
LittleMachineShop.com 5500 HiTorque Bench Mill
SIEG SX2.7 Bench Mill
LittleMachineShop.com 5550 HiTorque Bench Mill
LittleMachineShop.com 6550 HiTorque Bench Mill
Grizzly G0463 Mill/Drill
Harbor Freight 93885 Central Machinery Mill/Drill
SIEG X3 Small Mill
Woodstock International M1110 Shop Fox Small Mill
BusyBee CX611 Craftex Small Mill
Grizzly G0619 Mill/Drill
SIEG SX3 Small Mill
Travers Tools OT2225SX3 OTMT Small Mill
Grizzly G0759 Mill/Drill With Stand
Grizzly G0704 Mill/Drill With Stand
Grizzly G3102 Vertical Mill
Grizzly G3103 Vertical Mill
Harbor Freight 42976 Central Machinery Mill/Drill
SIEG X3.5 Large Bench Mill
LittleMachineShop.com 6700 HiTorque Large Bench Mill
LittleMachineShop.com 6750 HiTorque Large Bench Mill
Grizzly G0720R Bench Mill
Grizzly G0722 Bench Mill
Grizzly G0720 Bench Mill
SIEG SX4 Bench Mill
Harbor Freight 33686 Central Machinery Small Mill
Rong Fu RF-xx Milling & Drilling Machine
BusyBee CX705 Craftex Lathe Mill Combo
Grizzly G0516 Lathe Mill Combo
SIEG M6 Multi-purpose Machine
