Digital Position Readout, 2-Axis DRO Pros Lathe 3929 (Discontinued)
- Easiest to use DRO on the market. More buttons, most intuitive layout--just walk up and operate
- 5 micron (0.0002") resolution. 1 micron (0.00005") resolution with inexpensive scale upgrade
- Full-color, clearly-written installation and users manuals, 3-year warranty
- SlimLine 20 mm x 28.5 mm (0.79" x 1.12") scales; you choose the length, up to 1000 mm (39.3")
- INCLUDE SCALE SIZES IN SPECIAL INSTRUCTIONS ON YOUR ORDER
Part Number: 3929 (Discontinued)
Weight: 40.0 lb
Weight: 40.0 lb
Price: $599.00

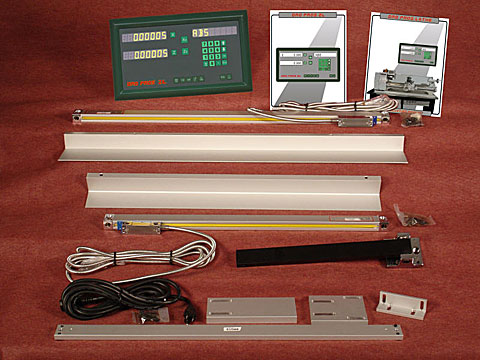

The DRO PROS 2L two-axis lathe package includes everything you need: the display head; 2 glass scales up to 1000 mm (39.3") travel; detailed installation instructions; a detailed full-color operator’s manual; 3-year warranty; display mounting arm; power cord; mounting hardware; and universal mounting brackets.
The package includes your choice of 19 different size scales ranging in travel from 100 mm (3.9") up to 1000 mm (39.3") in 50 mm increments. Optionally, you can choose 1 micron (0.00005") resolution scales for an additional $50.00 per scale.
Operates on 120V or 240V AC.
Chris' Tips
You have to tell us which scales you need. This is always based on your machine’s travel.
Here is how to measure your machine’s travel: With the machine off, position the machine to one end of its travel. With a grease pencil, make a mark across where the moving and stationary surfaces meet. The line should be half on the moving part and half on the stationary part. Next, move your machine to the opposite end of its travel, and then simply measure the distance between the marks.
Now, add ¾" to the distance you measured and convert it to mm by multiplying by 25.4. (Or, measure the distance in mm, and add 20 mm.) Round up to the next even 50 mm and that’s the scale you need.
Let’s look at an example:
Now repeat this procedure for the other axes on your machine.Scale-Based DRO Packages are designed to mount on any machine within the range of the scales. They all come with 'universal' mounting brackets. These mounting brackets are probably all you need to mount the DRO on large machines. On smaller machines (including mini lathes and mini mills) you will probably need to make some mounting brackets. Note that the Bluetooth DRO packages, except the universal models, come with all the brackets required for the machines they support. All scale-based DRO installations require drilling and tapping a number of holes in the machine.
The biggest challenge is usually the cross slide on small lathes and the X-axis on small mills. On small lathes, the answer is sometimes to mount the DRO scale hanging in space behind the cross slide. On small mills, the smaller cross section of the Shooting Star and the DRO Pros magnetic scales can make it significantly easier to mount the X-axis scale behind the table without restricting the table travel. Glass scales are a challenge to mount on small machines.
|
5.63" |
143 mm |
|
0.75" |
20 mm |
|
6.38" |
163 mm |
|
162 mm |
|
|
200 mm |
200 mm |
Resolution | 5 μm, 0.005 mm, 0.0002" |
Specified Accuracy | 6 μm, 0.006 mm, 0.0002" / 50 mm travel |
Accuracy / Foot | 0.0014" (0.036 mm) |
Accuracy / 100 mm | 0.0005" (0.012 mm) |
Scales Cut to Length by User | No |
Scale Technology | Glass |
Scale Protection | Coolant & dust resistant |
Voltage | 120-240 V |
Clear to Zero | Yes |
Direct Entry of Position | Yes |
Inch/mm Display | Yes |
Power Off Memory | Yes |
Reversible Count Direction | Yes |
Find Center | Yes |
Bolt Circles | Yes |
Bolt Lines | Yes |
Preset Points | No |
Tool Offsets | No |
Radius/Diameter | Yes |
Incremental/Absolute | Yes |
Calculator | Yes |
Arc machining | Yes |
Linear Error Compensation | Yes |
Made in | China |
Warranty | 3 years |
Phone Tech Support | Free |
This item ships directly from our supplier in California to you. It might
be a day or two longer before it ships, and you will receive it in a separate
package from other items on your order. You might receive this item a few
days before or a few days after you receive items shipped from our warehouse.
