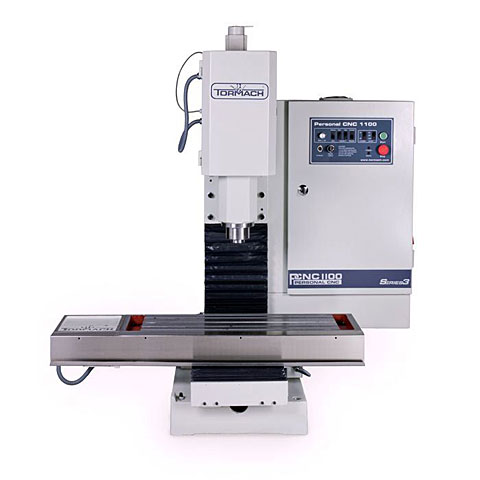

Tormach PCNC 1100 Series 3 | Personal CNC Machine (Discontinued)
- Personal CNC machine
- Vector technology spindle drive 1100W continuous, 2800W peak
- Table size: 34" x 9.5"
- Travel: 18" x 9.5" x 16.25" (X, Y, Z-Axis)
- High performance stepper motors with microstepping drivers
The machine’s design is focused on the needs of prototyping, R&D, and small shop operations. The open design is better suited to combined manual and automatic operations than an enclosed VMC (vertical machining center), yet when combined with the Tormach machine stand you still have good chip and coolant containment and a clean shop. By limiting rapid motion to less than 100 IPM the machine is not only lower in cost, but also safer to operate. By replacing a conventional ATC (automatic tool changer) with the quick change Tormach Tooling System, the machine is both easier to afford and easier to maintain. Tooling cost is significantly lower, yet the tool change time is still less than 30 seconds. The Tormach PCNC 1100 Series 3 is built to industrial standards and perfectly suited to work cells in a lean manufacturing environment or dedicated secondary operations.
The Tormach PCNC 1100 Series 3 is PC controlled, allowing your CAD and CAM software to coexist with the CNC control program. A single workstation takes your idea from concept to completion. Again, this reduces your machine cost and improves overall turnaround time. The control system uses standard industrial components and interfaces. This approach minimizes the initial cost, reduces maintenance cost, and virtually eliminates any risk of obsolescence. The combined effect gives you a highly reliable product with a low cost of ownership.
|Table Size||34.0" x 9.5" (864 mm x 241 mm)|
|T-Slots||3 slots 0.62" (15.9 mm) wide|
|X-Axis Travel||18.0" (457 mm)|
|Y-Axis Travel||9.5" (241 mm)|
|Z-Axis Travel||16.25" (412.8 mm)|
|Throat||11.0" (279 mm)|
|Spindle Motor||1.5 hp (1119 Watts)|
|Spindle Speed||100 - 5140 RPM|
|Maximum Feed Rate x- and Y-Axis||110 in/min (2794 mm/min)|
|Maximum Feed Rate Z-Axis||90 in/min (2286 mm/min)|
|Power Requirements||230 VAC single phase 50/60 Hz|
|Typical System Footprint (Incl. Stand)||80" x 45" x 82" (2032 mm x 1143 mm x 2083 mm)|
|Machine Weight||1130 lbs (514 kg)|
|Shipping Weight||1296 lbs (589 kg)|
