SIEG C3 7x14 Mini Lathe
- Full featured miniature lathe at an incredible price
- Includes 3" 3-jaw chuck, 2 sets of jaws, and chuck key

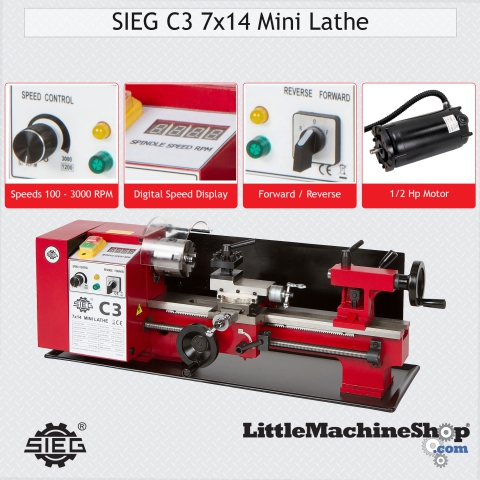

- Variable speed with two speed ranges for low speed torque

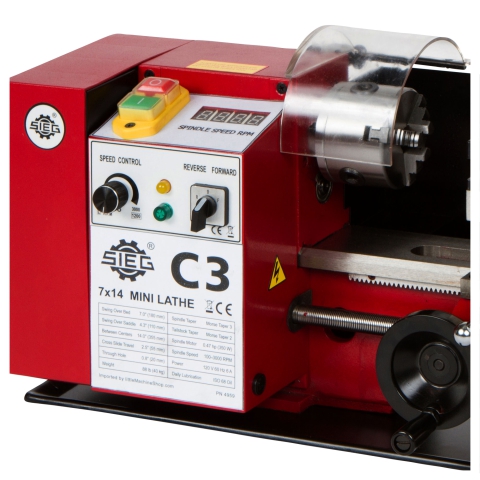

- Digital spindle speed readout

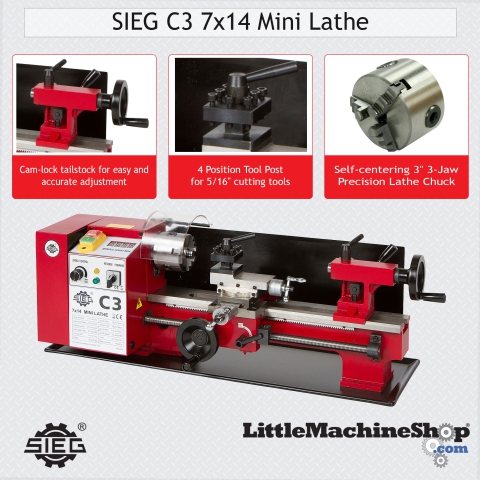

- Cam-lock tailstock
Weight: 124 lb
Regularly $999.00
http://lmscnc.com/4959

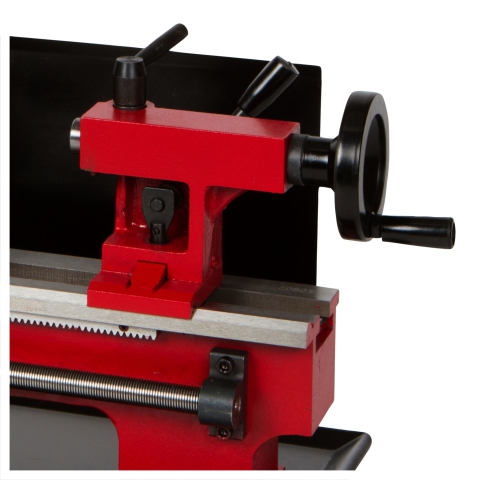

Full 14" bed length with a cam-lock tailstock for your longer work pieces.

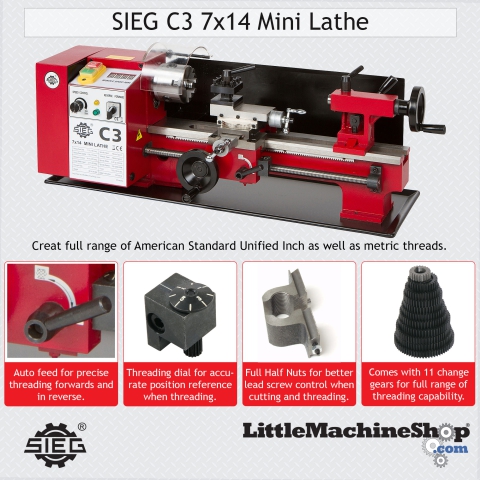

Real top and bottom half-nuts and a reversible 16 TPI lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.3 to 8 mm pitch.

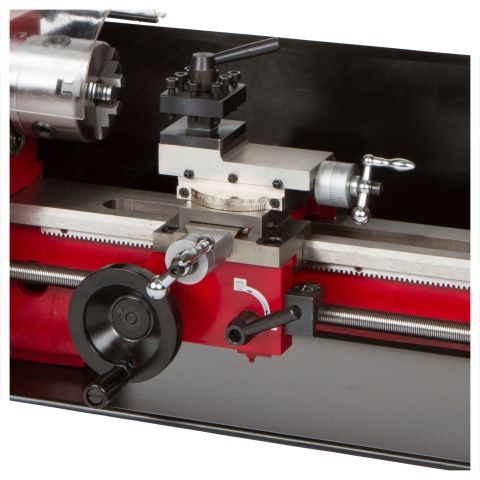

The cross feed and compound rest dials are graduated in 0.001" and 0.025 mm. The miniature lathe is equipped with a 4-way indexing tool post set for 5/16" (8 mm) tools.
The SIEG C3 7x14 Mini Lathe includes a chip tray, a backsplash guard, and a threading dial.

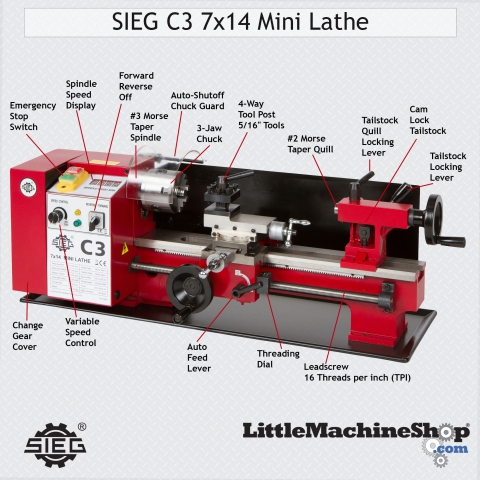

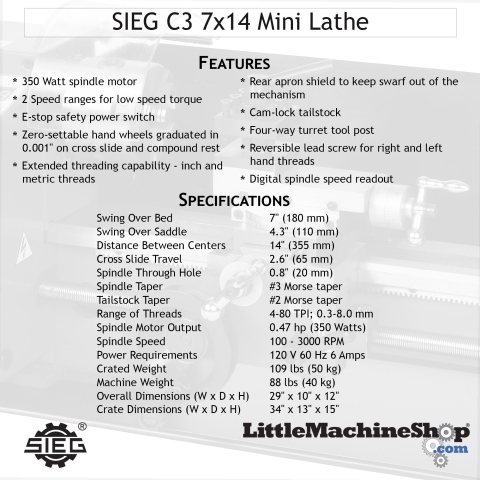

Chris' Tips- 350 Watt spindle motor
- 2 Speed ranges for low speed torque
- E-stop safety power switch
- Zero-settable hand wheels graduated in 0.001" on cross slide and compound rest
- Extended threading capability - inch and metric threads
- Rear apron shield to keep swarf out of the mechanism
- Cam lock tailstock
- Four-way turret tool post
- Reversible lead screw for right and left hand threads
- Digital spindle speed readout
| Swing Over Bed | 7" (180 mm) |
| Swing Over Saddle | 4.3" (110 mm) |
| Distance Between Centers | 14.0" (355 mm) |
| Spindle Through Hole | 0.8" (20 mm) |
| Spindle Motor Output | 0.5 hp (350 Watts) |
| Range of Threads | 4-80 TPI (0.3-8 mm) |
| Spindle Taper | #3 Morse taper |
| Tailstock Taper | #2 Morse taper |
| Spindle Speed | 100 - 3000 RPM |
| Cross Slide Travel | 2.6" (65 mm) |
| Power Requirements | 120 V 60 Hz 6 Amps |
| Crated Weight | 109 lbs (50 kg) |
| Machine Weight | 88 lbs (40 kg) |
| Overall Dimensions (W x D x H) | 29" x 10" x 12" (740 mm x 260 mm x 300 mm) |
| Crate Dimensions (W x D x H) | 34" x 13" x 15" (860 mm x 335 mm x 375 mm) |

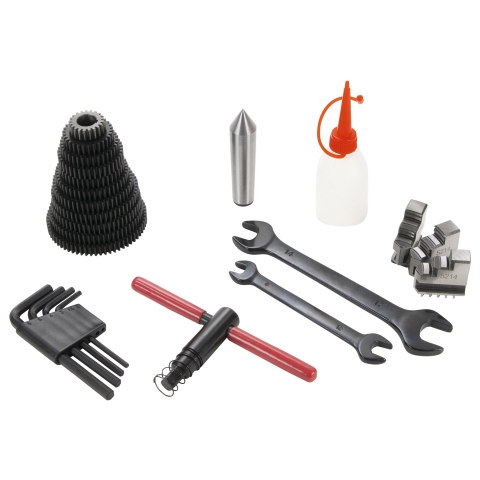

The SC3 Mini Lathe comes with the following:

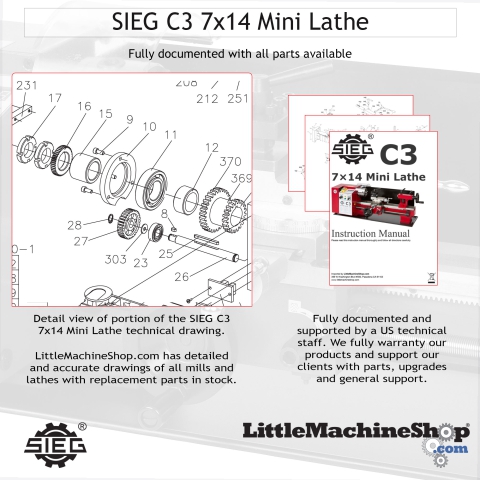

- Mini Lathe Users Guide
- 3" (80 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
- A Morse taper #2 dead center for the tailstock

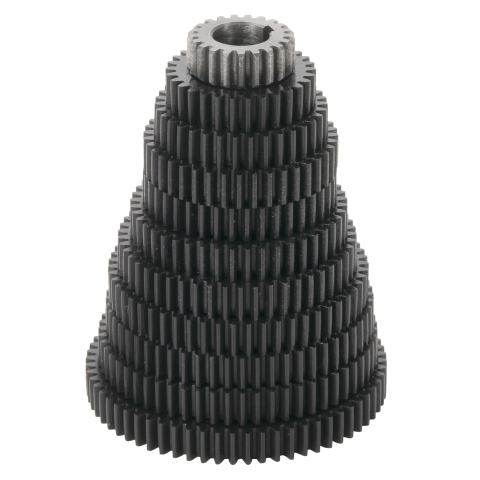

- An 11-gear change gear set that includes a 21 tooth gear for accurate metric threading
- Two open end wrenches
- Four hex (Allen) wrenches
- A plastic oil can
These machines ship by truck because they are simply too heavy and bulky for UPS Parcel Service. We normally ship truck orders a day or two after we receive the order. We add the following shipping cost to your order total:
| Local | Far West | Other Continental US | |
| Delivery to commercial address | $59 | $115 | $145 |
| Delivery to school or secured location | $79 | $155 | $175 |
| Liftgate, additional | Incl. | $20 | $20 |
| Delivery to freight terminal | $115 | $115 | $145 |
| Delivery to residential address (includes liftgate) | $79 | $175 | $195 |
"Local" refers to the parts of Southern California served by Hollywood Delivery Service.
"Far West" refers to ten western states: CA, OR, WA, AZ, NV, ID, UT, NM, CO, WY.
For delivery to Alaska, Hawaii, or Puerto Rico, we will check with several trucking companies to get the best price and then call for your approval before we ship.
We ship machines only to the US and Canada.
Canadian Shipments
Truck Freight shipping to Canada involves 3 distinct charges in addition to the product costs. (All amounts are in US Dollars, see the current mid-market exchange rate.)
- Canadian Provincial Taxes (GST, PST, HST) depending on which province the shipment is going to. This will be 5% - 15% added to total sales amount depending on province (Canadian Sales Tax).
- Hemisphere Customs Brokerage which handles all customs clearance requirements. This is a flat fee of $108 on any shipment.
- Truck Freight from Southern California to destination in Canada. This is generally $300-$500 for residential liftgate delivery and appointment for single machine + tooling orders. Delivery to a terminal for pick-up or a commercial location with loading capabilities can reduce this cost substantially.
Quotes
To get a quotation that includes the shipping costs, add the products you want to the shopping cart and continue the checkout process until you reach the Payment page. On the Payment page, select the Quotation option. We will add the shipping costs and return a complete quotation to you within one business day.
Notes
- The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second (and third) machine, up to 700 pounds total.
- A "commercial address" has a company name, a public entrance and posted hours of operation. If you do not have a forklift or loading dock at your place of business, you must add the liftgate fee. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.
- Schools, colleges, universities, university hospitals, military bases, government facilities and other secured locations are charged a limited access fee that is included in the amounts in the chart above.
- If you choose Terminal Pickup, and there is not a terminal within 30 miles, we will confirm with you that you still want Terminal Pickup.
- Liftgate service is included in the residential delivery fee. The trucking company will call you to schedule the delivery.
We offer inside delivery which gets the machine inside one doorway or into your garage:
| Local | Far West | Other Continental US | ||
| Inside Delivery | Gets the machine inside 1 threshold Includes liftgate service |
$50 | $75 | $75 |
