Digital Position Readout, 3-Axis Bluetooth for Mini Mill

Fits most tilting column mini mills
Displays on any Android tablet with Bluetooth capability
Resolution of 0.0002" (0.005 mm)
120 -240 VAC Power supply
Coolant and dust resistant (IP50)

Part Number: 5492
Weight: 4.58 lb

Price: $499.95

Share this page:
http://lmscnc.com/5492

This magnetic technology mini mill DRO package fits most tilting column mini mills.

This package includes what you need to put a DRO on most mini mills. This 3-axis digital readout for milling machines includes a three scales, three read heads, a Bluetooth transceiver and all the mounting brackets and hardware.

You must also get an Android tablet for the display on this DRO. We recommend a 7" screen size, and the tablet must have Bluetooth capability.

Chris' Tips

Chris' Tips
Here are instructions for mounting the DRO on a mini mill.

While we sell an Android Tablet with the DRO software installed, you can use most any Android tablet that supports Bluetooth with the Bluetooth DROs that we sell.

Here's how to get going:

On your Android tablet, go to Bluetooth Settings and Pair the DRO to your tablet. The name of the DRO is HC-06 or BT04-E. The PIN is 1234.
Go to the Google Play Store and install Yuriy's Toys TouchDRO.
When you launch TouchDRO and tap Connect in the upper right corner.

Specifications

Specifications
Repeatability	0.0002" (0.005 mm)
Resolution	0.0002" (0.005 mm)
Specified Accuracy	0.0020" (0.050 mm) / 1 m travel
Accuracy / Foot	0.0020" (0.050 mm)
Accuracy / 100 Mm	0.0020" (0.050 mm)
Scales Cut to Length by User	Yes
Scale Technology	Magnetic
Scale Protection	Coolant & dust resistant
Voltage	120-240 V
Voltage	100-240 V
Clear to Zero	Yes
Direct Entry of Position	Yes
Inch/mm Display	Yes
Power Off Memory	No
Reversible Count Direction	Yes
Find Center	Yes
Bolt Circles	Yes
Bolt Lines	Yes
Preset Points	Yes
Tool Offsets	Yes
Radius/Diameter	Yes
Incremental/Absolute	Yes
Calculator	No
Arc Machining	No
Linear Error Compensation	No
Made In	China
Warranty	1 years
Warranty	1 year
Phone Tech Support	Free

Photos

Screenshots of 3-Axis Mini Mill Digital Position Readout

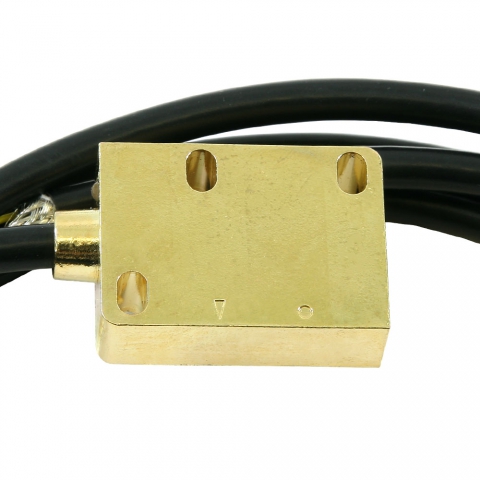

	Read head detail

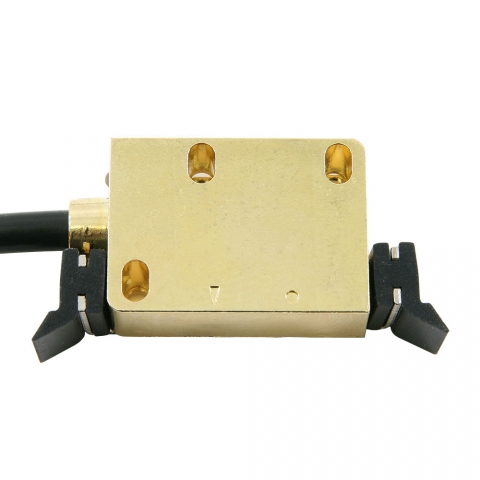

	Read head in mounting bracket

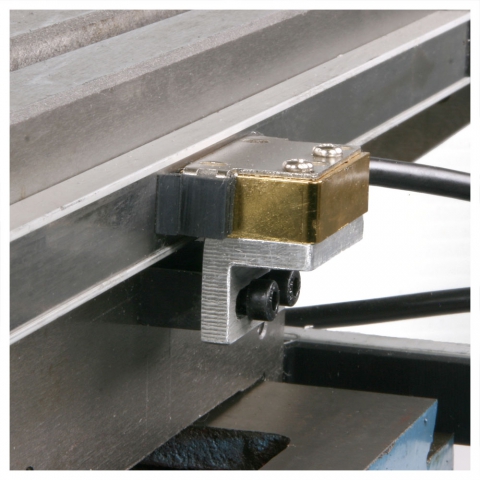

	Typical mounting of read head

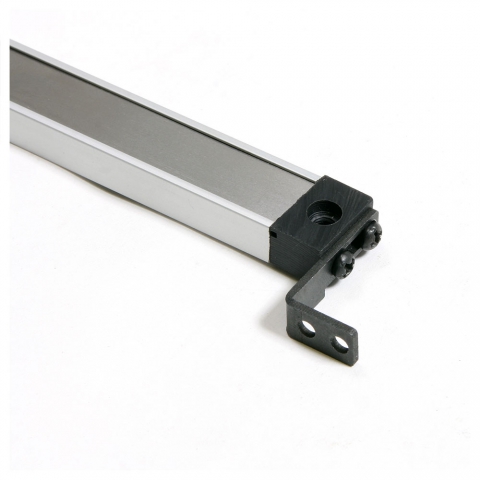

	Mounting end of scale

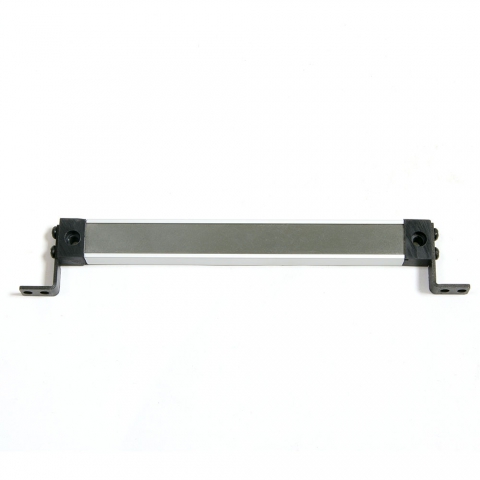

	Close-up short scale in brackets

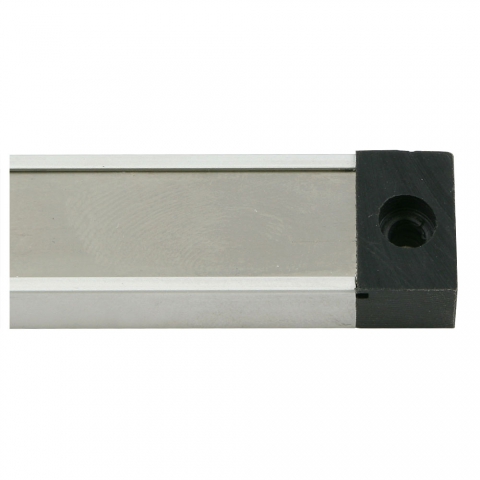

	Detail of scale end with bracket attached
