HiTorque 8.5x20 Bench Lathe 3540  (Discontinued)


HiTorque 8.5x20 Bench Lathe
Part Number: 3540  (Discontinued)
Weight: 281 lb

Price: $1,799.95

This product is currently backordered.

Estimated availability:
Unknown
What is "estimated availability"?


Click this button if you want to receive an email notification when this product becomes available.



Share this page:
http://lmscnc.com/3540


Related Products

Tooling Package
Tooling Package

Accessories & Upgrades
Accessories & Upgrades

  • Inch dials, inch and metric threading
  • 120VAC 60 Hz
  • 1000 Watt (1.34 HP) brushless DC drive
  • Power longitudinal feed and power cross feed
  • 4" (100 mm) 3-jaw self centering lathe chuck

Chris' Tips

Chris Chris' Tips
DISCONTINUED - This HiTorque Mini Lathe has been replaced by the 7500 HiTorque 8.5x20 Deluxe Bench Lathe. All the great features of 3540, plus a new, improved control panel and a heavy-duty splash guard.

View a comparison of the specifications for our lathes.

These machines have genuine NSK bearings. Getting genuine bearings in China is not easy as there are so many fakes around. We had SIEG contact the NSK factory to see where to purchase genuine NSK bearings that they could count on as not being fakes.

The HiTorque 8.5x20 Bench Lathes offer extended threading capabilities. Here's a document that explains how to set the change gears on the HiTorque Bench Lathes.

Here are data sheets for the machines that we sell.

Here are the users guides for the machines we sell.

Features

Features newly updated for the model 7500 lathe

  • 1000 Watt output spindle motor with spindle speed display
  • Genuine NSK bearings
  • Metal gears
  • Induction hardened ways
  • Power longitudinal feed
  • Power cross feed
  • E-stop safety power switch
  • Spindle on-off button
  • Forward/reverse button for spindle and lead screw direction
  • Reversible lead screw allows for right- and left-hand threading
  • Extended threading capability - inch and metric threads
  • Zero-resettable dials graduated at 0.001" and advancing 0.050" per turn
  • Cam-lock tailstock
  • Four-way tool post
  • 4" (100 mm) 3-jaw self centering lathe chuck

Specifications

Specifications
Swing Over Bed 8.5" (215 mm)
Swing Over Saddle 4.6" (118 mm)
Distance Between Centers 20" (510 mm)
Spindle Through Hole 0.8" (20 mm)
Spindle Motor Output 1.34 hp (1000 Watts)
Range of Threads 8-80 TPI (0.2-8.0 mm)
Spindle Taper #3 Morse taper
Tailstock Taper #2 Morse taper
Spindle Speed 100 - 2000 RPM
Cross Slide Travel 3.9" (100 mm)
Power Requirements 120 V 60 Hz 12 Amps
Crated Weight 281 lbs (128 kg)
Machine Weight 220 lbs (100 kg)
Overall Dimensions (W x D x H) 40" x 22" x 16" (1010 mm x 550 mm x 400 mm)
Crate Dimensions (W x D x H) 44" x 28" x 22" (1110 mm x 700 mm x 550 mm)

Photos

3540 HiTorque Bench Lathe 3540 Hitorque Bench Lathe

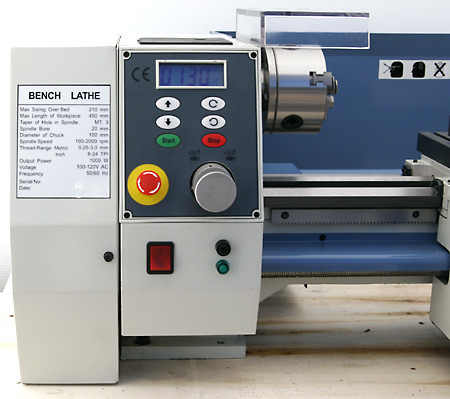

3540 HiTorque Bench Lathe Control Panel 3540 Hitorque Bench Lathe Control Panel

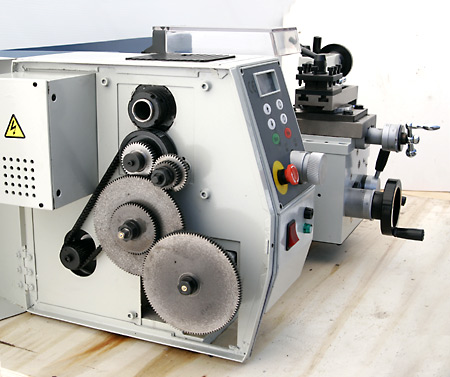

3540 HiTorque Bench Lathe Change Gears 3540 Hitorque Bench Lathe Change Gears

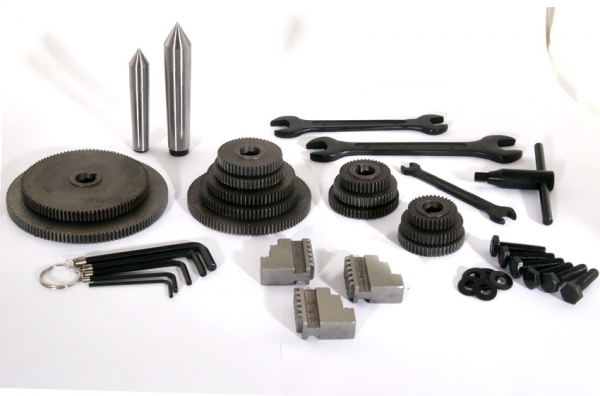

3540 HiTorque Bench Lathe Included Accessories 3540 Hitorque Bench Lathe Included Accessories
"Stand Cabinet HiTorque Bench Lathe Stand Cabine



Contents

The Bench Lathe comes with the following:

  • 4" (100 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
  • 4-Way rotating tool post
  • A #3 Morse taper dead center for the headstock
  • A #2 Morse taper dead center for the tailstock
  • Change gear set
  • Three open end wrenches
  • Five hex (Allen) wrenches

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

Shipping

These machines ship by truck because they are simply too heavy and bulky for UPS Parcel Service. We normally ship truck orders a day or two after we receive the order. We add the following shipping cost to your order total:

  Local Far West Other Continental US
Delivery to commercial address $59 $115 $145
Delivery to school or secured location $79 $155 $175
Liftgate, additional Incl. $20 $20
Delivery to freight terminal $115 $115 $145
Delivery to residential address (includes liftgate) $79 $175 $195

"Local" refers to the parts of Southern California served by Hollywood Delivery Service.

"Far West" refers to ten western states: CA, OR, WA, AZ, NV, ID, UT, NM, CO, WY.

For delivery to Alaska, Hawaii, or Puerto Rico, we will check with several trucking companies to get the best price and then call for your approval before we ship.

We ship machines only to the US and Canada.

Canadian Shipments

Truck Freight shipping to Canada involves 3 distinct charges in addition to the product costs. (All amounts are in US Dollars, see the current mid-market exchange rate.)

  1. Canadian Provincial Taxes (GST, PST, HST) depending on which province the shipment is going to. This will be 5% - 15% added to total sales amount depending on province (Canadian Sales Tax).
  2. Hemisphere Customs Brokerage which handles all customs clearance requirements. This is a flat fee of $108 on any shipment.
  3. Truck Freight from Southern California to destination in Canada. This is generally $300-$500 for residential liftgate delivery and appointment for single machine + tooling orders. Delivery to a terminal for pick-up or a commercial location with loading capabilities can reduce this cost substantially.

Quotes

To get a quotation that includes the shipping costs, add the products you want to the shopping cart and continue the checkout process until you reach the Payment page. On the Payment page, select the Quotation option. We will add the shipping costs and return a complete quotation to you within one business day.

Notes

  • The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second (and third) machine, up to 700 pounds total.
  • A "commercial address" has a company name, a public entrance and posted hours of operation. If you do not have a forklift or loading dock at your place of business, you must add the liftgate fee. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.
  • Schools, colleges, universities, university hospitals, military bases, government facilities and other secured locations are charged a limited access fee that is included in the amounts in the chart above.
  • If you choose Terminal Pickup, and there is not a terminal within 30 miles, we will confirm with you that you still want Terminal Pickup.
  • Liftgate service is included in the residential delivery fee. The trucking company will call you to schedule the delivery.

We offer inside delivery which gets the machine inside one doorway or into your garage:

  Local Far West Other Continental US
Inside Delivery Gets the machine inside 1 threshold
Includes liftgate service
$50 $75 $75
