HiTorque Mini Mill


HiTorque Mini Mill
Part Number: 3990
Weight: 176 lb

Price: $895.95

In stock
Quantity:

Share This Page
http://lmscnc.com/3990


Related Products

Tooling Packages
Tooling Packages

Accessories & Upgrades
Accessories & Upgrades

  • Most powerful mini mill machine in its class
  • Most low-speed torque in its class
  • No gears in spindle drive
  • Largest table and X-Y travel in its class
  • R8 spindle and drill chuck

Description

The LittleMachineShop.com HiTorque Mini Mill is the best in its class. It has the most power, most torque, and a larger table than other mills in its class.

This mill has a solid column. It does not tilt from side to side. This construction is significantly stiffer than the tilting column on other mini mills. This model also includes the air spring head support for even support through the Z-axis range of travel.

The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 50 rpm to 2500 rpm continuously. There are no gears to shift. And, with no gears, the HiTorque Mini Mill machine is the quietest in its class.

The large mill table provides 50% more table area than other mini mills. It also has 30% more travel in each direction. The resettable feed dials allow you to zero them at any point.

The HiTorque Mini Mill has drill press handles for drilling and fast motion of the mill's head. It also has Z-axis fine feed with 0.001" resolution for milling operations.

*NOTE* We ship machines only to the US and Canada.

Sale!

No tab to display.

Chris' Tips

Chris Chris' Tips
You can compare the specifications for our mills.

Mini-Lathe.com has a review of our solid column mill.

The solid column is much more rigid than the tilting column.

Some people may feel that the tilting column is a feature, but I have used a mini mill for 10 years and never tilted the column on purpose.


Let's compare the LittleMachineShop.com Solid Column HiTorque Mini Mill to mini mills with a tilting column.

The tilting column on other folk's mini mills tilts 45 degrees from side to side. This has several advantages. First, it is possible to make some angled cuts. It's also easy to tram in the X-axis. One user (and only one) has described to me a cut that was impossible to make any way but using a tilting column.

This mill has a solid column. While it is harder to tram in the X-axis because you must use shims, it is not as easy to knock it out of tram as the tilting column mini mill. The solid column has thicker walls than the tilting column, and a stiffer joint where it joins the base, so the column is significantly more rigid than the tilting column.

LittleMachineShop.com no longer sells mills with a tilting column. That is an indication of how much better the solid column is.

Here are data sheets for the machines that we sell.

Here's what you need to convert the HiTorque Mini Mill to CNC. (But be sure you look at the CNC milling machines that we sell before you start).

Here are the user's guides for our machines.

Features

  • 500 Watt output spindle motor
  • Large X-Y table
  • R8 Spindle for wide tool availability
  • Solid column that does not tilt
  • Gas strut provides even support through the Z-axis range
  • Dovetail column maintains head alignment at any height
  • Fine feed on Z-axis for precise control
  • Three radial handles for drilling
  • E-stop safety power switch
  • Adjustable Z-axis stop for repetitive drilling
  • Neoprene bellows protect horizontal ways
  • Adjustable gibs on all dovetail ways
  • Includes R8 to 33JT drill chuck arborĀ and 1/2" drill chuckĀ

Specifications

Specifications
End Milling Capacity 0.6" (16 mm)
Face Milling Capacity 1.2" (30 mm)
Drilling Capacity 0.5" (13 mm)
Table Size 18.1" x 4.7" (460 mm x 120 mm)
T-slots 3 slots 0.47" (12.0 mm) wide
X-Axis Travel 11.8" (300 mm)
Y-Axis Travel 5.1" (130 mm)
Z-Axis Travel 10.6" (270 mm)
Throat 6.5" (165 mm)
X- and Y-Axis Feed Screws 0.062" (1.59 mm) per rotation
Head Tilt None
Positioning Accuracy 0.0004" (0.010 mm)
Spindle Taper R8
Spindle Motor 0.67 hp (500 Watts)
Spindle Speed 100 - 2500 RPM
Power Requirements 120 V 60 Hz 8 Amps
Machine Weight 124 lbs (56 kg)
Base Dimensions (W x D) 8.5" x 14.2" (216 mm x 362 mm)
Mounting Holes Center to Center (W x D) 7.09" x 11.81" (180.0 mm x 300.0 mm)
Overall Dimensions (W x D x H) 23.2" x 19.7" x 36.3" (590 mm x 500 mm x 922 mm)
Crated Weight 161 lbs (73 kg)
Crate Dimensions (W x D x H) 23.6" x 25.0" x 29.9" (600 mm x 635 mm x 760 mm)

Photos

HiTorque Mini Mill 3990 HiTorque Mini Mill

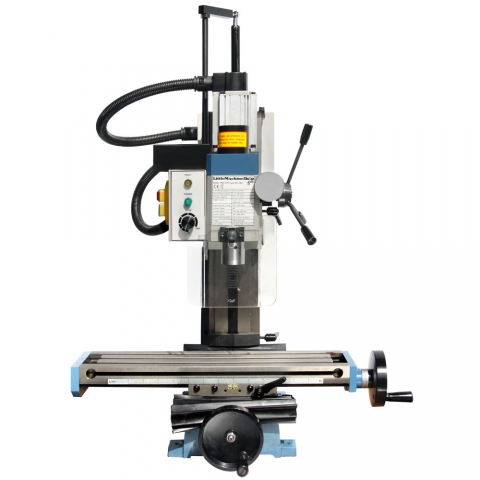

HiTorque Mini Mill Front View Front View

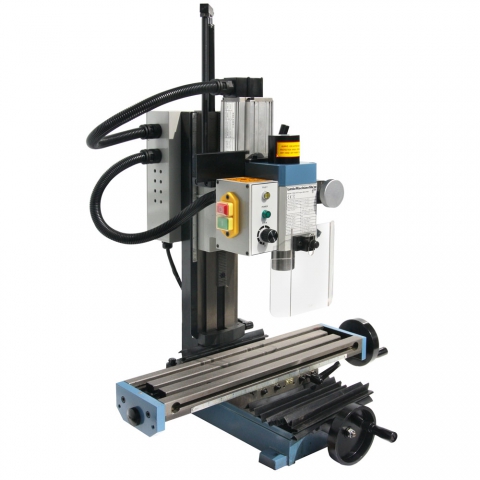

HiTorque Mini Mill Side View Side View

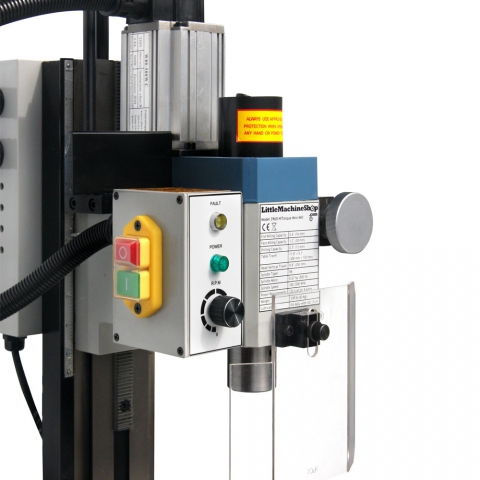

HiTorque Mini Mill Control Box Control Box
Solid Column Base Solid Column Rigid Base
Solid Column Base from Back Back View Solid Column Rigid Base
"The solid column on the left The solid column on the left, tilting column on the right. The solid column has significantly thicker walls



Contents

The HiTorque Mini Mill comes with the following:

  • Mini Mill Users Guide written by Chris Wood
  • Two T-slot nuts
  • Two end wrenches
  • Four hex (Allen) wrenches
  • One spanner wrench
  • Oil can (plastic)
  • One 1/2" drill chuck and R8 arbor

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

Shipping

These machines ship by truck because they are simply too heavy and bulky for UPS Parcel Service. We normally ship truck orders the day after we receive the order. We add the following shipping cost to your order total:

. Local Far West Other Continental US
Delivery to commercial address $59 $115 $145
Delivery to school or secured location $79 $155 $175
Liftgate, additional Incl. $20 $20
Delivery to freight terminal $115 $115 $145
Delivery to residential address (includes liftgate) $79 $175 $195

"Local" refers to the parts of Southern California served by Hollywood Delivery Service.

"Far West" refers to ten western states: CA, OR, WA, AZ, NV, ID, UT, NM, CO, WY.

For delivery to Alaska, Hawaii, or Puerto Rico, we will check with several trucking companies to get the best price and then call for your approval before we ship.

For Canadian shipments we will provide an all-inclusive quotation for shipping, brokerage, and taxes. The brokerage fees are $108. The taxes vary by province. If you have a customs broker or want to self-clear customs please let us know.

We ship machines only to the US and Canada.

The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second (and third) machine, up to 700 pounds total.

A "commercial address" has a company name, a public entrance and posted hours of operation. If you do not have a forklift or loading dock at your place of business, you must add the liftgate fee. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.

Schools, colleges, universities, university hospitals, military bases, government facilities and other secured locations are charged a limited access fee that is included in the amounts in the chart above.

If you choose Terminal Pickup, and there is not a terminal within 30 miles, we will confirm with you that you still want Terminal Pickup.

Liftgate service is included in the residential delivery fee. The trucking company will call you to schedule the delivery.

We offer inside delivery, machine placement and stand assembly services at extra cost:

Inside Delivery Gets the machine inside 1 threshold
Includes liftgate service
$20 $75 $75
Machine Placement Includes all Inside Deliver services
Notification of arrival
Move the machine to any room within reason
Uncrate the machine
Place it on a table or bench
Haul away crate and debris
N/A $150 $150
Stand Assembly Includes all Machine Placement services
Unpack the stand.
Assemble the stand
Mount machine on the stand
N/A $250 $250

These services do not include bringing the items up any stairs. An elevator is needed. There is no machine testing included. This is only for unpacking and placing the machine. Any clean-up of grease, and such is your responsibility.
