Most powerful mill in its class with the most low speed torque
No gears in spindle drive
Largest table and X-Y travel in its class
R8 spindle and drill chuck
The Model 4190 Deluxe HiTorque Mini Mill for sale has all the features of our popular Model 3990 HiTorque Mini Mill, plus:
* 3-axis digital readout (DRO) with Bluetooth and 7" tablet display. The DRO is completely installed on the mill.
* Electrically interlocked spindle lock
* Machined aluminum handwheels and color keyed drill handles
The LittleMachineShop.com HiTorque Mini Mill for sale is the best in its class. It has the most power, most torque, and a larger table than other mills in its class.
This mini milling machine has a solid column. It does not tilt from side to side. This construction is significantly stiffer than the tilting column on other mini mills. This model also includes the air spring head support for even support through the Z-axis range of travel.
The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 50 rpm to 2500 rpm continuously. There are no gears to shift. And, with no gears, the HiTorque Mini Mill is the quietest in its class.
The large mill table provides 50% more table area than other mini mills. It also has 30% more travel in each direction. The resettable feed dials allow you to zero them at any point.
The HiTorque mini milling machine for sale has drill press handles for drilling and fast motion of the mill's head. It also has Z-axis fine feed with 0.001" resolution for milling operations.
*NOTE* We ship machines only to the US and Canada.
Chris' Tips Here's Using the Bluetooth DRO Display.For more information on the Bluetooth DRO, visit the Bluetooth DRO Package page and the Android Tablet page.You can compare the specifications for our mills.Mini-Lathe.com has a review of our solid column mill.The solid column is much more rigid than the tilting column.
Some people may feel that the tilting column is a feature, but I have used a mini mill for 10 years and never tilted the column on purpose. Let's compare the LittleMachineShop.com Solid Column HiTorque Mini Mill to mini mills with a tilting column.
The tilting column on other folk's mini mills tilts 45 degrees from side to side. This has several advantages. First, it is possible to make some angled cuts. It's also easy to tram in the X-axis. One user (and only one) has described to me a cut that was impossible to make any way but using a tilting column.
This mill has a solid column. While it is harder to tram in the X-axis because you must use shims, it is not as easy to knock it out of tram as the tilting column mini mill. The solid column has thicker walls than the tilting column, and a stiffer joint where it joins the base, so the column is significantly more rigid than the tilting column.
LittleMachineShop.com no longer sells mills with a tilting column. That is an indication of how much better the solid column is.Here are data sheets for the machines that we sell.Here are the user's guides for our machines.
500 Watt output spindle motor
3-Axis DRO with 7" Android tablet readout
Electrically interlocked spindle lock
Large X-Y table with attractive anodized handwheels
R8 Spindle for wide tool availability
Solid column that does not tilt
Gas strut provides even support through the Z-axis range
Dovetail column maintains head alignment at any height

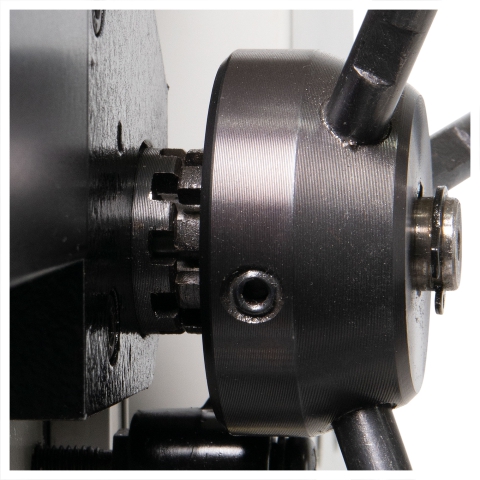

Fine feed on Z-axis for precise control

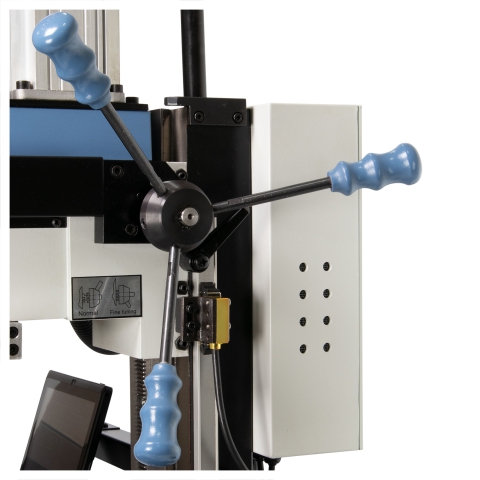

Three radial handles for drilling
E-stop safety power switch
Adjustable Z-axis stop for repetitive drilling
Neoprene bellows protect horizontal ways
Adjustable gibs on all dovetail ways

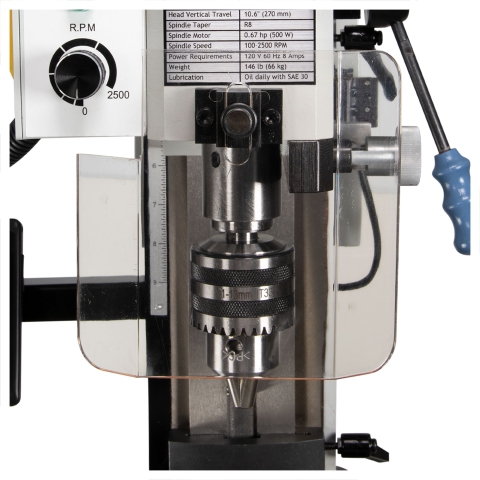

Includes R8 to 33JT drill chuck arbor and 1/2" drill chuck
End Milling Capacity
0.6" (16 mm)
Face Milling Capacity
1.2" (30 mm)
0.5" (13 mm)
18.1" x 4.7" (460 mm x 120 mm)
3 slots 0.47" (12.0 mm) wide
11.8" (300 mm)
5.1" (130 mm)
10.6" (270 mm)
6.5" (165 mm)
X- and Y-Axis Feed Screws
0.062" (1.59 mm) per rotation
Maximum Spindle to Table
11.5" (292 mm)
0.0004" (0.010 mm)
0.67 hp (500 Watts)
100 - 2500 RPM
120 V 60 Hz 8 Amps
124 lbs (56 kg)
Base Dimensions (W x D)
8.5" x 14.2" (216 mm x 362 mm)
Mounting Holes Center to Center (W x D)
7.09" x 11.81" (180.0 mm x 300.0 mm)
Overall Dimensions (W x D x H)
23.2" x 19.7" x 36.3" (590 mm x 500 mm x 922 mm)
161 lbs (73 kg)
Crate Dimensions (W x D x H)
23.6" x 25.0" x 29.9" (600 mm x 635 mm x 760 mm)

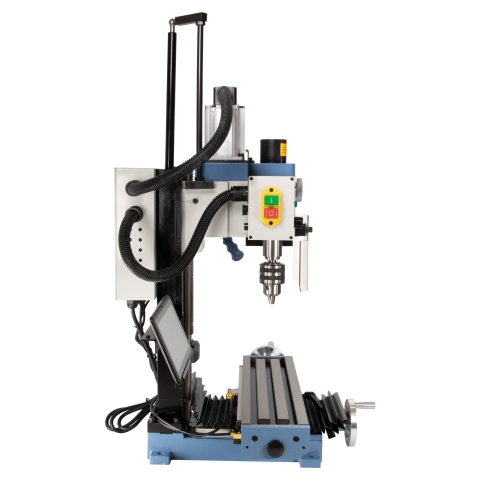

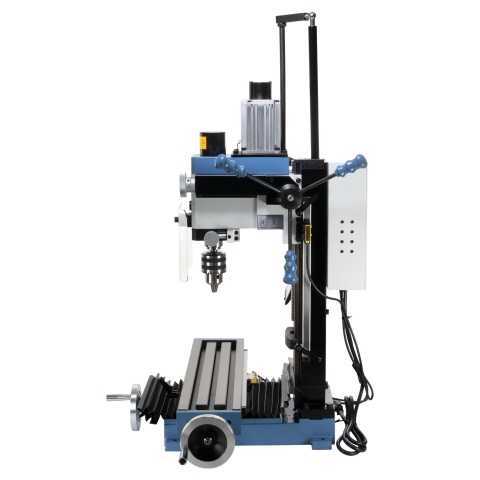

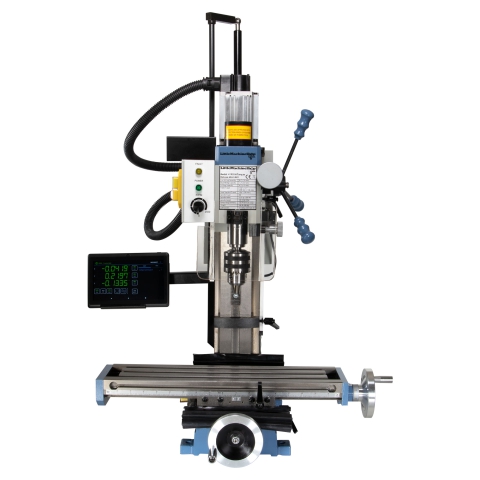

Deluxe HiTorque Solid Column Mini Mill
X-Axis DRO Installed
Y-Axis DRO Installed
Z-Axis DRO Installed
Anodized aluminum hand wheels

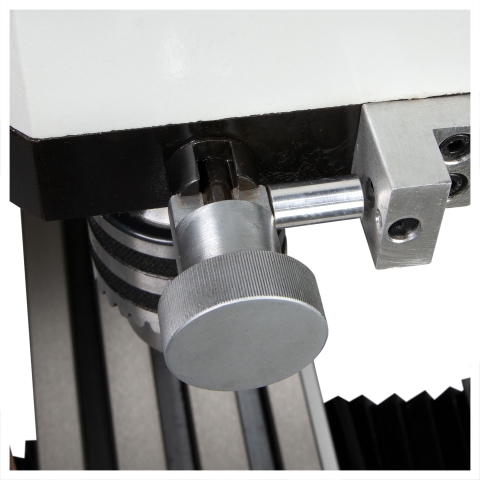

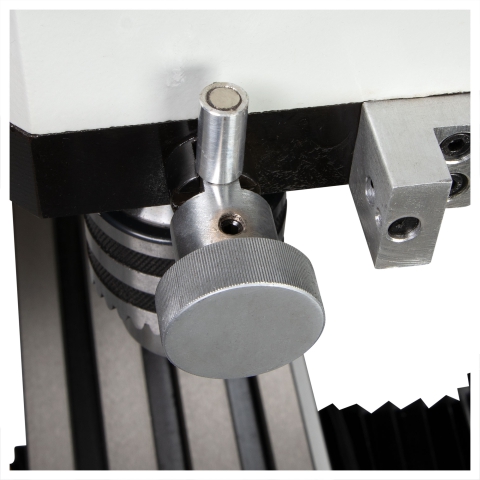

Electronically Interlocked Spindle Lock

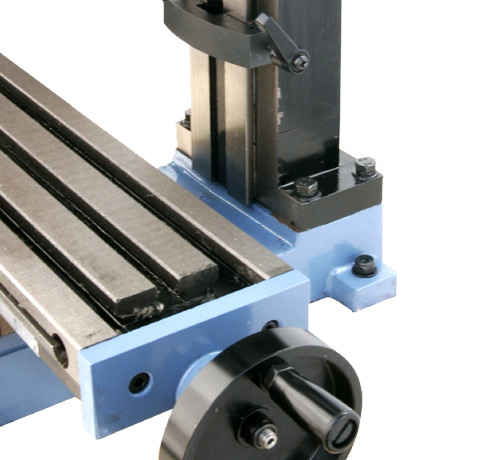

Solid Column Rigid Base

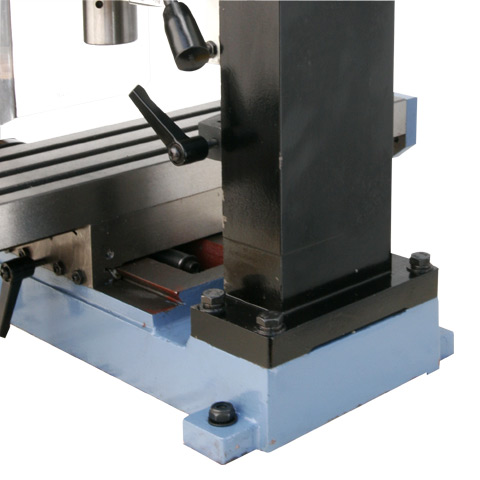

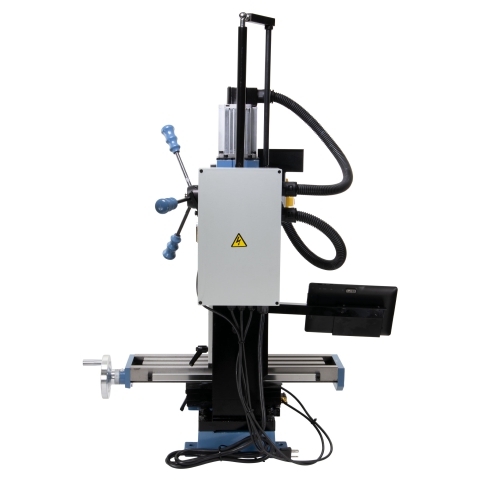

Back View Solid Column Rigid Base

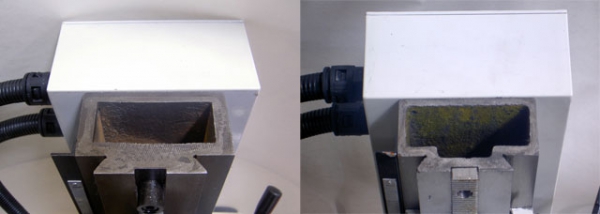

The solid column on the left, tilting column on the right. The solid column has significantly thicker walls
Bluetooth DRO Readout Android Tablet on stand

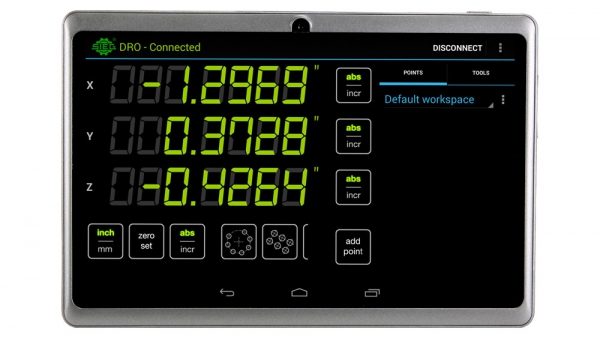

Bluetooth DRO Readout
The HiTorque Mini Mill comes with the following:
Mini Mill Users Guide written by Chris Wood
7" Android tablet for DRO display
Two T-slot nuts
Two end wrenches
Four hex (Allen) wrenches
One spanner wrench
Oil can (plastic)
One 1/2" drill chuck and R8 arbor
This product works with these LittleMachineShop.com products:
These machines ship by truck because they are simply too heavy and bulky for UPS Parcel Service. We normally ship truck orders a day or two after we receive the order. We add the following shipping cost to your order total:
Other Continental US
Delivery to commercial address
Delivery to school or secured location
Delivery to freight terminal
Delivery to residential address (includes liftgate)
"Far West" refers to ten western states: CA, OR, WA, AZ, NV, ID, UT, NM, CO, WY.
For delivery to Alaska, Hawaii, or Puerto Rico, we will check with several trucking companies to get the best price and then call for your approval before we ship.
For Canadian shipments we will provide an all-inclusive quotation for shipping, brokerage, and taxes. The brokerage fees are $108. The taxes vary by province. If you have a customs broker or want to self-clear customs please let us know.
We ship machines only to the US and Canada.
The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second (and third) machine, up to 700 pounds total.
A "commercial address" has a company name, a public entrance and posted hours of operation. If you do not have a forklift or loading dock at your place of business, you must add the liftgate fee. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.
Schools, colleges, universities, university hospitals, military bases, government facilities and other secured locations are charged a limited access fee that is included in the amounts in the chart above.
If you choose Terminal Pickup, and there is not a terminal within 30 miles, we will confirm with you that you still want Terminal Pickup.
Liftgate service is included in the residential delivery fee. The trucking company will call you to schedule the delivery.
We offer inside delivery which gets the machine inside one doorway or into your garage:
Other Continental US
Gets the machine inside 1 threshold Includes liftgate service
