Products > Mill > Mini Mill (X2) Accessories     All Priest Tools products

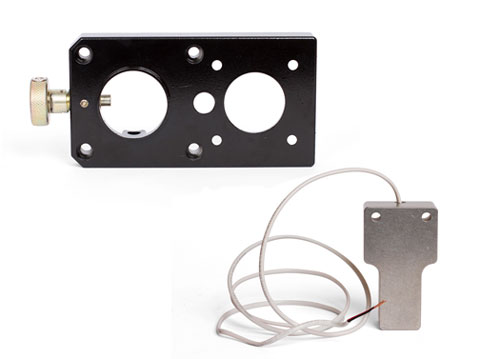

Spindle Lock, X2 Mini Mill

         Made in United States
Spindle Lock, X2 Mini Mill
Part Number: 4785
Weight: 2.43 lb

Price: $119.00

In stock
Quantity:

Share This Page
http://lmscnc.com/4785


  • Makes tool changes easier, faster, and more convenient
  • When engaged, the plunger automatically drops into the locking hole as the spindle is rotated
  • An electro-magnetic interlock disables power to the motor when the spring plunger is engaged
  • Frees both hands for changing tools
  • Loosen and tighten keyless chucks with one hand

Description

The spindle brake provides a fixed position for inserting the locking pin and frees both hands for changing tools.

Fits SIEG X2 mills

Does not work with the Mini Mill Belt Drive Kit.

Features

  • Integral Safety Switch and hand-retractable Spring Plunger
  • The Spindle Brake Plate is made of 6061-T6511 Aluminum
  • Made to exacting specifications in precision machining center
  • Made in the USA

Photos

Spindle Brake installed on mini mill spindle box

Spindle Brake installed on mini mill spindle box



Compatibility

Compatibility

This product works with the following mills:

  •   Bolton XJ9510 Mill/Drill
  •   Cummins (Tools Now) 7877 Mini Mill
  •   Grizzly G8689 Mini Milling Machine
  •   Harbor Freight 44991 Central Machinery Mini Mill/Drill
  •   Hare & Forbes HM-10 Mini Mill Drill
  •   Homier 03947 Speedway Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
  •   SIEG X2/SX2 Mini Mill
  •   Grizzly G0781 Mini Mill
  •   LittleMachineShop.com X2D SIEG Mini Mill
  •   LittleMachineShop.com 4962 SIEG Mini Mill
  •   Micro-Mark 84630 MicroLux R8 Milling Machine
