HiTorque 7x16 Deluxe Mini Lathe


HiTorque 7x16 Deluxe Mini Lathe
Part Number: 5200
Weight: 131 lb

Price: $1,249.95

In stock
Quantity:

Share This Page
http://lmscnc.com/5200


Related Products

Tooling Packages
Tooling Packages

Accessories & Upgrades
Accessories & Upgrades

  • Features of 5100 (most powerful, most low-speed torque, gearless spindle, cam-lock TS, 4" spindle)
  • Extended bed (16" between centers) for more workspace
  • Includes DRO readouts on compound rest and cross slide
  • Metal hand wheels and chrome levers
  • Includes 0XA wedge-type quick change tool post and five tool holders

Description

The LittleMachineShop.com HiTorque Mini Lathe is the best in its class. It has the most power, most torque, and a longer center distance than other lathes in its class.

This lathe comes equipped with digital readouts on the cross slide and compound rest. The attractive hand wheels are all metal, and the levers are chrome.

The 500 Watt brushless spindle drive motor provides tremendous low-end torque. And you can vary the speed from 50 RPM to 2500 rpm continuously in both directions. There are no gears to shift.

The all steel, wedge-type quick change tool posts accepts turning tools up to 1/2" shank. It comes with five toolholders (for details, see part number 3112).

Real top and bottom half-nuts and a reversible 16 TPI lead screw provide extended threading capability. You can create every American Standard Unified class 2A inch screw thread from 4 to 80 threads per inch, and you can create every American Standard Metric class 6h thread from 0.3 to 8 mm pitch with the extra 21 tooth change gear that is included. Cutting inch threads is made even easier with the factory-installed threading dial.

The lathe includes a chip tray, a backsplash guard, and spreaders to give the feet a broader stance.

The LittleMachineShop.com model 5200 HiTorque Mini Lathe is a version of the SIEG SC2.

*NOTE* We ship machines only to the US and Canada.

Sale!

No tab to display.

Chris' Tips

Chris Chris' Tips
View a comparison of the specifications for our lathes.

With this lathe, you can create every American Standard Unified class 2A inch screw thread from 4 to 100 threads per inch, and you can create every American Standard Metric class 6h thread from 0.25 to 8 mm pitch with the extra 21 tooth change gear that is included.

But you can actually do make more thread pitches than that. And, there are more change gear combinations than those shown in the users guide. To see what you can really do, see the Change Gear Calculator.

Here are data sheets for the machines that we sell.

Here are the user's guides for our machines.

Features

  • Mini Lathe Users Guide written by Chris Wood
  • Digital readouts on the compound rest and cross slide
  • 500 Watt output spindle motor
  • NSK brand Japanese-quality spindle bearings
  • No gears in spindle drive
  • Metal hand wheels
  • Chrome levers
  • E-stop safety power switch
  • Extended threading capability - inch and metric threads
  • Rear apron shield to keep swarf out of the mechanism
  • Cam lock tailstock
  • Quick change tool post set with five tool holders
  • Reversible lead screw for right and left hand threads
  • 4" 3-jaw chuck
  • Threading dial

Specifications

Specifications
Swing Over Bed 7" (180 mm)
Swing Over Saddle 4.3" (110 mm)
Distance Between Centers 16.1" (410 mm)
Spindle Through Hole 0.8" (20 mm)
Spindle Motor Output 0.7 hp (500 Watts)
Range of Threads 4-80 TPI (0.3-8 mm)
Spindle Taper #3 Morse taper
Tailstock Taper #2 Morse taper
Spindle Speed 50 - 2500 RPM
Cross Slide Travel 2.6" (65 mm)
Power Requirements 120 V 60 Hz 8 Amps
Crated Weight 116 lbs (53 kg)
Machine Weight 91 lbs (41 kg)
Overall Dimensions (W x D x H) 31" x 10" x 12" (790 mm x 260 mm x 300 mm)
Crate Dimensions (W x D x H) 35" x 16" x 15" (900 mm x 410 mm x 380 mm)

Photos

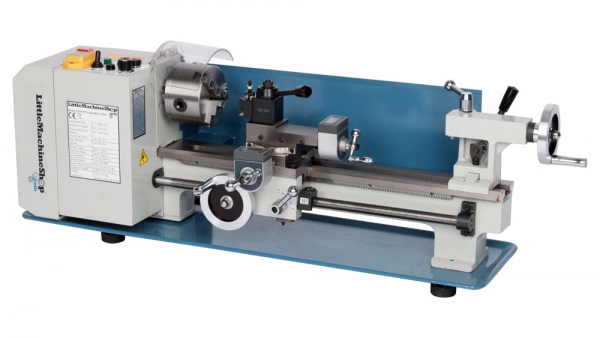

5200 HiTorque 7x16 Deluxe Mini Lathe 5200 HiTorque 7x16 Deluxe Mini Lathe

Contents

The HiTorque Mini Lathe with DRO comes with the following:

  • Mini Lathe Users Guide written by Chris Wood
  • 4" (100 mm) 3-jaw self centering lathe chuck with two sets of jaws and a chuck wrench
  • A Morse taper #2 dead center for the tailstock
  • An 11-gear change gear set that includes a 21 tooth gear for accurate metric threading
  • Two open end wrenches
  • Four hex (Allen) wrenches
  • A plastic oil can

Shipping

These machines ship by truck because they are simply too heavy and bulky for UPS Parcel Service. We normally ship truck orders the day after we receive the order. We add the following shipping cost to your order total:

. Local Far West Other Continental US
Delivery to commercial address $59 $115 $145
Delivery to school or secured location $79 $155 $175
Liftgate, additional Incl. $20 $20
Delivery to freight terminal $115 $115 $145
Delivery to residential address (includes liftgate) $79 $175 $195

"Local" refers to the parts of Southern California served by Hollywood Delivery Service.

"Far West" refers to ten western states: CA, OR, WA, AZ, NV, ID, UT, NM, CO, WY.

For delivery to Alaska, Hawaii, or Puerto Rico, we will check with several trucking companies to get the best price and then call for your approval before we ship.

For Canadian shipments we will provide an all-inclusive quotation for shipping, brokerage, and taxes. The brokerage fees are $108. The taxes vary by province. If you have a customs broker or want to self-clear customs please let us know.

We ship machines only to the US and Canada.

The shipping charges shown above cover the cost of shipping the machine and anything else that you purchase with it, including a second (and third) machine, up to 700 pounds total.

A "commercial address" has a company name, a public entrance and posted hours of operation. If you do not have a forklift or loading dock at your place of business, you must add the liftgate fee. If you are running a business at your residence without a public entrance and posted company name and hours of operation it is considered a residence and a not commercial address.

Schools, colleges, universities, university hospitals, military bases, government facilities and other secured locations are charged a limited access fee that is included in the amounts in the chart above.

If you choose Terminal Pickup, and there is not a terminal within 30 miles, we will confirm with you that you still want Terminal Pickup.

Liftgate service is included in the residential delivery fee. The trucking company will call you to schedule the delivery.

We offer inside delivery, machine placement and stand assembly services at extra cost:

Inside Delivery Gets the machine inside 1 threshold
Includes liftgate service
$20 $75 $75
Machine Placement Includes all Inside Deliver services
Notification of arrival
Move the machine to any room within reason
Uncrate the machine
Place it on a table or bench
Haul away crate and debris
N/A $150 $150
Stand Assembly Includes all Machine Placement services
Unpack the stand.
Assemble the stand
Mount machine on the stand
N/A $250 $250

These services do not include bringing the items up any stairs. An elevator is needed. There is no machine testing included. This is only for unpacking and placing the machine. Any clean-up of grease, and such is your responsibility.
