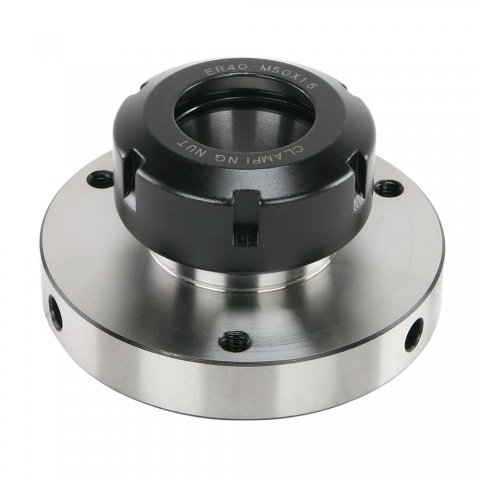

Collet Chuck, ER-40, 4" Diameter


Collet Chuck, ER-40, 4" Diameter
Part Number: 5452
Weight: 2.61 lb

Price: $99.95

In stock
Quantity:


Share this page:
http://lmscnc.com/5452

Related Products

Spanner Wrench
Spanner Wrench

Studs & Nuts
Studs & Nuts
  • Mounts on 4" spindle flange or adapter
  • Shorter than standard 3-jaw chuck
  • Allows 1" stock through the collet chuck
  • Concentricity .0002"

Description

This collet chuck for ER-40 collets mounts on the lathe spindle in place of the lathe chuck or can be used as a fixture on a milling table.

ER-40 collet chucks range in size from 1/8" up to 1" so you can run 1" stock through the headstock of your lathe. (The through hole on the lathe spindle may be smaller.)

The outside diameter of the small collet chuck is 100 mm. It has a 72 mm registration diameter and mounts with three M8 bolts on a 84 mm bolt circle.

Chris' Tips

Chris Chris' Tips
With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.

Photos

"Collet Chuck Reverse View
"Collet Chuck
  Fits ER-40
  Thread M40 X 1.50
  D1 (mm) 100
  D (mm) 72
  L (mm) 42

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

This product works with lathes with a 100 mm flange chuck mount including:

  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   Prazi SD400 7.5x16 Lathe
  •   8x14 Lathe
  •   Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
  •   Emco Compact 8 8x17 Lathe
  •   LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  •   SIEG C4 8.5x16 Bench Lathe
  •   SIEG SC4 8.5x16 Bench Lathe
  •   Travers Tools OT218410 OTMT 8x16 Bench Lathe
  •   LittleMachineShop.com 3540 HiTorque 8x20 Bench Lathe
  •   LittleMachineShop.com 3595 HiTorque 8x20 Deluxe Bench Lathe



Click here to see the tabs view of this page.
