Spindle Conversion Kit, R8
- This kit converts a Grizzly or Micro-Mark mini mill to an R8 spindle
Part Number: 1625
Weight: 2.79 lb
Weight: 2.79 lb
Price: $84.38
This product is currently backordered.
Estimated availability:
29-Nov-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
Share this page:
http://lmscnc.com/1625
http://lmscnc.com/1625

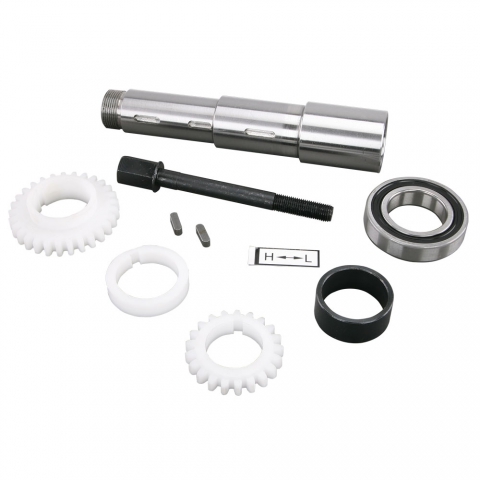

The kit includes:
-R8 spindle
-Two spindle gears
-Two spacing rings
-Two keys
-One bearing
-One drawbar
-Complete instructions
Chris' Tips| Description | Qty | |
|---|---|---|
|
Bearing, 6007-2RS, P/N 1220 | 1 |
|
Drawbar, R8 1-Piece, Mini Mill, P/N 1638 | 1 |
|
Gear, R8 Spindle No. 1, Mini Mill, P/N 1402 | 1 |
|
Gear, R8 Spindle No. 2, Mini Mill, P/N 1400 | 1 |
|
Key, 5x16 mm, P/N 1405 | 2 |
|
Label, High/Low, P/N 1643 | 1 |
|
Spacer, Spindle 17.5 mm, P/N 1401 | 1 |
|
Spacer, Spindle 9.5 mm, P/N 1403 | 1 |
|
Spindle, X2 Mini Mill, R8, P/N 1407 | 1 |
Compatibility
This product works with mills with a 3 Morse taper spindle taper including:
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
