Dasqua
Magnetic Base Indicator Holder, Two Rod Style, Dasqua
Magnetic Base Indicator Holder, Two Rod Style, Dasqua
In stock
SKU:1237Shelf Location: (A08 - 03)
Couldn't load pickup availability
Key Features
Key Features

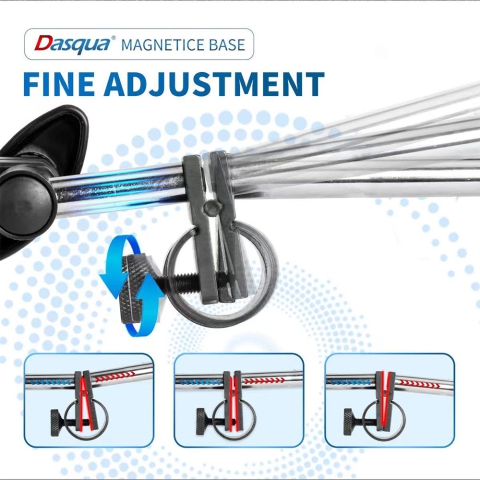

- Magnetic base indicator holder with fine adjustment
- Permanent magnet has an 60 kg (132 lb) holding force
- On/off switch makes it easy to position

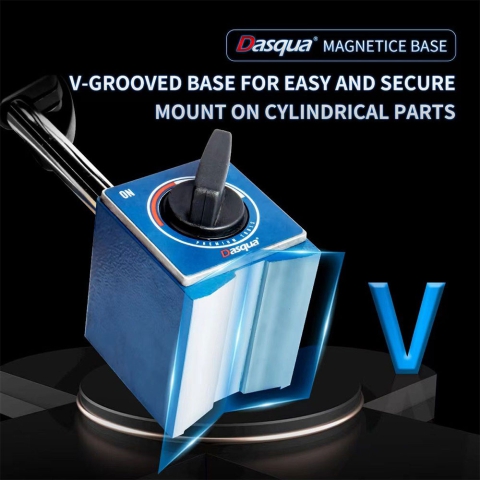

- V-groove base allows you to mount it on cylindrical surfaces
- Works with most AGD dial and test indicators
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

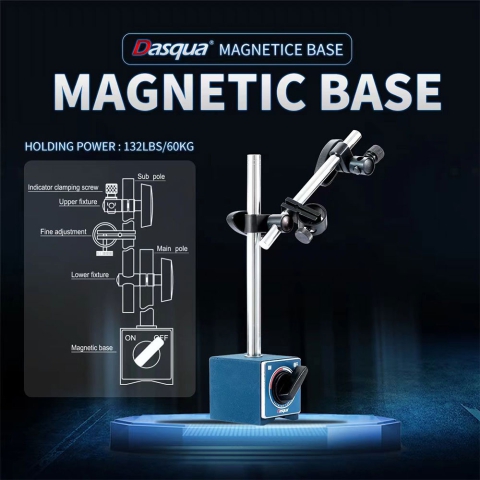

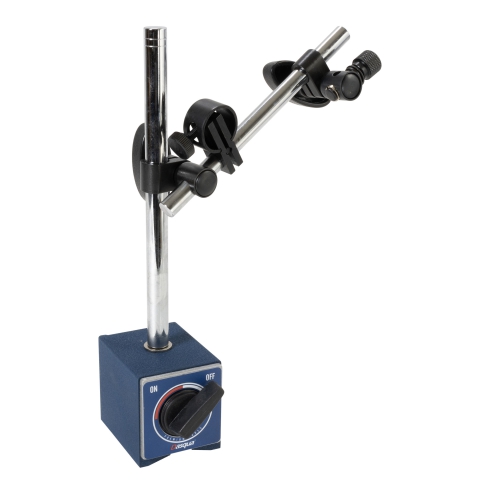

Dasqua 132 Lbs. Magnetic Force Magnetic Base with Fine Adjustment. It is a v-grooved base for ease of mount on cylindrical parts and has chrome plated rods. The mag base has both horizontal or vertical positioning capabilities. Smooth and easy on/off switch. Works with most AGD dial and test indicators
• Base is 60mm (2.36") x 50mm (1.97") x 55mm (2.17").
• Main rod is 12mm (.47") diameter x 176mm (6.93").
• 2nd rod is 10mm diameter (.39") x 150mm (5.91").
• Clamp hole diameters are 6mm (.24"), 8mm (.31") & 3/8".
