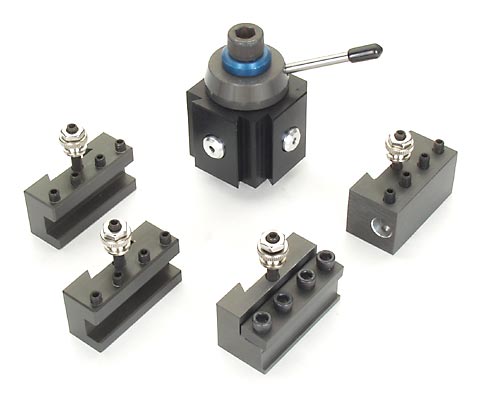

Quick Change Tool Post Set by TS Engineering 1785 (Discontinued)

Quick change tool post (QCTP) set for small lathes
Scaled-down version of the popular "Aloris" style piston tool post
Made from hard-anodized aluminum
Includes two turning holders, a boring bar holder, and a cut-off tool holder
For 7x10, 7x12, and 7x14 mini lathes

Part Number: 1785 (Discontinued)
Weight: 1.19 lb

Price: $99.95

Share this page:
http://lmscnc.com/1785

Description

The tool post set includes 2 turning holders, a boring bar holder, and a cut-off tool holder.

Made by TS Engineering.

The turning tool holders accept tools up to 3/8" square. The boring bar holder takes boring bars with a 3/8" round shank. The cut-off tool holder uses 1/2" tall cut-off blades.

This tool post mounts with an M10 bolt.

Chris' Tips

Chris' Tips
We no longer carry the TS Engineering quick change tool post. The A2Z CNC quick change tool post provides an equivalent QCTP at a better price. See an independent review on Mini-Lathe.com.

Additional turning tool holders, boring tool holders and cut-off tool holders are available for this tool post.

See the comparison chart of the quick change tool post sets we carry.

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

1246 Boring Bar Set, 3/8" Shank, Carbide
1779 Boring Bar, 3/8" Indexable
1720 Boring Bar, 3/8" Indexable, HSS Triangle Inserts, A R Warner Kit #12
1929 Cut-Off Blade, P1
1728 Cut-Off Blade, P1, M2 HSS
1930 Cut-Off Blade, P1N
1729 Cut-Off Blade, P1N, M2 HSS
1552 Cut-Off Blade, P1X

This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)

Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3004 7x12 Mini Lathe (Metric)
Warco 3005 7x12 Mini Lathe (Imperial)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Big Dog BD-0618Ax300 7x14 Mini Lathe
Big Dog BD-0618x300 7x14 Mini Lathe
Warco 4800-350 7x14 Mini Lathe (Imperial)
Warco 4820-350 7x14 Mini Lathe (Metric)
Grizzly G0765 7x14 Mini Lathe
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
