Tooling Package, Atlas/Craftsman 6" Lathe 3514 (Discontinued)
- QCTP Set with Atlas/Craftsman 6" Lathe Mounting Kit
- 3/8" Indexable TCMT Inserts, P1N Cut-Off Blade
- 1/2" Drill Chuck, 1MT Tang to 33JT Drill Chuck Arbor
- 9-piece carbide Boring Bar Set - 3/8" shank
- 4 Center Drills (sizes 1-4)
Weight: 4.82 lb
Purchased individually $193.49
http://lmscnc.com/3514

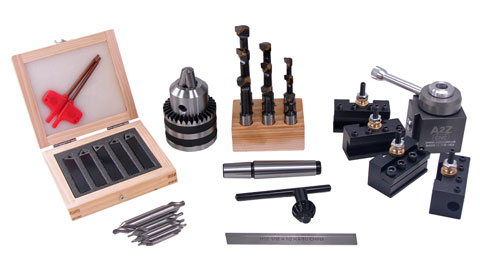

Tooling package with all the essentials for Atlas/Craftsman 6" lathes.
This package contains all the tooling you need to be productive with your Atlas/Craftsman 6" lathe on the first day you own it.
The A2Z CNC quick change tool post set (QCTP) includes the tool post, mounting hardware, two turning tool holders, a boring tool holder and a cut-off blade holder. The quick change tool post is made from 6061 T6 aluminum which is hard anodized for durability and appearance. No tools are required to change tools. Additional tool holders are available.
The turning tool holders accept tools with 1/4" to 1/2" shank. The boring tool holder accepts boring bars with up to 3/8" round shanks. The cut-off tool holder holds 1/2" tall parting blades.
The 1/2" capacity drill chuck is mounted on a1 Morse taper shank for the Atlas/Craftsman 6" lathe. The rated capacity of the drill chuck is 1 mm (0.039") to 13 mm (0.512"). You will have to cut the tank off the drill chuck arbor to suit your tailstock. A Dremel with a cut-off wheel works well to do this.
The set of indexable turning tools includes 5 tools (TAR, TAL, TBR, TBL, TE), inserts, a wrench, and extra screws. It comes in a wooden case. The carbide inserts are TCMT21.51.
The carbide tipped 9-piece boring bar set includes three different length boring bars each for minimum bores of 5/16", 3/8", and 7/16". The bore depth ranges from 3/4" to 2-1/4". The heat treated, alloy steel shanks are held to 0.000 to -0.0005" from the nominal diameter.
The P1 parting blade is 1/16" x 1/2" x 4-1/2" and made from M2 HSS. These T-shape parting blades provide great side clearance.
This package includes 4 different sizes of combined drills and countersinks, commonly called center drills. The center drill set is high speed steel and includes sizes 1, 2, 3, and 4. These are 60 degree center drills. These are the sizes that are most used by bench top machinists.
Chris' TipsOur chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
Size P1 blades are 1/16" wide and are the most commonly-used size. P1N blades are 0.040" wide. These thinner blades are good for small work. P1X blades are 5/64" wide. Use these thicker blades for parting off larger diameters where you need additional stiffness.
It is easier to part off large diameters if you cut a groove that is wider than the cut-off blade. First, make a cut about 0.100" deep. Now back out and move over at least 0.010". Cut in again, widening the slot. Continue with this cut until you are 0.100" deeper than the first slot. Repeat this process, moving back and forth, until you are through.
Here are the sizes of center drills.
| Number | Body Dia. | Drill Dia. | Length |
| 1 | 1/8" | 3/64" | 1 1/4" |
| 2 | 3/16" | 5/64" | 1 7/8" |
| 3 | 1/4" | 7/64" | 2" |
| 4 | 5/16" | 1/8" | 2 1/8" |
| 5 | 7/16" | 3/16" | 2 3/4" |
| Description | Qty | |
|---|---|---|
|
Arbor, Drill Chuck 1MT Tang to 33JT, P/N 1894 | 1 |
|
Boring Bar Set, 3/8" Shank, Carbide, P/N 1246 | 1 |
|
Center Drills, HSS, Set of 4 (Numbers 1-4), P/N 2990 | 1 |
|
Cut-Off Blade, P1N, P/N 1930 | 1 |
|
Drill Chuck, 1/2", P/N 1212 | 1 |
|
Turning Tools, 3/8" Indexable, Triangle Inserts, P/N 1669 | 1 |
