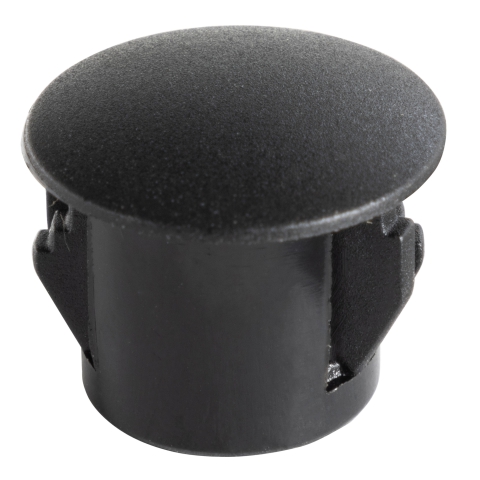

Plug, Wiring, HP Series 10mm

Plastic plugs to fill wiring holes if not used. Found on the HiTorque large bench mill column (SIEG SX3.5), HiTorque large bench lathe control box (SIEG SC4) and HiTorque LED display mini lathes (SIEG SX20).

Typically the plus is used when a machine is upgraded and the old wiring or control is no longer used.

See Used On tab for reference to machines using this part and the corresponding drawing number.

Data from KSS Website

HOLE PLUG

HP-10

Features

●Material: UL94V-2 flame rated, UL approved Nylon 66.

●Color: Black

●KSS HOLE PLUG close your unneeded holes with fingertip pressure at low cost and assure good appearance.

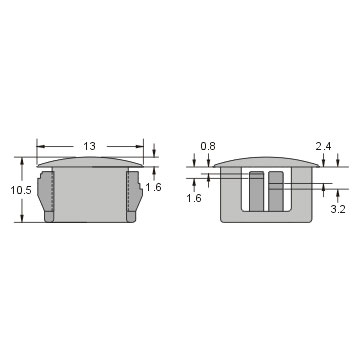

Base Data

Mounting Hole (A x B) 9.5 / 3/8"

Available Thickness 3.2

Material NYLON66

Color Black
