Bracket, Traditional DRO, Rotating for Lathe

Traditional DRO display mounting arm for lathes
Arm L/W/H is 220mm x 20mm x 40mm (8.7" x 0.79" x 1.6")
Vertical post approx. 80mm (3.1")
Baseplate is 74 mm x 50 mm (2.91" x 1.97")
Comes with mounting hardware

Part Number: 6469
Weight: 2.70 lb

Price: $24.95

Share this page:
http://lmscnc.com/6469

Description
Photos

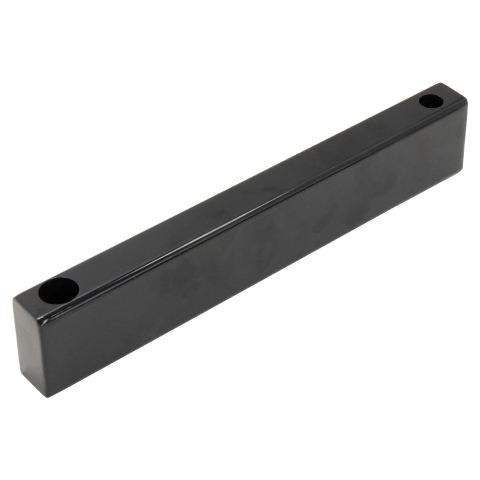

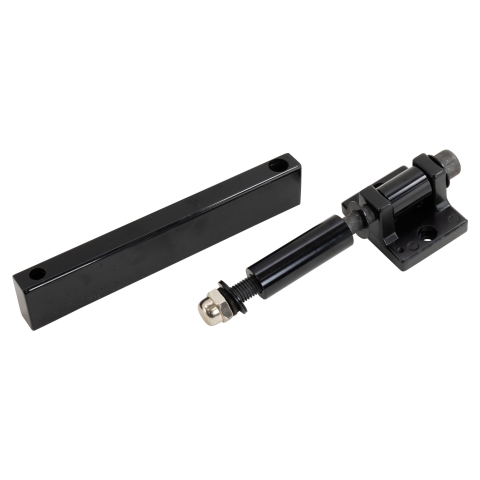

Lathe mounting arm for the hard wired (traditional) DRO display. This mounting arm is designed to be mounted on the backsplash of the lathe, positioned as best meets your needs.

The arm can be rotated to the desired angle and tightened into place. The arm is 220mm (8.7") long x 20mm (0.79") wide, and 40mm (1.6") tall.

The end of the arm has a 10mm hole which is designed to accommodate the mounting pin on the back of the hard-wired DRO display.

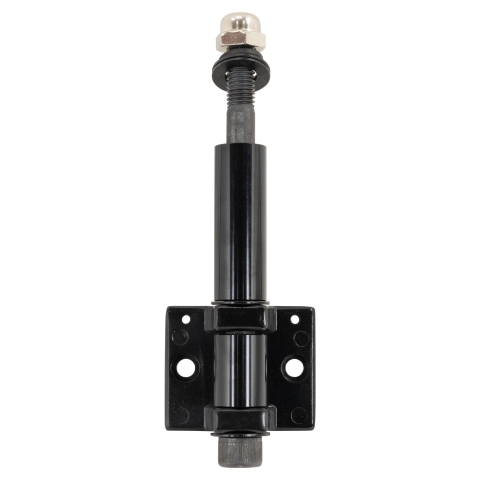

The base bracket has two les for mounting hardware. The baseplate is 74 mm x 50 mm (2.91" x 1.97"). The vertical post is approx. 80mm (3.1") from bracket to horizontal arm.

The bracket is painted with a high-gloss heavy duty black paint.

Bracket comes with mounting hardware.
