HiTorque Mini Mill, Solid Column 3960 (Discontinued)

Most powerful mill in its class
Most low-speed torque in its class
No gears in spindle drive
Largest table and X-Y travel in its class
R8 spindle (Includes R8 to 33JT drill chuck arbor, but no drill chuck)

Part Number: 3960 (Discontinued)
Weight: 176 lb

Price: $879.95

Share this page:
http://lmscnc.com/3960

Chris' Tips
DISCONTINUED - This HiTorque Mini Mill has been replaced by the 3990 HiTorque Mini Mill, Solid Column with Air Spring.

You can compare the specifications for our mills.

Mini-Lathe.com has a review of our solid column mill.

The solid column is much more rigid than the tilting column.

Some people may feel that the tilting column is a feature, but I have used a mini mill for many years and never tilted the column on purpose.

Let's compare the LittleMachineShop.com Solid Column HiTorque Mini Mill to mini mills with a tilting column.

The tilting column on other folk's mini mills tilts 45 degrees from side to side. This has several advantages. First, it is possible to make some angled cuts. It's also easy to tram in the X-axis. One user (and only one) has described to me a cut that was impossible to make any way but using a tilting column.

This mill has a solid column. While it is harder to tram in the X-axis because you must use shims, it is not as easy to knock it out of tram as the tilting column mini mill. The solid column has thicker walls than the tilting column, and a stiffer joint where it joins the base, so the column is significantly more rigid than the tilting column.

LittleMachineShop.com no longer sells mills with a tilting column. That is an indication of how much better the solid column is.

The LittleMachineShop.com HiTorque Mini Mill does not come with a drill chuck as many other mini mills do. That's because the drill chucks provided by the factory do not meet our quality standards (read: they're junk). We had them put the value of the drill chuck into other parts of the mill, like the large X-Y table that is unique to LittleMachineShop.com.

Get one of these drill chucks and you will be in business.

Here are data sheets for the machines that we sell.

Here's what you need to convert the HiTorque Mini Mill to CNC. (But be sure you look at the CNC milling machines that we sell before you start).

Here are the user's guides for our machines.

Features

500 Watt output spindle motor
Large X-Y table
R8 Spindle for wide tool availability
Solid column that does not tilt
Dovetail column maintains head alignment at any height
Fine feed on Z-axis for precise control
Three radial handles for drilling
E-stop safety power switch
Adjustable Z-axis stop for repetitive drilling
Neoprene bellows protect horizontal ways
Adjustable gibs on all dovetail ways
Includes R8 to 33JT drill chuck arbor (no drill chuck)

Specifications

Specifications
End Milling Capacity	0.6" (16 mm)
Face Milling Capacity	1.2" (30 mm)
Drilling Capacity	0.5" (13 mm)
Table Size	18.1" x 4.7" (460 mm x 120 mm)
T-slots	3 slots 0.47" (12.0 mm) wide
X-Axis Travel	11.8" (300 mm)
Y-Axis Travel	5.1" (130 mm)
Z-Axis Travel	9.8" (250 mm)
Throat	6.5" (165 mm)
X- and Y-Axis Feed Screws	0.062" (1.59 mm) per rotation
Head Tilt	None
Positioning Accuracy	0.0004" (0.010 mm)
Spindle Taper	R8
Spindle Motor	0.67 hp (500 Watts)
Spindle Speed	100 - 2500 RPM
Power Requirements	120 V 60 Hz 8 Amps
Machine Weight	124 lbs (56 kg)
Base Dimensions (W x D)	8.5" x 14.2" (216 mm x 362 mm)
Mounting Holes Center to Center (W x D)	7.00" x 11.88" (177.8 mm x 301.6 mm)
Overall Dimensions (W x D x H)	23.2" x 19.7" x 29.1" (590 mm x 500 mm x 740 mm)
Crated Weight	161 lbs (73 kg)
Crate Dimensions (W x D x H)	23.6" x 24.8" x 27.0" (600 mm x 630 mm x 685 mm)

Photos

	3990 HiTorque Mini Mill

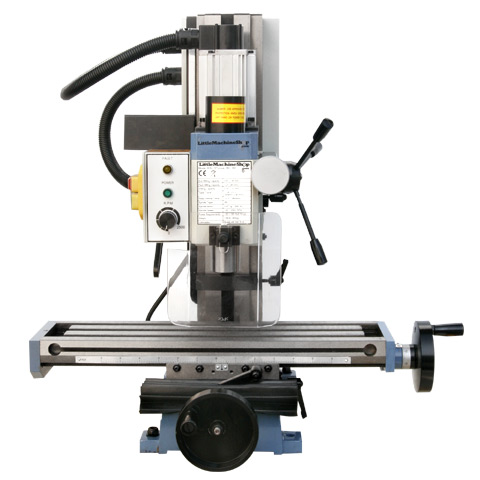

	Front View
	Side View
	Control Box
	Solid Column Rigid Base
	Back View Solid Column Rigid Base
	The solid column on the left, tilting column on the right. The solid column has significantly thicker walls

Contents

The HiTorque Mini Mill comes with the following:

Mini Mill Users Guide written by Chris Wood
2 T-slot nuts with 3/8"-16 thread
Three open end wrenches (8/10 mm, 14/17 mm, 17/19 mm)
Four hex (Allen) wrenches (3, 4, 5, and 6 mm)
One 45-52 mm spanner wrench
Spindle lock pin
Oil can (plastic)
One 1/2" drill chuck and R8/JT33 arbor

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

1676 Arbor, Drill Chuck R8 to 33JT
1212 Drill Chuck, 1/2"
1660 Drill Chuck, 1/2" Keyless
3153 Drill Chuck, 1/2" Professional Grade
3818 Tachometer, Spindle, HiTorque Mills & Lathes
3489 Tooling Package, R8 Mini Mill
