- Metalworking - Doing It Better: Machining, Welding, Fabricating
- By Tom Lipton
- 344 pages, paperback, 8½" x 11"
- ISBN 978-0-8311-3476-1
- Copyright 2014
- Inch dials, inch and metric threading
- 120VAC 60 Hz
- 1000 Watt (1.34 HP) brushless DC drive
- Power longitudinal feed and power cross feed
- 4" (100 mm) 3-jaw self centering lathe chuck
- For saw blades up to 3/16" thick
- Fits 1/2", 5/8", 3/4", 7/8", and 1" holed slitting saw blades
- R8 Shank
LittleMachineShop.com focuses on replacement parts and accessories
for 7x10, 7x12, 7x14, and
7x16 Lathes; Mini
Mills; and Micro
We stock every
part for the mini lathes, mini mills, and micro mills from LittleMachineShop.com, ToolsNow (Cummins),
Grizzly, Harbor Freight, Homier, and Micro-Mark. Go ahead: break any
part on your machine. We have a replacement. Our
Parts page makes it easy to find the part you need. We even
have the parts diagram if you don't know the name of the part.
Join Our E-Mail List
We'll let you know about new products and
special offers for preferred customers. Like you, we hate spam. Here's
our pledge to you:
We won't overload your inbox. Don't expect
to see more than about two messages per month.
We won't use your address for any other
purpose or release it to anyone else for any reason.
We'll promptly honor all "unsubscribe"
Sound okay? Then
click here to join.
Experience has taught me a lot of tips, tricks, and workarounds for using mini lathes and mini mills. Throughout the product pages on this site, look for "Chris' Tips," where I share these little pearls of wisdom.
--Chris Wood, Founder
||We accept credit and debit card payments through a secure server.
||We accept payments via PayPal.
||We accept personal checks, company checks and money orders.
Read more about our payment options.
What our customers say:
I just wanted to thank you for your excellent service, I always receive my orders fast with no issues. Keep the hard work."
Eric M, 22-Jan-2018
HiTorque Machines In Stock
We have these HiTorque machines in stock and ready for shipment.

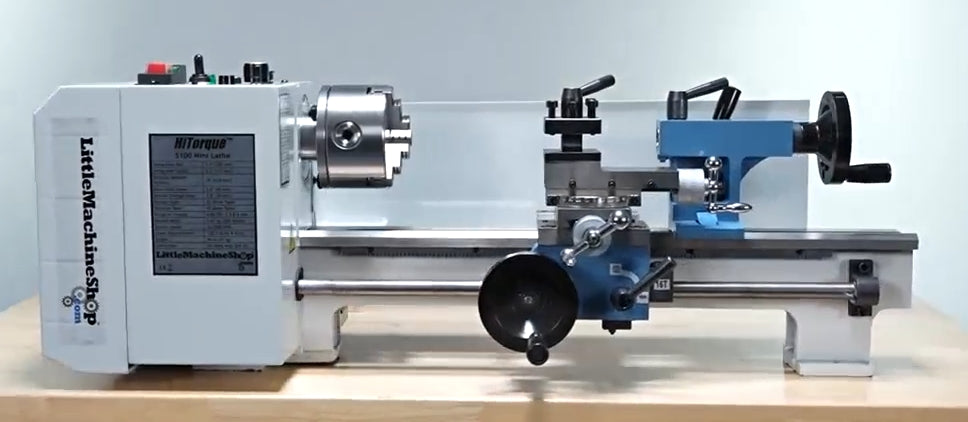

With its 500W brushless DC drive system, the 5100 HiTorque 7x16 Mini Lathe has the most low speed torque of any mini lathe. And features like the 4" 3-jaw chuck, cam-lock tailstock, full half-nuts, and apron gear shield make this lathe unique.
The 5200 HiTorque 7x16 Deluxe Mini Lathe incorporates all the goodness of our 5100 mini lathe, plus it includes an all-steel wedge-style quick change tool post set with five tool holders. In addition, the 5200 features digital readouts on the cross slide and compound rest, and it has metal handwheels instead of plastic.

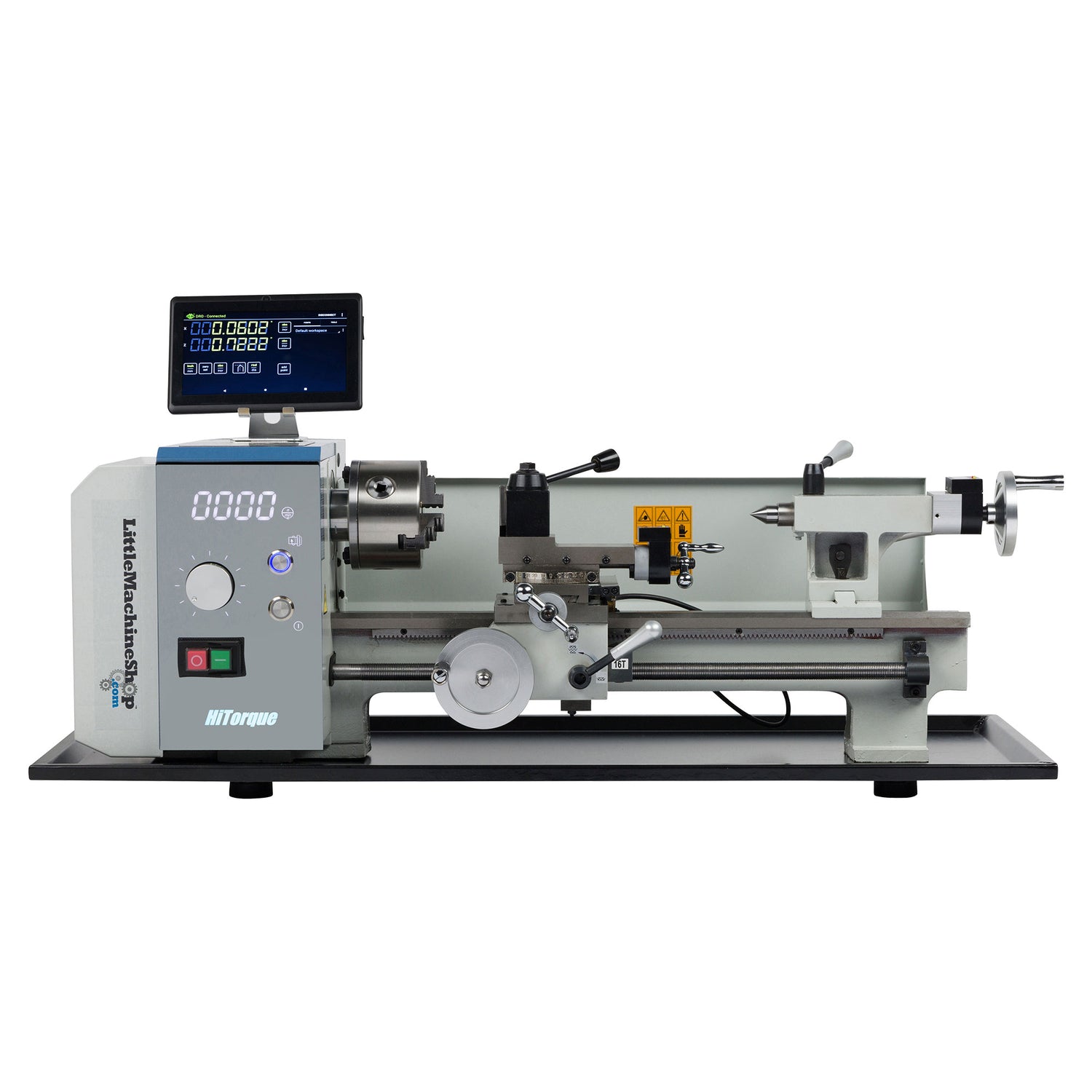

The 3540 HiTorque 8.5x20 Bench Lathe features a power cross feed--a unique feature in lathes of this size. The 1000W brushless spindle drive motor provides tremendous low-end torque and continuously variable speed from 100-2000 RPM in both directions.

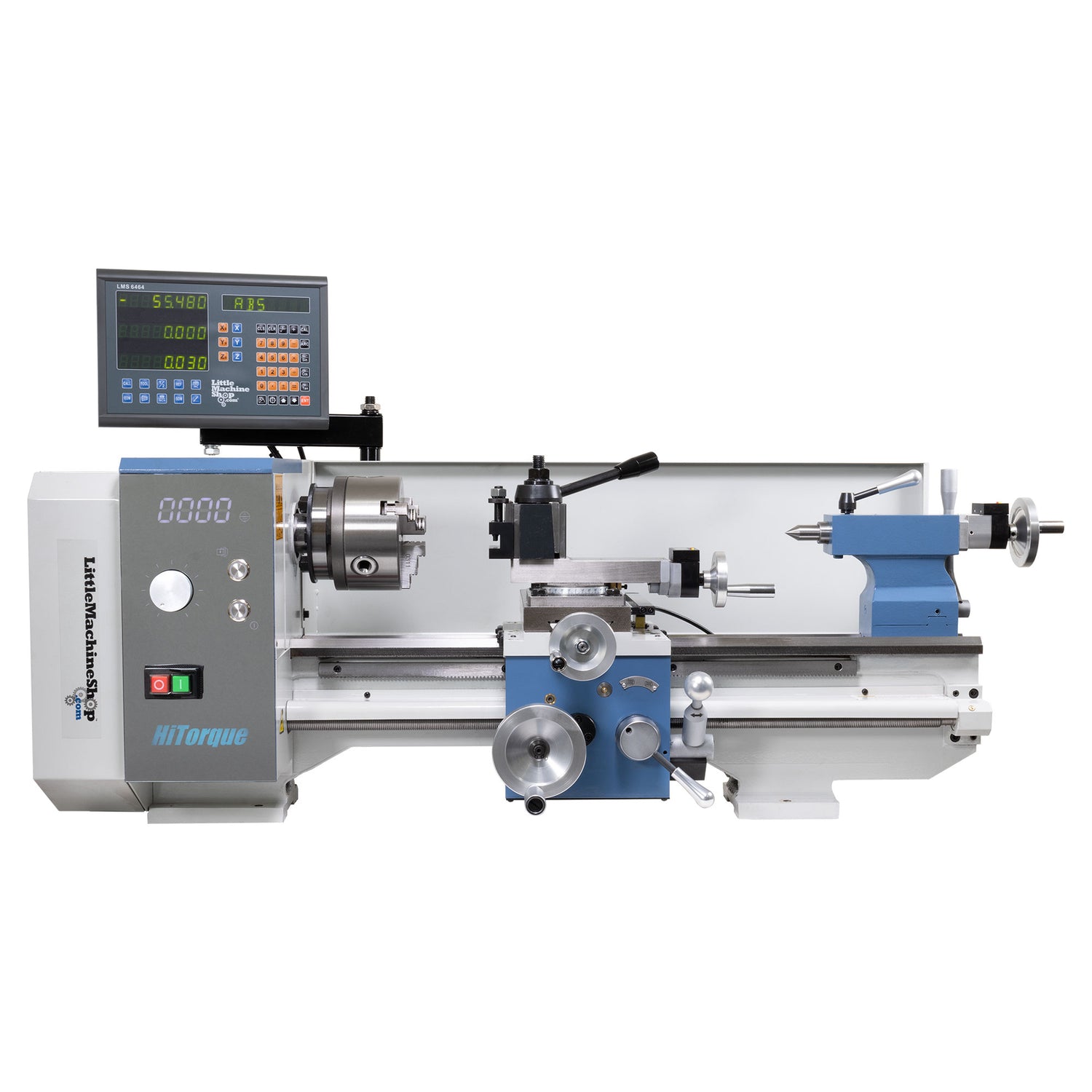

The 3595 HiTorque 8.5x20 Deluxe Bench Lathe has all the features of the 3540 bench lathe, plus it includes digital readouts on the cross slide and compound rest; an AXA quick change tool post set with five tool holders; anodized aluminum hand wheels, knobs, and levers with black anodizing in the hand wheels; and a heavy duty splash guard. In addition, the compound rest is modified to better accommodate a quick change tool post.

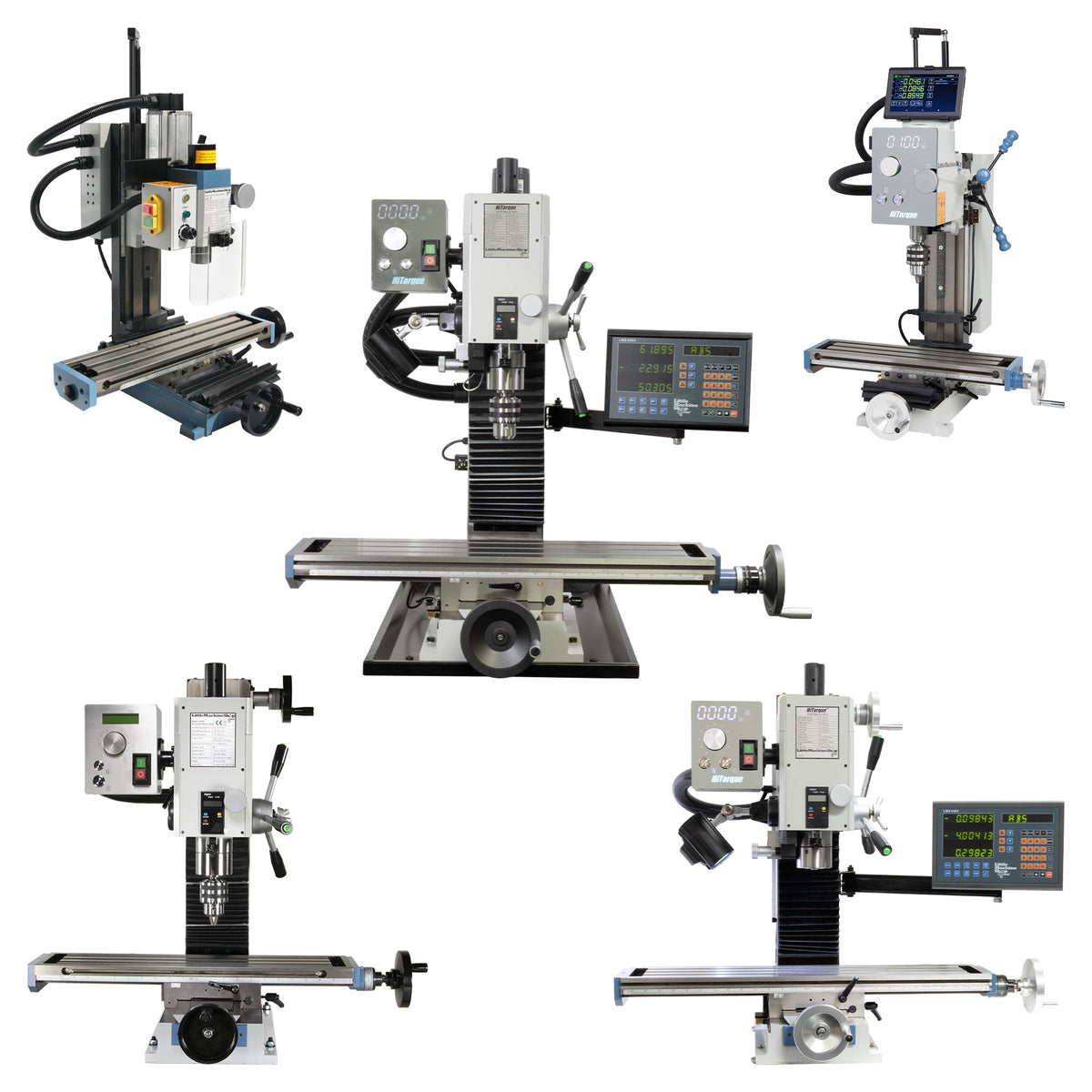

The HiTorque Micro Mill features a powerful 250W brushless spindle drive motor, which offers tremendous low-end torque, speeds from 100-5000 RPM, and no gears or belts to shift. (No gears also makes it the quietest in its class.) And at 15.7"x5.7", the mill table is huge! It's available with a 2 Morse Taper spindle (model 4700) or an ER-16 spindle (model 4660).
The Model 3990 HiTorque Mini Mill features an R8 spindle for wide tooling compatibility and a solid column for increased rigidity and reduced chatter. This mini mill has a larger X-Y table and more power (500W brushless DC drive) than its competitors.
The 4190 HiTorque Deluxe Mini Mill expands on the 3990 with a 3-axis digital readout (DRO) with Bluetooth and 7" tablet display, an electrically interlocked spindle lock for easy and safe tool changes, and machined aluminum handwheels and painted drill handles.
The 5500 HiTorque Bench Mill is a step up in size, rigidity, and power compared to a mini mill. It provides a larger table (23.4" x 5.5"), more travel, and more horsepower (750W). The HiTorque Bench Mill incorporates a true quill and drill press-style handles for easy drilling. A button on the end of each handle reverses the spindle to make tapping easy. The control panel includes a digital spindle speed display.
Each of these machines is the best in its class, with unique features not available elsewhere. There is finally a Mini Lathe and Mini Mill worthy of the LittleMachineShop.com brand.
Tormach Personal CNC Milling Machines
Tormach’s PCNC mills represent a new approach to small and bench top CNC milling machines. Designed for real work, the machines have the strength, power, and accuracy needed to cut serious materials. We carry a full line of Tormach products, including the latest milling machine, the PCNC 440, as well as the larger PCNC 770 and PCNC 1100 Series 3 milling machines. We have a PCNC 440 and a PCNC 1100 in our showroom for demonstrations. Give us a call and make an appointment to see them in action.
