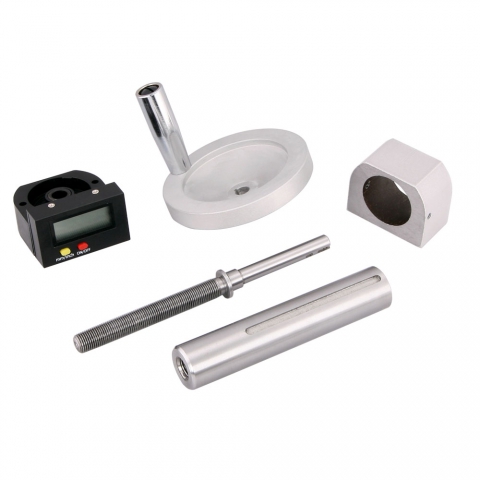

Digital Position Readout, Mini Lathe Tailstock
- This DRO kit is specifically made for the 7x10, 7x12, 7x14 and 7x16 mini lathe tailstocks
- Mounts right to the back of the tailstock to give you accurate quill depth readings
- Resolution: 0.0001", accuracy: 0.001"
- Buttons for on/off, zero, and inch/mm
This digital position readout for the tailstock works with almost all 7x10, 7x12, or 7x14 lathes made by SIEG, which includes most of the mini lathes sold in the US and most of the mini lathes sold world-wide.
*NOTE* We've found that the bore in the gray DRO retainer from these kits generally fits most tailstock retainers, but there is some variance in tailstock retainer size. The gray DRO retainer in this kit may require some additional boring (typically less than 1/8") in order to mount it on to your existing tailstock retainer.
Repeatability | 0.00050" (0.0127 mm) |
Resolution | 0.00010" (0.0025 mm) |
Accuracy | 0.00100" (0.0254 mm) |
Technology | Rotary encoder |
Clear to Zero | Yes |
Inch/mm Display | Yes |
Made In | China |
Compatibility
This product works with these LittleMachineShop.com products:
- 4292 Battery, CR2032 Lithium
- 5673 Readout, DRO
- 1884 Tailstock Assembly, Mini Lathe
- 2502 Tailstock Assembly, Mini Lathe, Cam Lock
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3005 7x12 Mini Lathe (Imperial)
- Warco 3004 7x12 Mini Lathe (Metric)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
