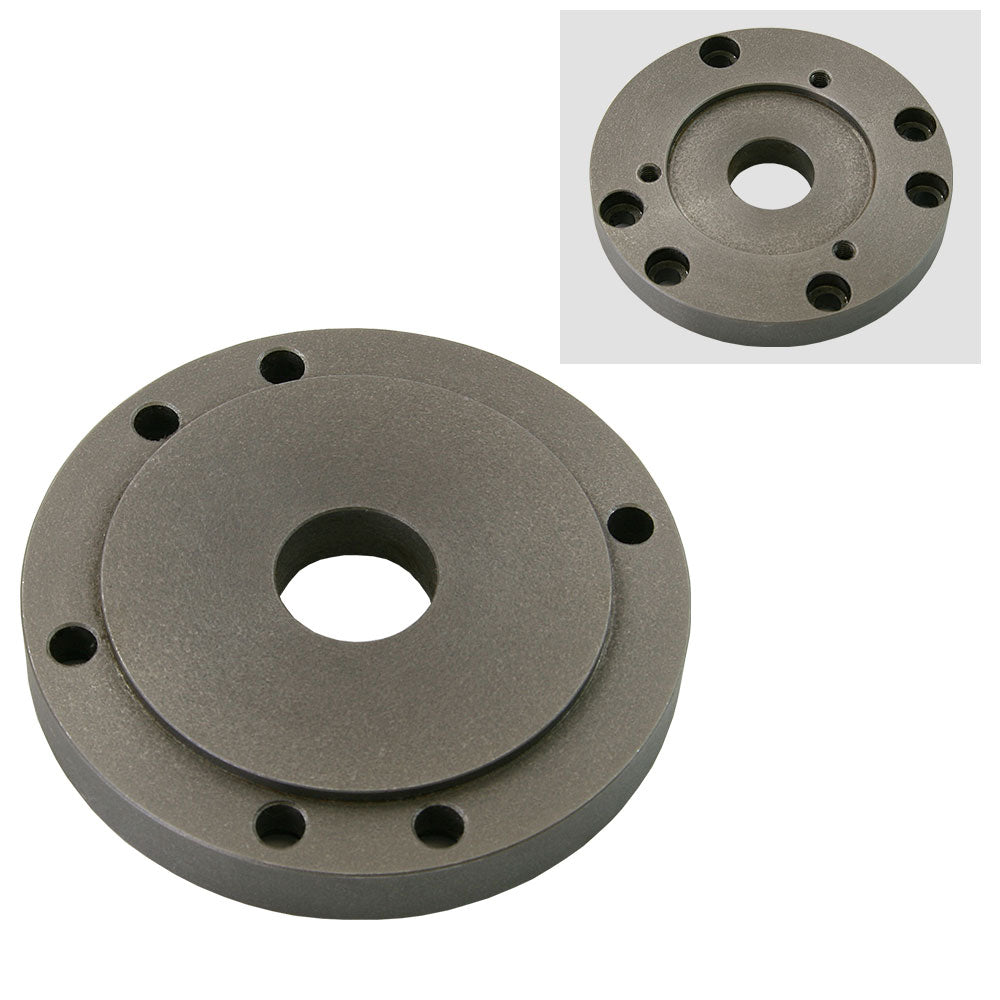

Adapter, 4" Spindle to 5" Lathe Chuck
Adapter, 4" Spindle to 5" Lathe Chuck
SKU:2961
In stock
Couldn't load pickup availability
Key Features
Key Features
- Compatible with 5" 3- or 4-Jaw Lathe Chuck with 95 mm Registration Recess
- Can Use on a Flange for 4" Chuck with 72 mm Registration Boss
- Works on 8x12 and 8x14 Lathes
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This adapter mounts a 5" 3- or 4-jaw lathe chuck with a 95 mm registration recess on a flange for a 4" chuck with a 72 mm registration boss. It works on 8x12 and 8x14 lathes as well as the Harbor Freight 5980 multipurpose machine. It also fits the SIEG C4 lathe.
Specifications
Outside Diameter: Ø 4.921",125 mm
Center Hole: Ø 1.181", 30 mm
Spindle Side Registration Recess: Ø 2.835",72 mm
Spindle Side Bold Circle: Ø 3.307",84 mm
Chuck Side Registration Boss: Ø 3.740",95 mm
Chuck Side Bolt Circle: Ø 4.252",108 mm
Thickness: Ø 0.630",16 mm
Chuck Mounting Holes: 6
