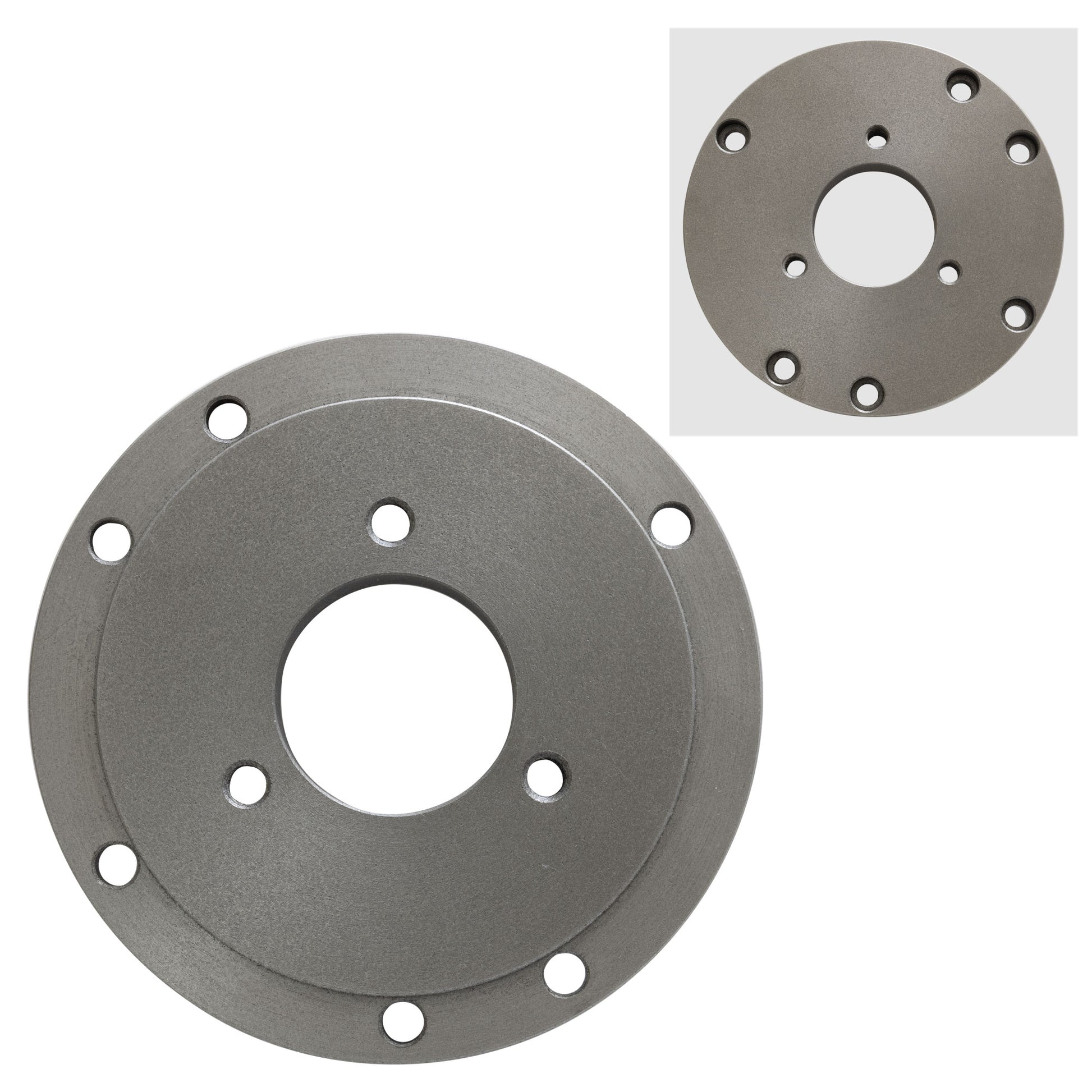

Adapter, 6" Lathe Chuck, 9x20 HiTorque Bench Lathe
Adapter, 6" Lathe Chuck, 9x20 HiTorque Bench Lathe
SKU:6727
In stock
Couldn't load pickup availability
Key Features
Key Features
- Fits 6" 3-Jaw and 4-Jaw Lathe Chucks
- Designed specifically for the HiTorque 9x20 bench lathe.
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This adapter mounts to a 6" 3-jaw or 4-jaw lathe chucks with a 3-bolt pattern or 4-bolt pattern and 142mm bolt circle. The adapter has no spindle side registration recess and is designed specifically for the HiTorque 9x20 lathe spindle. It has a 52mm center hole.
Specifications
Outside Diameter: Ø 6.299",160 mm
Center Hole: Ø 2.047", 52 mm
Spindle Side Registration Recess: None
Spindle Side Bolt Circle: Ø 2.953",75 mm
Chuck Side Registration Boss: Ø 5.118",130 mm
Chuck Side Bolt Circle: Ø 5.591",142 mm
Chuck Mounting Holes: 6
