Precision X-Y Tables

Precision X-Y table assemblies for mini mills and micro mills. Extend X-axis travel and increase table area. These X-Y tables are great additions to mills made by brands such as Grizzly, Cummins, Harbor Freight, Micro-Mark, and others. See our compatibility information for details.
|
- Complete X-Y table assembly for a micro mill
- Includes long table and extended X-axis travel
|
|
- 30% more travel in both directions
- 50% more table area
- Unbolt the column from your existing X-Y table and bolt it to this one.
- Great for the Grizzly G0516
|
|
- 30% more travel in both directions
- 50% more table area
- Bolt pattern for solid column attachment (P/N 4307)
|
|
This is the complete XY milling table assembly for a mini mill.
The table is 90 mm (3.54") by 335 mm (13.19"). It has three 12 mm T-slots.
The X-axis travel is approximately 8" and the Y-axis travel is approximately 4". The table is 136 mm (5.31") tall (the hand wheel and rear mount are higher). The table is 390 mm (15.4") deep and 460 mm (18.1") wide.
The dials are graduated in 0.001" and one turn of the hand wheels moves the table 0.0625".
The XY table assembly is made of cast iron and steel. There are adjustable gibs on both axes.
This is all you need to make a mini mill using the milling column from a Grizzly G0516 Combo Lathe with Milling Attachment.
|
|
This small precision X-Y table can be used on a drill press or other machine to precisely locate your workpiece.

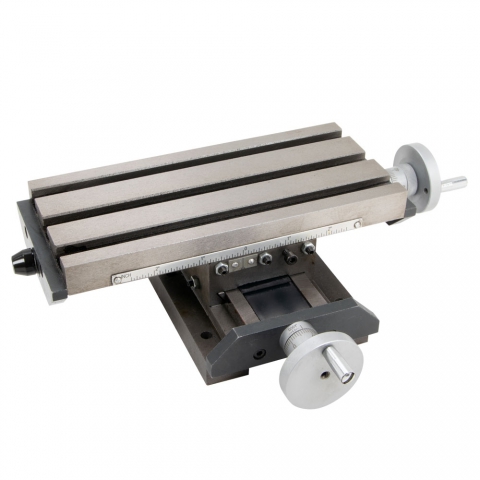

The table is 90 mm (3.54") by 200 mm (7.87"). It has three 8 mm T-slots.
The complete X-Y Table assembly is 10.15" wide, 8.5" deep and 2.5" high.
The X-axis travel is 135 mm (5.31") and the Y-axis travel is 70 mm (2.76").
The height of the table is 60 mm (2.36").
The base is 100 mm (3.94") by 175 mm (6.89").
The dials are graduated in 0.001" and one turn of the hand wheels moves the table 0.050".
The X-Y table is made of cast iron and steel. There are adjustable gibs on both axes.
|
|
