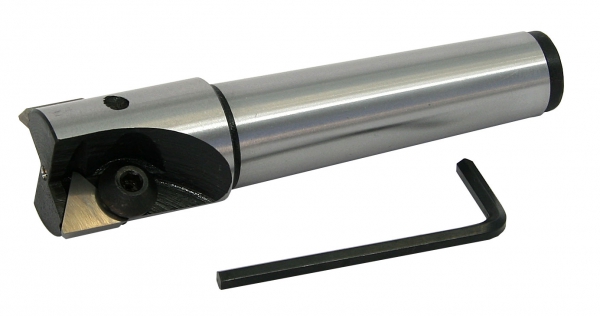

Indexable End Mill, 3MT, 30 mm Cut Diameter

30 mm (1.18") cutting diameter
3 Morse taper shank
3/8"-16 thread for the drawbar
Comes with one set of inserts

Part Number: 1146
Weight: 0.88 lb

Price: $89.95

Share this page:
http://lmscnc.com/1146

Description

The indexable end mill uses TPC322 (ANSI) TPCN160308 (ISO) inserts.

Chris' Tips

Chris' Tips
Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

1216 Insert, TPC-322 Carbide
1798 Screws, Insert Retaining

This product works with mills with a 3 Morse taper spindle taper including:

Bolton XJ-9510 Mill/Drill
Clarke CMD300 Milling Drilling Machine
Grizzly G8689 Mini Milling Machine
Hare & Forbes HM-10 Mill/Drill
Princess Auto 8507667 Powerfist Mini Mill
SIEG X2-MT3 Mini Mill
Micro-Mark 82573 MicroLux Milling Machine
Grizzly G0516 Lathe Mill Combo
SIEG M6 Multi-purpose Machine
