Handwheel, Mini Mill
- X and Y-axes handwheel, mini mill
- Fits HiTorque mini mills and SIEG X2 & SX2 mini mills
- 100 mm outside diameter
- Mounts on 10 mm shaft with 4 mm key
- Bore depth is 24 mm, handle threading is M6
Part Number: 1488
Weight: 0.36 lb
Weight: 0.36 lb
Price: $24.95
This product is currently backordered.
Estimated availability:
29-Nov-2024
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
Share this page:
http://lmscnc.com/1488
http://lmscnc.com/1488

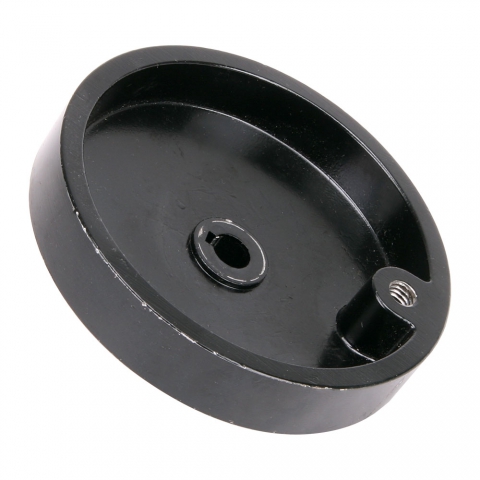

This handwheel is used on both the X- and Y-axes of the mini mill. Fits HiTorque mini mills and SIEG X2 & SX2 model mini mills.
The handwheel is 100 mm outside diameter. It mounts on a 10 mm shaft, with a 4 mm key. The length through the bore is 22 mm. There is an M8 threaded hole for a handle.
See Used On tab for reference to machines using this part and the corresponding drawing number.
 |
Back View |
In your instruction manual, this part appears on the parts list as:
