Collet, 3MT, 1/8"

Collet, 3MT, 1/8"

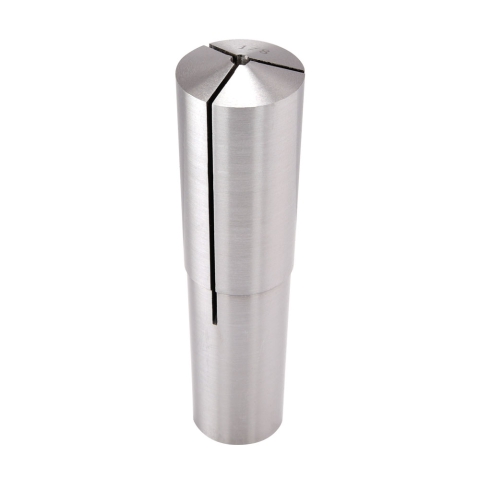

  • 1/8" #3 Morse taper collet
  • 3/8"-16 internal drawbar thread
  • Made of high grade tool steel
  • Hardened and ground to close tolerance
  • Overall length is 3.39" (86 mm)
Part Number: 1605
Weight: 0.48 lb

Price: $13.95

In stock
Quantity:
1/8" 3 Morse taper collet to fit spindles with a Morse taper. This collet is made from high-grade tool steel and is precision ground and hardened.

The drawbar thread is 3/8"-16 and the overall length is 3.39" (86 mm).

Chris Chris' Tips
Most Chinese mills come with metric threads on the drawbar. However, the Morse taper tools we sell have "inch" drawbar threads. This is because we could not find a reliable supplier of tools with metric drawbar threads.

You might need to a make or purchase a drawbar to work with these tools.

Specifications
Hole Diameter 0.125" (3.17 mm)
Drawbar End 3/8"~16

Compatibility

This product works with lathes with a 3 Morse taper spindle taper including:

  •   Enco 110-0803 Enco 7x10 Mini Lathe
  •   Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
  •   Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
  •   MSC 0192857 Enco 7x10 Mini Lathe
  •   Bolton CQ9318 7x12 Mini Lathe
  •   Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  •   Cummins (Tools Now) 5278 7x12 Mini Lathe
  •   Eastwood 32497 7x12 Mini Lathe
  •   Grizzly G8688 7x12 Mini Metal Lathe
  •   Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  •   Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  •   LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  •   LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  •   SIEG C2 7x12 Mini Lathe
  •   Tormach 30689 7x12 Duality Lathe
  •   Travers Tools OT222300 OTMT 7x12 Mini Lathe
  •   Warco 3004 7x12 Mini Lathe (Metric)
  •   Warco 3005 7x12 Mini Lathe (Imperial)
  •   WEN 3455 WEN 7x12 Mini Lathe
  •   Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  •   LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  •   LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  •   SIEG SC2 7x12 Mini Lathe
  •   Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe
  •   Big Dog BD-0618Ax300 7x14 Mini Lathe
  •   Big Dog BD-0618x300 7x14 Mini Lathe
  •   Warco 4800-350 7x14 Mini Lathe (Imperial)
  •   Warco 4820-350 7x14 Mini Lathe (Metric)
  •   Grizzly G0765 7x14 Mini Lathe
  •   Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  •   LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  •   LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
  •   Prazi SD400 7x16 Lathe
  •   MX-8x14 Preenex (and others) 8x14 Lathe
  •   Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
  •   Grizzly G0768 8x16 Benchtop Lathe
  •   Emco Compact 8 8x17 Lathe
  •   LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
  •   SIEG C4 8.5x16 Bench Lathe
  •   SIEG SC4 8.5x16 Bench Lathe
  •   Travers Tools OT218410 OTMT 8x16 Bench Lathe
  •   LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
  •   LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
  •   LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
  •   BD-920N Jet 9x20 Lathe
  •   Grizzly G4000 9x19 Bench Lathe
  •   Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
  •   SIEG C6 10x21 Lathe
  •   Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
  •   Grizzly G0516 10x21 Lathe Mill Combo
  •   Prazi SD500 10x20 Lathe
  •   SIEG M6 10x21 Lathe Mill Combo

This product works with mills with a 3 Morse taper spindle taper including:

  •   Bolton XJ-9510 Mill/Drill
  •   Clarke CMD300 Milling Drilling Machine
  •   Grizzly G8689 Mini Milling Machine
  •   Hare & Forbes HM-10 Mill/Drill
  •   Princess Auto 8507667 Powerfist Mini Mill
  •   SIEG X2-MT3 Mini Mill
  •   Micro-Mark 82573 MicroLux Milling Machine
  •   Grizzly G0516 Lathe Mill Combo
  •   SIEG M6 Multi-purpose Machine
