Electronic Digital Caliper 6", 4 Buttons

6" (150 mm) range
0.0005" (0.01 mm) resolution
0.001" (0.02 mm) accuracy
Reads inches or mm
Four button model has display lock

Part Number: 1758
Weight: 0.73 lb

$19.95 On Sale

Regularly $24.95

Share this page:
http://lmscnc.com/1758

Description

This 6" electronic digital caliper has manual power on and off. It won't go off and lose your measurement.

There are four buttons (one more than most digital calipers).

OFF/ON: Turns the power on and off.

ZERO: Sets the readout to zero at any position.

MM/INCH: Switches between inch and metric display.

HOLD: Locks the display. Use this button when you take a measurement where you cannot easily see the display. Press HOLD again to unlock the display.

You can make absolute or relative inside, outside, depth, and step measurements.

Furnished with a fitted case.

Chris' Tips

Chris' Tips
Here are some tips on using calipers.

What is the difference between accuracy and resolution?
Accuracy—indicates how close a measured value is to the true quantity of what is being measured.
Resolution—is the smallest increment the system can display or measure. It's one division on a dial, or the smallest increment of the righmost digit on a digital display.

Specifications

Specifications
Range	0" - 6" (0 mm - 152 mm)
Resolution	0.0005" (0.013 mm)
Accuracy	0.001" (0.03 mm)
Clear to Zero	Yes
Inch/mm Display	Yes
Fraction Display	No

Photos

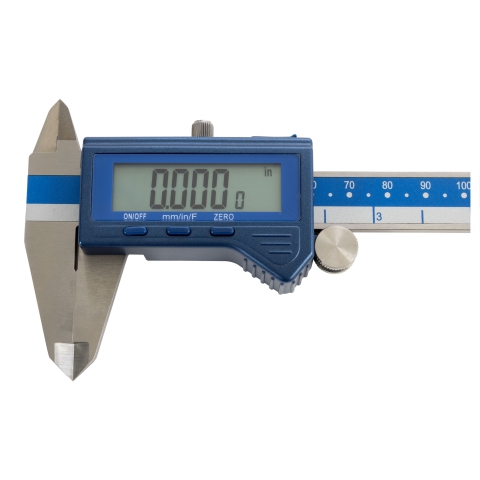

	Decimal Inch Display

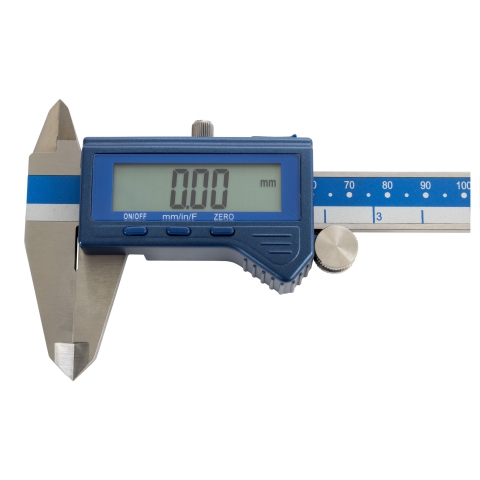

	Metric Display
