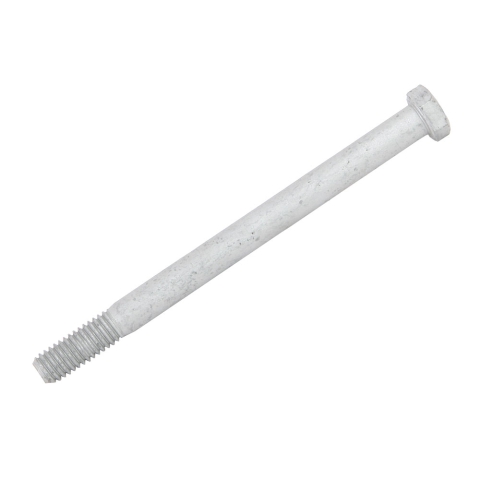

Drawbar, 3MT x 3/8"-16x5" - Mini Lathe

3/8-16x5, Hex Head Cap Screw
Mini lathe drawbar
Hardened grade 8
Fit SIEG C2 and SC2 class of mini lathes

Part Number: 1869
Weight: 0.16 lb

Price: $4.95

Share this page:
http://lmscnc.com/1869

Description

Cap screw drawbar, 3/8-16 x 5 , hex head, hardened grade 8

This is the 3/8"-16 drawbar for the 7x10 and 7x12 mini lathe with the 3 Morse Taper spindle.

Made from Grade 8 steel, these screws can be used in high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws. Grade 8 steel hex head screws are marked with six radial lines. Length is measured from under the head.

Zinc-flake-coated steel screws are about five times as corrosion resistant as zinc yellow-chromate plated screws and have good resistance to salt water and acids. Also known as ultra coat and armor coat. To maintain corrosion resistance, use these screws with zinc-flake-coated nuts and washers.

See Specifications Tab for more information on this product.

See the Compatibility tab for machines that work with this product.

Specifications

Specifications
Length	5" (127 mm)
System of Measurement	Inch
Head Type	Hex
Drive Style	External Hex
Thread Direction	Right Hand
Thread Size	3/8"-16
Screw Size Decimal Equivalent	0.375"
Thread Type	UNC
Thread Fit	Class 2A
Threading	Partially Threaded
Min. Thread Length	1" (25 mm)
Thread Spacing	Coarse
Head Width	9/16"
Height	15/64"
Fastener Strength	Grade 8
Material	Steel
Finish	Zinc-Flake Coated
Tensile Strength	150
Hardness	Rc 33

Compatibility

Compatibility

This product works with lathes with a 3 Morse taper spindle taper including:

Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
Northern Tool 49656 KLUTCH 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3005 7x12 Mini Lathe (Imperial)
Warco 3004 7x12 Mini Lathe (Metric)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
