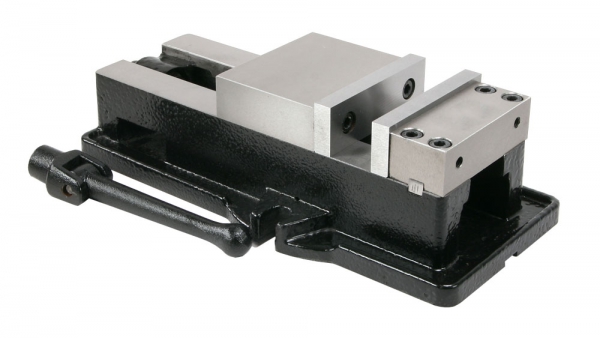

Vise, 4" Precision Milling, Heavy, No Swivel Base
- Precision 4" Kurt-style milling machine vise
- Ground surfaces
- Jaws hardened and ground
- Fixed jaw is bolted for enhanced rigidity
- 30% Downward Locking Force
Part Number: 1879
Weight: 24.6 lb
Weight: 24.6 lb
Price: $149.95
Share this page:
http://lmscnc.com/1879
http://lmscnc.com/1879
4" High quality Kurt-style milling vise. Top, gib, jaws, bottom of vise bed and all plate mounting surfaces are precision ground. The fixed jaw is bolted from the top for enhanced rigidity. The angle tight positive locking style and wide jaw opening allows for holding a large array of workpieces securely. The hardened and ground jaws are made to American standard dimensions (interchangeable with Kurt) and provide a flat and parallel gripping surface that ensures accurate and consistent clamping. The jaws can be mounted on either end of the fixed and movable jaw providing a wide range of clamping distances.
The jaws are 4" wide, 1.27" deep and open 5.5".
The ways of the drill press milling vise are parallel to the base of the vise within 0.0006" in 4". The jaws are perpendicular to the ways within 0.002" in 4".
| Jaw Width | 3.94" (100.0 mm) |
| Jaw Depth | 1.26" (32.0 mm) |
| Maximum Jaw Opening | 5.5" (140 mm) |
| Weight | 24.6 lbs (11.2 kg) |
| Height w/o Base | 3.54" (90.0 mm) |
| Length | 12.8" (325 mm) |
| Width w/o Base | 6.3" (160 mm) |
| Mounting Bolt Centers w/o Base | 5.5" (140 mm) |
| Hold-Down Mechanism | Yes |
| Ways Parallel to Bottom of Vise Within | 0.0006" in 4" (0.015 mm in 100 mm) |
| Jaws Perpendicular to Ways Within | 0.001" in 4" (0.03 mm in 100 mm) |
Compatibility
This product works with these LittleMachineShop.com products:
- 2239 Swivel Base, 4" Precision Milling, Heavy
- 1232 Thin Parallels, 6" Long, 10 Pairs
- 4972 Vise Mounting Kit, 1/2" T-Slot
- 3125 Vise Mounting Kit, 7/16" T-Slot
This product works with the following mills. (If your machine is not on this list, we cannot verify compatibility.)
- SIEG X2.7 Bench Mill
- SIEG X2.7L Bench Mill
- WEN 33075 WEN Bench Mill
- LittleMachineShop.com 5500 HiTorque Bench Mill
- LittleMachineShop.com 6500 HiTorque Bench Mill
- SIEG SX2.7 Bench Mill
- LittleMachineShop.com 6570 HiTorque Bench Mill
- LittleMachineShop.com 6550 HiTorque Bench Mill
- LittleMachineShop.com 5550 HiTorque Bench Mill
- SIEG SX2.7L Bench Mill
- Grizzly G0463 Mill/Drill
- Harbor Freight 93885 Central Machinery Mill/Drill
- SIEG X3 Small Mill
- Woodstock International M1110 Shop Fox Small Mill
- BusyBee CX611 Craftex Small Mill
- Grizzly G0619 Mill/Drill
- SIEG SX3 Small Mill
- Travers Tools OT2225SX3 OTMT Small Mill
- Grizzly G0759 Mill/Drill With Stand
- Grizzly G0704 Mill/Drill With Stand
- Grizzly G3103 Vertical Mill
- Grizzly G3102 Vertical Mill
- Harbor Freight 42976 Central Machinery Mill/Drill
- SIEG X3.5 Large Bench Mill
- LittleMachineShop.com 6700 HiTorque Large Bench Mill
- LittleMachineShop.com 6750 HiTorque Large Bench Mill
- LittleMachineShop.com 6770 HiTorque Large Bench Mill
