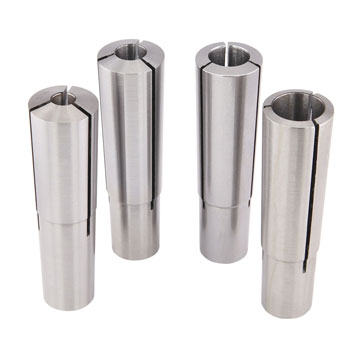

Collet Set, 3MT, Set of 4
- Set of four #3 Morse taper round collets
- 3/8"-16 internal drawbar thread
- Made of high grade tool steel
- Hardened and ground to close tolerance
- Overall length is 3.39" (86 mm)
Part Number: 2023
Weight: 1.70 lb
Weight: 1.70 lb
Price: $49.95
Share this page:
http://lmscnc.com/2023
http://lmscnc.com/2023
Related Products
This set comprises the 4 collets to compliment the LittleMachineShop.com seven piece set (P/N 1615) to round out our full offering of 3MT Collets. Sizes include 5/16", 7/16", 9/16", and 11/16".
3 Morse taper collets fit spindles with a Morse taper.
The collets are made from high-grade tool steel and is precision ground and hardened.
The drawbar thread is 3/8"-16 and the overall length is 3.39" (86 mm).
Chris' TipsYou might need to a make or purchase a drawbar to work with these tools.
| Drawbar End | 3/8"~16 |
| Description | Qty | |
|---|---|---|
|
Collet, 3MT, 11/16", P/N 1861 | 1 |
|
Collet, 3MT, 5/16", P/N 1858 | 1 |
|
Collet, 3MT, 7/16", P/N 1859 | 1 |
|
Collet, 3MT, 9/16", P/N 1860 | 1 |
Compatibility
This product works with these LittleMachineShop.com products:
- 2224 Drawbar, 3MT x 3/8"-16, 7x14 Mini Lathe
- 1873 Drawbar, 3MT x 3/8"-16, Mini Lathe
- 1637 Drawbar, 3MT x 3/8"-16, Mini Mill
This product works with lathes with a 3 Morse taper spindle taper including:
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
- Prazi SD400 7x16 Lathe
- MX-8x14 Preenex (and others) 8x14 Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- Emco Compact 8 8x17 Lathe
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- SIEG C4 8.5x16 Bench Lathe
- SIEG SC4 8.5x16 Bench Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
- LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
- BD-920N Jet 9x20 Lathe
- Grizzly G4000 9x19 Bench Lathe
- Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
- SIEG C6 10x21 Lathe
- Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
- Grizzly G0516 10x21 Lathe Mill Combo
- Prazi SD500 10x20 Lathe
- SIEG M6 10x21 Lathe Mill Combo
This product works with mills with a 3 Morse taper spindle taper including:
- Bolton XJ-9510 Mill/Drill
- Clarke CMD300 Milling Drilling Machine
- Grizzly G8689 Mini Milling Machine
- Hare & Forbes HM-10 Mill/Drill
- Princess Auto 8507667 Powerfist Mini Mill
- SIEG X2-MT3 Mini Mill
- Micro-Mark 82573 MicroLux Milling Machine
- Grizzly G0516 Lathe Mill Combo
- SIEG M6 Multi-purpose Machine
