Lathe Chuck, 4-Jaw 6", Independent

Part Number: 2038
Weight: 22.8 lb

Price: $169.95

Share this page:
http://lmscnc.com/2038

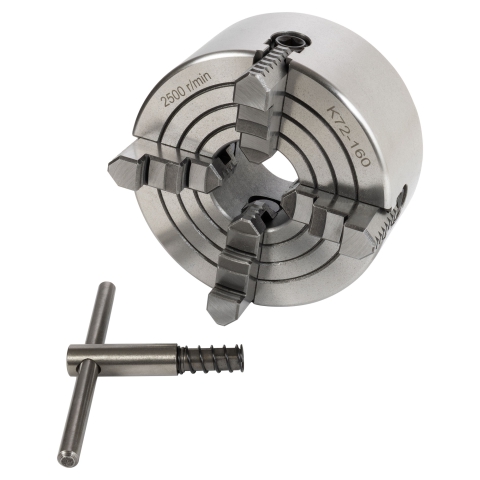

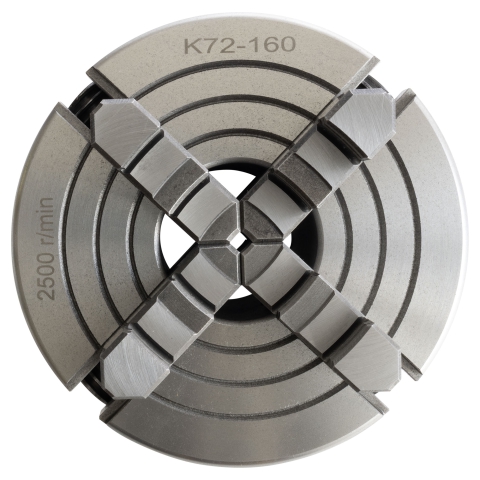

6 inch, 4-Jaw independent lathe chuck.

Each jaw is independently adjustable and reversible.

This chuck has a 1.77" (45.0 mm) through hole. The chuck can hold work up to 6.30" (160 mm) in diameter.

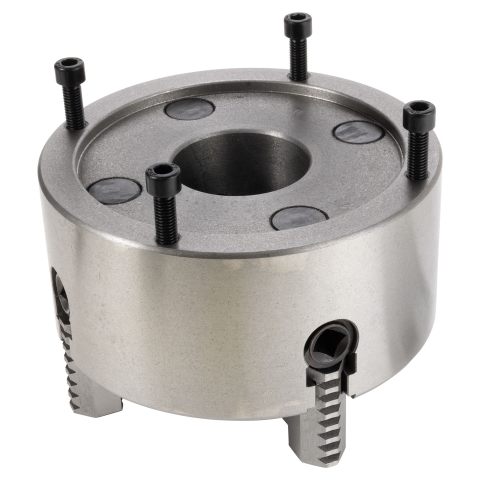

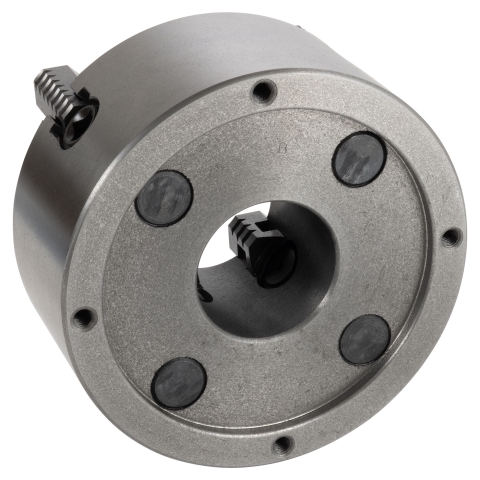

This is a plain back chuck and requires a backplate adapter to mount it.

Chris' Tips
This chuck is too big to fit on a mini lathe.

Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.

Here is a chart that provides lathe chuck capacities and mounting dimensions.

Specifications
Rated Capacity, Inside Jaws	0.31" - 3.15" (8.0 mm - 80.0 mm)
Rated Capacity, Outside Jaws	1.97" - 6.30" (50.0 mm - 160.0 mm)
Diameter, Overall	6.30" (160.0 mm)
Registration Recess Diameter	5.12" (130.0 mm)
Registration Recess Depth	0.20" (5.0 mm)
Bolt Circle Diameter	5.71" (145.0 mm)
Center Hole Diameter	1.77" (45.0 mm)
Height	2.56" (65.0 mm)
Number and Size of Bolts	4 M8
Max RPM	3800 RPM
Chuck Designation	K72-160
