Graduated Dial, X- and Y-Axis, Micro Mill

Graduated dial
X- and Y-axis micro mill
OD: 31 mm
ID: 20 mm
Width: 9 mm

Part Number: 2086
Weight: 0.13 lb

Price: $13.35

Share this page:
http://lmscnc.com/2086

Description

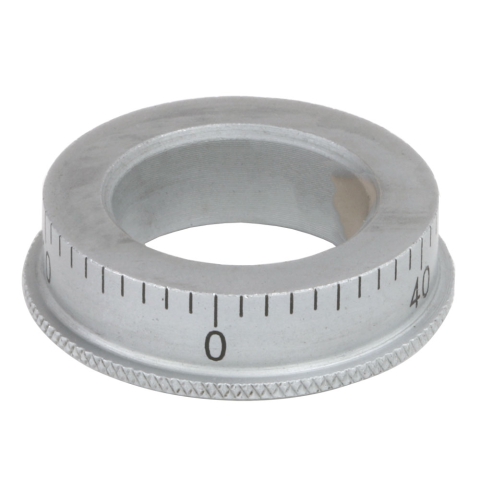

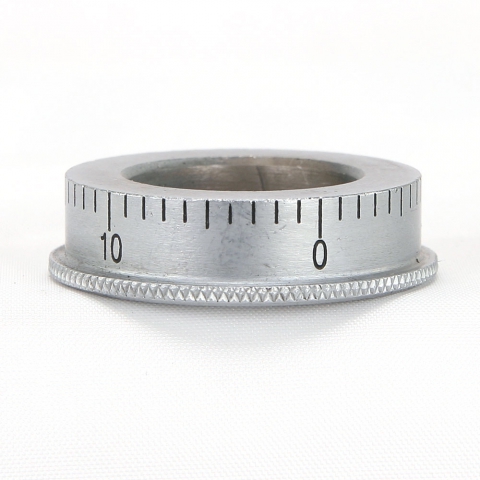

Graduated dial, X- and Y-Axis

The dial is 31 mm OD, 20 mm ID, and 9 mm wide.

Dial has 50 divisions. On the HiTorque Micro Mill, each division of the dial represents a movement of 0.001". Each full turn of the hand wheel moves the table 0.050".

See Used On tab for reference to machines using this part and the corresponding drawing number.

Photos

"Dial

Used On

In your instruction manual, this part appears on the parts list as:

Item No	Models
108	Harbor Freight 47158 Central Machinery Micro Mill Clarke CMD10 Metalworker Micro Mill Various X1-US SIEG Micro Mill
15	LittleMachineShop.com 4660 HiTorque Micro Mill LittleMachineShop.com 4700 HiTorque Micro Mill

Click your model to see the complete parts list.
