Lathe Chuck, 6-Jaw 4", Self-Centering

Part Number: 2276
Weight: 6.40 lb

Price: $259.95

This product is currently backordered.

Estimated availability:
29-Nov-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/2276

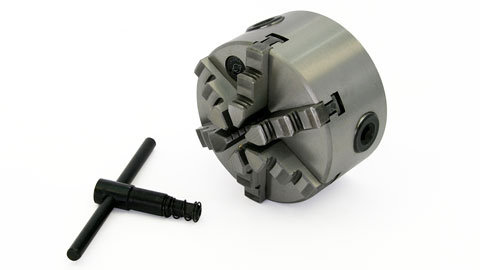

The jaws on this 4" 6-Jaw self-centering lathe chuck are hardened and ground.

Includes chuck key and mounting bolts.

Because the chuck is designed to hold tubing, outside jaws are not included.

This chuck has a 1.02" (26 mm) through hole. The chuck can hold work up to 3.15" (80 mm) in diameter.

The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.

Chris' Tips
Some people want a chuck that can hold larger diameters. 4" chucks work well on the mini lathe, but it is possible to use a 5" chuck on the mini lathe.

Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.

Here is a chart that provides lathe chuck capacities and mounting dimensions.

Specifications
Rated Capacity, Inside Jaws	0.24" - 1.18" (6.0 mm - 30.0 mm)
Rated Capacity, Jamming Range	1.18" - 3.54" (30.0 mm - 90.0 mm)
Rated Capacity, Outside Jaws	1.18" - 3.54" (30.0 mm - 90.0 mm)
Runout (Max)	≤ 0.003" (0.08 mm)
Diameter, Overall	3.94" (100.0 mm)
Registration Recess Diameter	2.83" (72.0 mm)
Registration Recess Depth	0.14" (3.5 mm)
Bolt Circle Diameter	3.31" (84.0 mm)
Center Hole Diameter	1.02" (26.0 mm)
Height	2.13" (54.0 mm)
Jaw Height Above Face	0.79" (20.0 mm)
Height with Jaws	2.91" (74.0 mm)
Number and Size of Bolts	3 M8
Chuck Key	0.31" (8.0 mm)
Chuck Designation	K13-100
