Lathe Chuck, 4-Jaw 5", Independent with Adapter

4-Jaw Lathe Chuck for Sale
5" (125 mm) diameter
Each jaw is independently adjustable and reversible
Includes an adapter to mount on a 3" (80 mm) flange
Plain back mounting

Part Number: 2346
Weight: 14.0 lb

Price: $159.95

This product is currently backordered.

Estimated availability:
31-Dec-2022
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/2346

Description

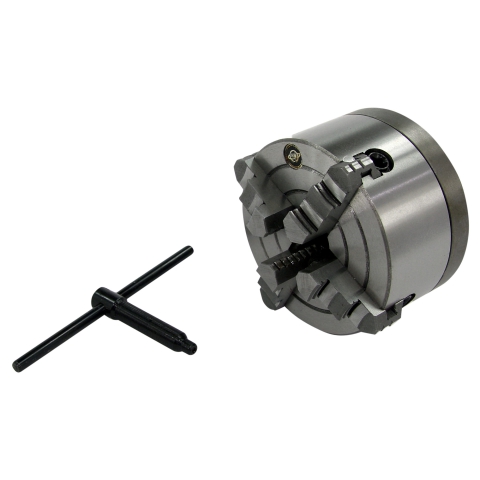

5 inch, 4-Jaw independent lathe chuck with adapter for the mini lathe.

Each jaw is independently adjustable and reversible.

The through bore of this chuck is 30 mm (1.18").

The chuck can hold work up to 125 mm (4.92") in diameter.

This mini lathe chuck comes with an adapter for the mini lathe so that you can bolt it on in place of a 3" (80 mm) chuck.

Chris' Tips

Chris' Tips
Some people want a chuck that can hold larger diameters. 4" chucks work well on the mini lathe, but it is possible to use a 5" chuck on the mini lathe.

This chuck is a bolt-on accessory with the adapter that is included. All 4" and larger chucks require an adapter to fit on the mini lathe, no matter how many holes there are in the spindle.

Don't forget to get a set of studs and nuts to mount it.

Here are instructions for centering work in a 4-jaw chuck. It's easy if you follow this procedure.

Here is a chart that provides lathe chuck capacities and mounting dimensions.

Specifications

Specifications
Rated Capacity, Inside Jaws	0.28" - 2.24" (7.0 mm - 57.0 mm)
Rated Capacity, Outside Jaws	1.89" - 4.92" (48.0 mm - 125.0 mm)
Diameter, Overall	4.92" (125.0 mm)
Registration Recess Diameter	3.74" (95.0 mm)
Registration Recess Depth	0.18" (4.5 mm)
Bolt Circle Diameter	4.25" (108.0 mm)
Center Hole Diameter	1.18" (30.0 mm)
Height	2.20" (56.0 mm)
Jaw Height Above Face	0.83" (21.0 mm)
Height with Jaws	2.64" (67.0 mm)
Number and Size of Bolts	4 M8
Chuck Key	0.274" (6.95 mm)
Chuck Designation	K72-125

Contents

This product contains the following items:
	Description	Qty
	Adapter, 5" Lathe Chuck, P/N 2347	1
	Lathe Chuck, 4-Jaw 5", Independent, P/N 2338	1

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

1222 Studs & Nuts, M6

This product works with lathes with a 80 mm flange chuck mount including:

Grizzly M1015 Shop Fox 6x10 Micro Lathe
Micro-Mark 85181 MicroLux 6x10 Micro Lathe
SIEG C1 6x10 Micro Lathe
Woodstock International M1015 Shop Fox 6x10 Micro Lathe
Enco 110-0803 Enco 7x10 Mini Lathe
Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
MSC 0192857 Enco 7x10 Mini Lathe
Bolton CQ9318 7x12 Mini Lathe
Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
Cummins (Tools Now) 5278 7x12 Mini Lathe
Eastwood 32497 7x12 Mini Lathe
Grizzly G8688 7x12 Mini Metal Lathe
Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
Princess Auto 8507659 Powerfist 7x12 Mini Lathe
SIEG C2 7x12 Mini Lathe
Tormach 30689 7x12 Duality Lathe
Travers Tools OT222300 OTMT 7x12 Mini Lathe
Warco 3004 7x12 Mini Lathe (Metric)
Warco 3005 7x12 Mini Lathe (Imperial)
WEN 3455 WEN 7x12 Mini Lathe
Micro-Mark 82500 MicroLux 7x12 Mini Lathe
LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
SIEG SC2 7x12 Mini Lathe
Micro-Mark 82710 MicroLux 7x14 Mini Lathe
LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
SIEG C3 7x14 Mini Lathe
Warco 4820-350 7x14 Mini Lathe (Metric)
Warco 4800-350 7x14 Mini Lathe (Imperial)
Grizzly G0765 7x14 Mini Lathe
Micro-Mark 84631 MicroLux 7x16 Mini Lathe
