3C Collet Closer - Long
- 3C Collet Closter for Mini Lathes
- Includes 3 Morse Taper to 3C Collet Adapter
- Includes Drawtube Assembly
Part Number: 2374
Weight: 1.10 lb
Weight: 1.10 lb
Price: $99.95
Share this page:
https://littlemachineshop.com/2374
https://littlemachineshop.com/2374

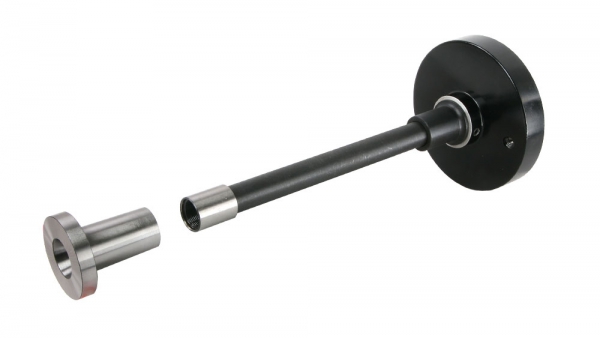

This set includes a 3 Morse taper to 3C collet adapter and a drawtube assembly. The drawtube assembly is cut for longer spindles (4" plus) but can be cut down to size.
The adapter is precision ground to minimize runout.
Drawtube is 3/4" in diameter and allows 7/16" material to pass through.
*Ships from factory without a handwheel handle. See related products for handle parts.
Compatibility
This product works with the following lathes. (If your machine is not on this list, we cannot verify compatibility.)
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Grizzly G0765 7x14 Mini Lathe
