Adapter, 4" Lathe Chuck

Adapter, 4" Lathe Chuck
  • Compatible with 4" 3-Jaw Lathe Chuck on Mini Lathes
  • Use with Chucks with a 70 mm Registration Recess Diameter
  • Works on Spindles with Only 3 Holes
  • Fits Bison 4" 3-Jaw chucks
Part Number: 2426
Weight: 2.05 lb

Price: $21.63

This product is currently backordered.

Estimated availability:
31-Jan-2022
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

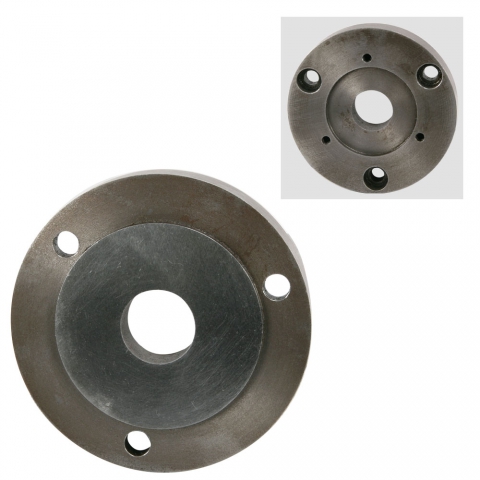

This adapter lets you mount a 4" 3-jaw lathe chuck on your mini lathe.

Use this adapter with chucks that have a 70 mm registration recess diameter such as Bison 4" 3-Jaw chucks.

The adapter mounts to the 3-hole pattern on the spindle so it works on spindles with only three holes.

Specifications
Outside Diameter Ø 3.9" (100 mm)
Center Hole Ø 1.0" (25 mm)
Spindle Side Registration Recess Ø 2.2" (55 mm)
Spindle Side Bold Circle Ø 2.6" (66 mm)
Chuck Side Registration Boss Ø 2.8" (70 mm)
Chuck Side Bolt Circle Ø 3.3" (83 mm)
Chuck Mounting Holes 6

Compatibility

This product works with these LittleMachineShop.com products:

This product works with lathes with a 80 mm flange chuck mount including:

  •   Grizzly M1015 Shop Fox 6x10 Micro Lathe
  •   Micro-Mark 85181 MicroLux 6x10 Micro Lathe
  •   SIEG C1 6x10 Micro Lathe
  •   Woodstock International M1015 Shop Fox 6x10 Micro Lathe
  •   Enco 110-0803 Enco 7x10 Mini Lathe
  •   Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
  •   Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
  •   MSC 0192857 Enco 7x10 Mini Lathe
  •   Bolton CQ9318 7x12 Mini Lathe
  •   Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  •   Cummins (Tools Now) 5278 7x12 Mini Lathe
  •   Eastwood 32497 7x12 Mini Lathe
  •   Grizzly G8688 7x12 Mini Metal Lathe
  •   Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  •   Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  •   Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  •   Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  •   SIEG C2 7x12 Mini Lathe
  •   Tormach 30689 7x12 Duality Lathe
  •   Travers Tools OT222300 OTMT 7x12 Mini Lathe
  •   Warco 3004 7x12 Mini Lathe (Metric)
  •   Warco 3005 7x12 Mini Lathe (Imperial)
  •   WEN 3455 WEN 7x12 Mini Lathe
  •   Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  •   LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  •   LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  •   SIEG SC2 7x12 Mini Lathe
  •   Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  •   LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  •   SIEG C3 7x14 Mini Lathe
  •   Warco 4820-350 7x14 Mini Lathe (Metric)
  •   Warco 4800-350 7x14 Mini Lathe (Imperial)
  •   Grizzly G0765 7x14 Mini Lathe
  •   Micro-Mark 84631 MicroLux 7x16 Mini Lathe
