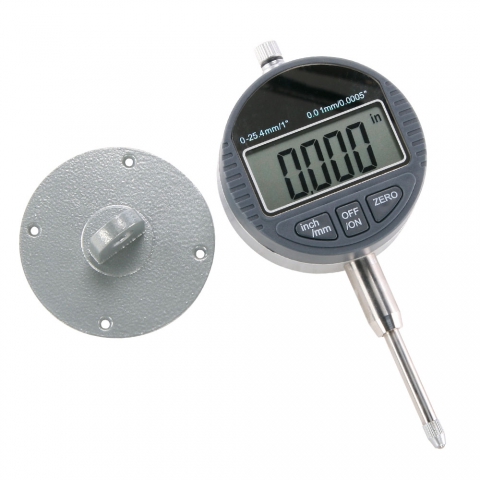

Electronic Digital Indicator, 1"

Measurement range is 0-1"
Resolution is 0.0005", accuracy is 0.0012"
Measures in inches or mm
Set to zero at any position
Relative and absolute measurement

Part Number: 2521
Weight: 0.53 lb

Price: $59.95

Share this page:
http://lmscnc.com/2521

This is an AGD Group 2 indicator with a 0.375" diameter shank and a #4-48 thread for tips.

There are three buttons; ON/OFF for power, RESET to zero the display, and R/A to switch between absolute and relative measurement.

Pressing R/A zeros the indicator at any position so you can make comparative readings between two parts. The absolute measurement is not lost, and is displayed by pressing R/A again.

Chris' Tips

Chris' Tips
AGD Groups define the size of the indicator.

AGD Group	Face Diameter
0	1.00 - 1.38"	25 - 35 mm
1	1.38 - 2.00"	35 - 50 mm
2	2.00 - 2.38"	50 - 60 mm
3	2.38 - 3.00"	60 - 75 mm
4	3.00 - 3.75"	75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Specifications

Specifications
Range	0" - 1" (0 mm - 25 mm)
Resolution	0.0005" (0.013 mm)
A.G.D. Group	2
Face Diameter	2.23" (56.6 mm)
Shank Size	0.375" (9.52 mm)
Thread Tip	#4-48
Accuracy	0.001" (0.03 mm)
Type	Flat Back
Dial Face	Digital in/mm

Photos

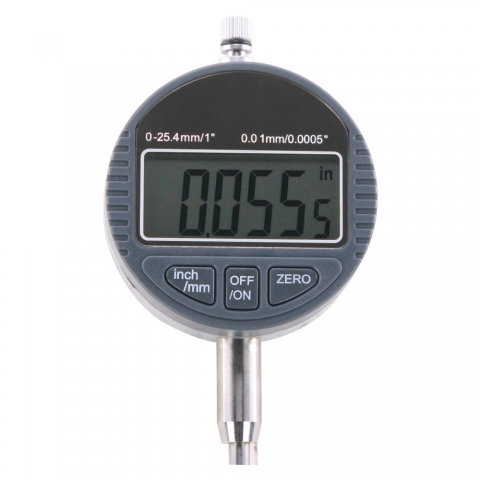

Indicator Face

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:
