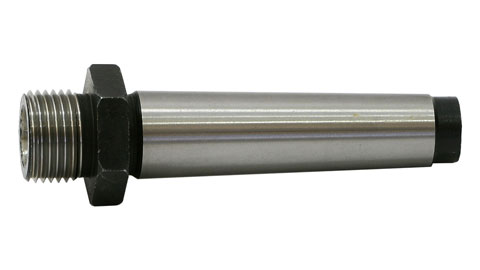

Collet Chuck, Taig Collet, 2MT, Sherline and Taig Tooling

3/4-16 Threaded end fits Sherline and Taig chucks and tooling
2MT drawbar shank with 3/8-16 drawbar thread
Fits Taig collets and collet nut

Part Number: 2663
Weight: 0.29 lb

Price: $29.95

This product is currently backordered.

Estimated availability:
29-Jan-2024
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/2663

Description
Compatibility

Description

2 Morse Taper abor with a 3/8-16 drawbar thread. The chuck threading is 3/4-16 and designed to fit Sherline and Taig chucks and tooling. Also fits Taig collets and collet nuts.

Note: For Sherline tooling a 1/8" thick flat washer must be used between the tool and arbor.

Compatibility

Compatibility

This product works with lathes with a 2 Morse taper spindle taper including:

Grizzly M1015 Shop Fox 6x10 Micro Lathe
Micro-Mark 85181 MicroLux 6x10 Micro Lathe
SIEG C1 6x10 Micro Lathe
Woodstock International M1015 Shop Fox 6x10 Micro Lathe
Emco Compact 5 5x14 Lathe
Prazi SD300 5x12 Lathe
Craftsman & Atlas 612 6x18 Lathe

This product works with mills with a 2 Morse taper spindle taper including:

Prazi BF400 Mill
Prazi BF450 Mill
Clarke CMD10 Metalworker Micro Mill
Harbor Freight 47158 Central Machinery Micro Mill
SIEG X1 Micro Mill
SIEG SX1 Micro Mill
LittleMachineShop.com 4700 HiTorque Micro Mill
SIEG SX1P Micro Mill
Harbor Freight 42976 Central Machinery Mill/Drill
