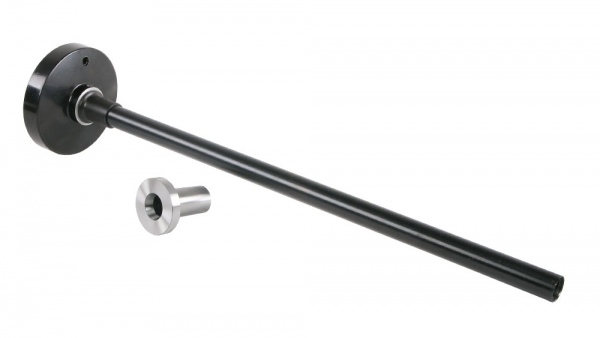

Collet Closer, Universal
- 3C collet closer for 3MT spindle lathes
- Includes a 3 Morse taper to 3C collet adapter and a drawtube assembly
- Adapter is precision ground to minimize runout
- Drawtube is 18" long 3/4" diameter. Cut to fit most lathes with a 3 Morse taper spindle
- Great fit for all HiTorque Lathes.
Part Number: 2728
Weight: 1.90 lb
Weight: 1.90 lb
Price: $129.95
This product is currently backordered.
Estimated availability:
16-Feb-2023
What is "estimated availability"?
Click this button if you want to receive an email notification when this product becomes available.
Share this page:
http://lmscnc.com/2728
http://lmscnc.com/2728
3C collet closer for universally fits most lathes with a 3MT spindle.
This lathe collet closer set includes a 3 Morse taper to 3C collet adapter and a drawtube assembly.
The adapter is precision ground to minimize runout.
Drawtube allows 7/16" material to pass through.
Drawtube is 18" long and 3/4" in diamater and fits most 3 Morse taper headstocks--cut it to fit your lathe.
*Ships from factory without a handwheel handle. See related products for handle parts.
Chris' TipsCompatibility
This product works with lathes with a 3 Morse taper spindle taper including:
- Enco 110-0803 Enco 7x10 Mini Lathe
- Harbor Freight 93212 Central Machinery 7x10 Mini Lathe
- Harbor Freight 33684 Central Machinery 7x10 Mini Lathe
- MSC 0192857 Enco 7x10 Mini Lathe
- Bolton CQ9318 7x12 Mini Lathe
- Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
- Cummins (Tools Now) 5278 7x12 Mini Lathe
- Eastwood 32497 7x12 Mini Lathe
- Grizzly G8688 7x12 Mini Metal Lathe
- Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
- Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
- LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
- LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
- Northern Tool 49656 KLUTCH 7x12 Mini Lathe
- Princess Auto 8507659 Powerfist 7x12 Mini Lathe
- SIEG C2 7x12 Mini Lathe
- Tormach 30689 7x12 Duality Lathe
- Travers Tools OT222300 OTMT 7x12 Mini Lathe
- Warco 3004 7x12 Mini Lathe (Metric)
- Warco 3005 7x12 Mini Lathe (Imperial)
- WEN 3455 WEN 7x12 Mini Lathe
- Micro-Mark 82500 MicroLux 7x12 Mini Lathe
- LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
- LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
- SIEG SC2 7x12 Mini Lathe
- Micro-Mark 82710 MicroLux 7x14 Mini Lathe
- LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
- SIEG C3 7x14 Mini Lathe
- Big Dog BD-0618Ax300 7x14 Mini Lathe
- Big Dog BD-0618x300 7x14 Mini Lathe
- Warco 4820-350 7x14 Mini Lathe (Metric)
- Warco 4800-350 7x14 Mini Lathe (Imperial)
- Grizzly G0765 7x14 Mini Lathe
- Micro-Mark 84631 MicroLux 7x16 Mini Lathe
- LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
- LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
- MX-8x14 Preenex (and others) 8x14 Lathe
- Harbor Freight 44859 Central Machinery 8x12 Precision Mini Lathe
- Grizzly G0768 8x16 Benchtop Lathe
- LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
- SIEG SC4 8.5x16 Bench Lathe
- SIEG C4 8.5x16 Bench Lathe
- Travers Tools OT218410 OTMT 8x16 Bench Lathe
- LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
- LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
- LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
- BD-920N Jet 9x20 Lathe
- Grizzly G4000 9x19 Bench Lathe
- Harbor Freight 45861 Central Machinery 9x20 Bench Lathe
- SIEG C6 10x21 Lathe
- Busy Bee Tools CX705 Craftex 10x21 Lathe Mill Combo
- Grizzly G0516 10x21 Lathe Mill Combo
- SIEG M6 10x21 Lathe Mill Combo
