Milling Attachment, C6 Lathe

Milling attachment for 10x21 lathe
Fits SIEG C6 class of lathes
Includes mounting bracket
Graduated in 0.025 mm (approximately 0.001")
60 divisions, advance is 1.5 mm (0.059") per revolution.

Part Number: 2894
Weight: 13.5 lb

Price: $265.48

This product is currently backordered.

Estimated availability:
31-Jul-2022
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/2894

Description

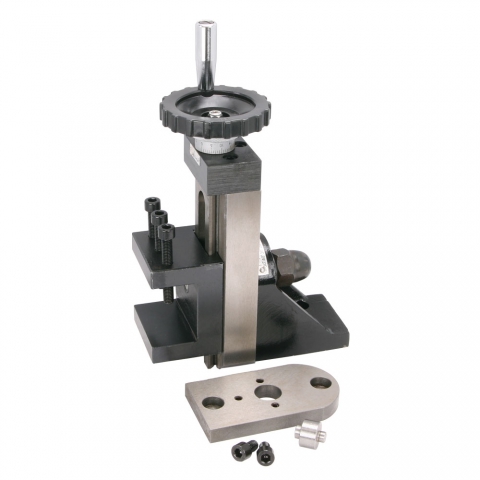

Milling attachment for the SIEG C6 10x21 class of lathes.

This milling attachment includes the mounting bracket required to mount it on a SIEG C6 lathe.

The vise opening is 1.9". The width of the vise is 2.6" and the depth is 1.4".

The travel is 3.6". The dial is graduated in 0.025 mm (approximately 0.001") and there are 60 divisions, so the advance is 1.5 mm (0.059") per revolution.

See compatibility tab for reference to machines or other related products that use this product. See Used On tab for reference to machines using this part and the corresponding drawing number.

Chris' Tips

Chris' Tips
To use the milling attachment, you will need an end mill holder, a drawbar, and some end mills. See the compatibility box below for suggestions.

Here's a picture of the milling attachment on a mini lathe.

Compatibility

Compatibility

This product works with these LittleMachineShop.com products:

This product works with the following lathes. (If your machine is not on this list, check with us before ordering.)

SIEG C6 10x21 Lathe
