Lathe Chuck, 3-Jaw 2", Self-Centering

Part Number: 2916
Weight: 0.73 lb

Price: $75.95

This product is currently backordered.

Estimated availability:
19-Jun-2023
What is "estimated availability"?

Click this button if you want to receive an email notification when this product becomes available.

Share this page:
http://lmscnc.com/2916

This 2-inch 3-jaw self-centering lathe chuck fits Unimat 3 and Unimat 4 lathes.

This chuck has a M14x1 threaded through hole (approximately 13 mm). It holds work up to 1.30" (33 mm) in diameter.

This chuck requires a 15 mm OD x 14 mm ID bushing to mount on a Unimat 3 or 4.

Fits the SIEG C0 lathe.

Specifications
Rated Capacity, Inside Jaws	0.08" - 0.55" (2.0 mm - 14.0 mm)
Rated Capacity, Outside Jaws	0.98" - 1.30" (25.0 mm - 33.0 mm)
Diameter, Overall	1.97" (50.0 mm)
Registration Recess Diameter	0.59" (15.0 mm)
Center Hole Diameter	0.5" (13 mm)
Height	0.9" (23 mm)
Jaw Height Above Face	0.5" (12 mm)
Height with Jaws	1.4" (35 mm)

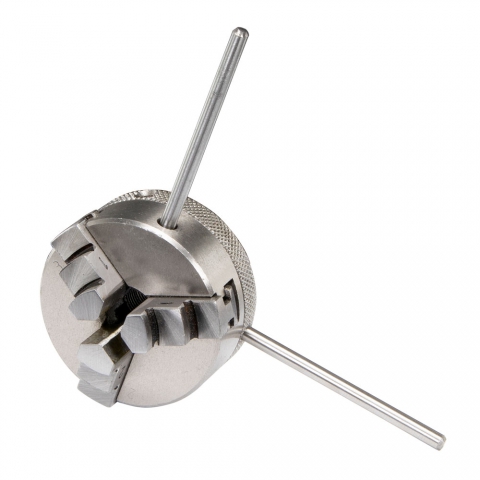

	Adjustment Rods Mounted

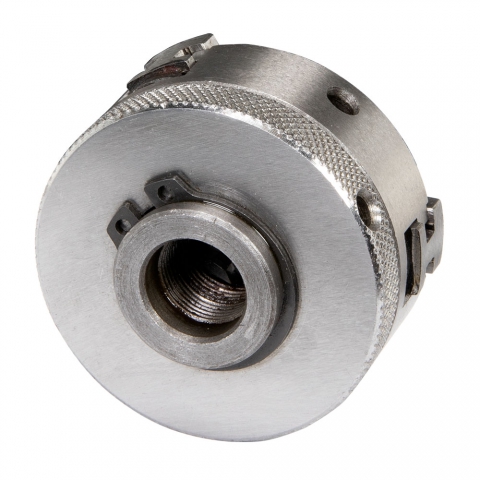

	Back View
